RC Drone Spare Parts, RC Airplane Parts, RC Helicopter Parts, VTX, Digital Video Transmission
Material
Metal, Plastic
Age Range
14 Years & up
Use
Vehicles & Remote Control Toys
Gender
Unisex
Brand Name
OMPhobby
Model Number
EDGE-T3
Place of Origin
Guangdong, China
Communication Frequency
5.18-5.24GHz, 5.745-5.825GHz
Packaging and delivery
Selling Units
Single item
Package size per batch
21.0X12.0X10.0 cm
Gross weight per batch
0.200 kg
Product descriptions from the supplier
Features

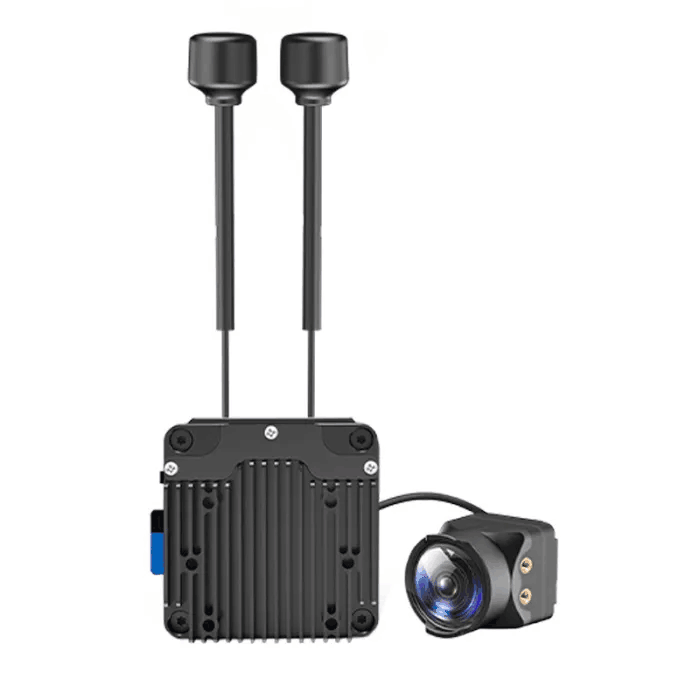

Image Transmission Module (VTX) Model：T3 VTX Product Name：T3 Digital HD Image Transmission (Air Unit) Communication Frequency：5.18-5.24GHz, 5.745-5.825GHz Transmit Power (EIRP)：FCC≤30 dBm, CE<14dBm; SRRC<20dBm Interface：SH1.0-4P, SH1.0-6P, SH1.0-8P Mounting Hole Spacing：2×25.5 / 4×20mm Dimensions：36×36×11.8mm External Storage：Support microSD card (16-256GB) Recording Specifications：1080p@60fps Weight：25g (including heat sink) Operating Temperature：0°C to +50°C Available Frequency Points：9 Voltage Input Range：6-28V DC Supported Flight Control Systems：ArduPilot, Betaflight, iNav Camera Module Model：T3 Camera Module Image Sensor：1/2.8-inch 2MP 16:9 sensor Resolution：1080P/60FPS Aspect Ratio：16:9 Lens (Standard)：2.9mm HD120 Aperture：F1.4 FOV：120° Lens (Optional)：2.2mm HD155 Aperture：F1.9 FOV：155° Shutter Type：Rolling Shutter Weight：13g Dimensions：20×20×30mm / 20×20×25mm Coaxial Cable Length：130mm Antenna Name：Omnidirectional Antenna Polarization Direction：Left-hand Circular Polarization (LHCP) Working Bandwidth：5500-6000 MHz Input Impedance：50 Ω VSWR：≤1.5 Interface Type：IPEX-1 Dimensions：15×122 mm Weight：2.5 g (single) Image Transmission Module (VRX) Model：T3 VRX Product Name：T3 Digital HD Image Transmission (VRX) Communication Frequency：5.18-5.24GHz, 5.745-5.825GHz Transmit Power (EIRP)：FCC≤30 dBm, CE<14dBm; SRRC<20dBm Available Frequency Points：9 Interface：SH1.0-4P, SH1.0-6P Type-C：Video Output 1080P/60FPS Fixed Hole Spacing：15mm (M2×2) Dimensions：82×26×68mm Built-in Battery：5000mAh, 3.7V Lion Weight：142 g (without antenna) Operating Temperature：0°C to +50°C Max Charging Power：20W Max Discharge Power：20W Antenna Name：Directional Antenna Polarization Direction：Left-hand Circular Polarization (LHCP) Operating Bandwidth：5000-6000 MHz Input Impedance：50 Ω Standing Wave Ratio：≤1.5 Interface Type：RPSMA Dimensions：102×53×27 mm Weight：30.5 g
Product Description

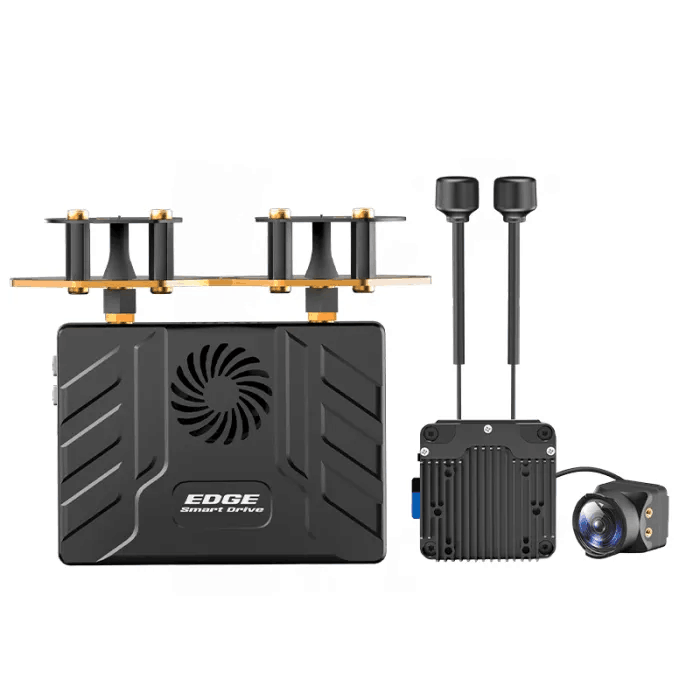

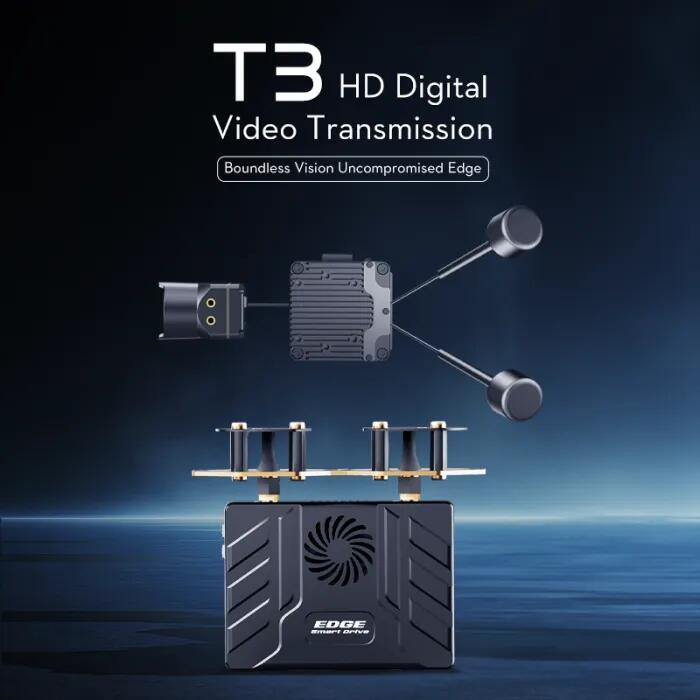

EDGE T3 - HD Digital Video Transmission
