Description

Key attributes

Commutation

Brushless

Rated voltage

12S/42-52V

Rated Power

3600W/Continuous 180s

Speed Rpm

Max. 8075 rpm

Speed(RPM)

Max. 8075 rpm

Efficiency

IE 4

Type

Brushless Motor

Construction

Permanent Magnet

Frame

63mm

Motor Mounting Type

Combination Mounting

Protect Feature

Waterproof

Usage

Fixed wing, Airplane, VTOL DRONE

Warranty

3 months ~ 1 year

Continuous Current(A)

Idle Current (18V): 3.0A

Model Number

AT5330-A

Brand Name

T-MOTOR

Place of Origin

Jiangxi, China

Rated Voltage(Lipo)

12S/42-52V

Size

60*107.3mm

Weight

900g

Lead (mm)

Enameled Wire 100

Shaft diameter

IN:10mm OUT :8mm

Configuration

12N14P

Peak Current(180s)

75A

Certification

CE ROHS FCC ISO

Customized

Support Customization

Typical Applications

Fixed wing, Airplane, VTOL DRONE

Packaging and delivery

Selling Units

Single item

Package size per batch

19X11X8 cm

Gross weight per batch

0.900 kg

Product descriptions from the supplier

Product Description

Note:

We are the Official & Factory Supplier.OEM & ODM are workable.

Pls feel free to contact us for discount price or wholesales order.

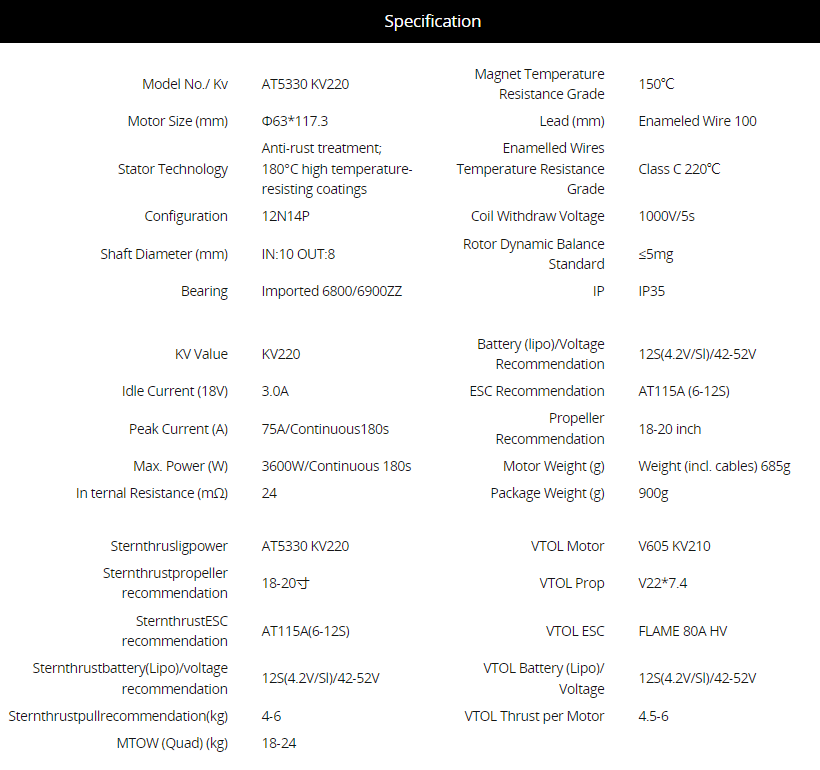

AT5330-A KV220		IN：17mm
Motor Size(mm)	Φ63*117.3
Lead	Enameled Wire100mm
Shaft Diameter	IN：10mm OUT：8mm
Idle Current (18V)	3.0A
Max. Power(180s)	3600W
Weight (Incl. Cable)	900g
IP	IP35
Configuration	12N14P
Rated Voltage(Lipo)	12S /42-52V
Peak Current(180s)	75A

AT5330A Highlights:

1. Robust body &release freely
2. Military-grade wire & more durable
3. Anti-stripping design safety assurance
4. High torque and more durable

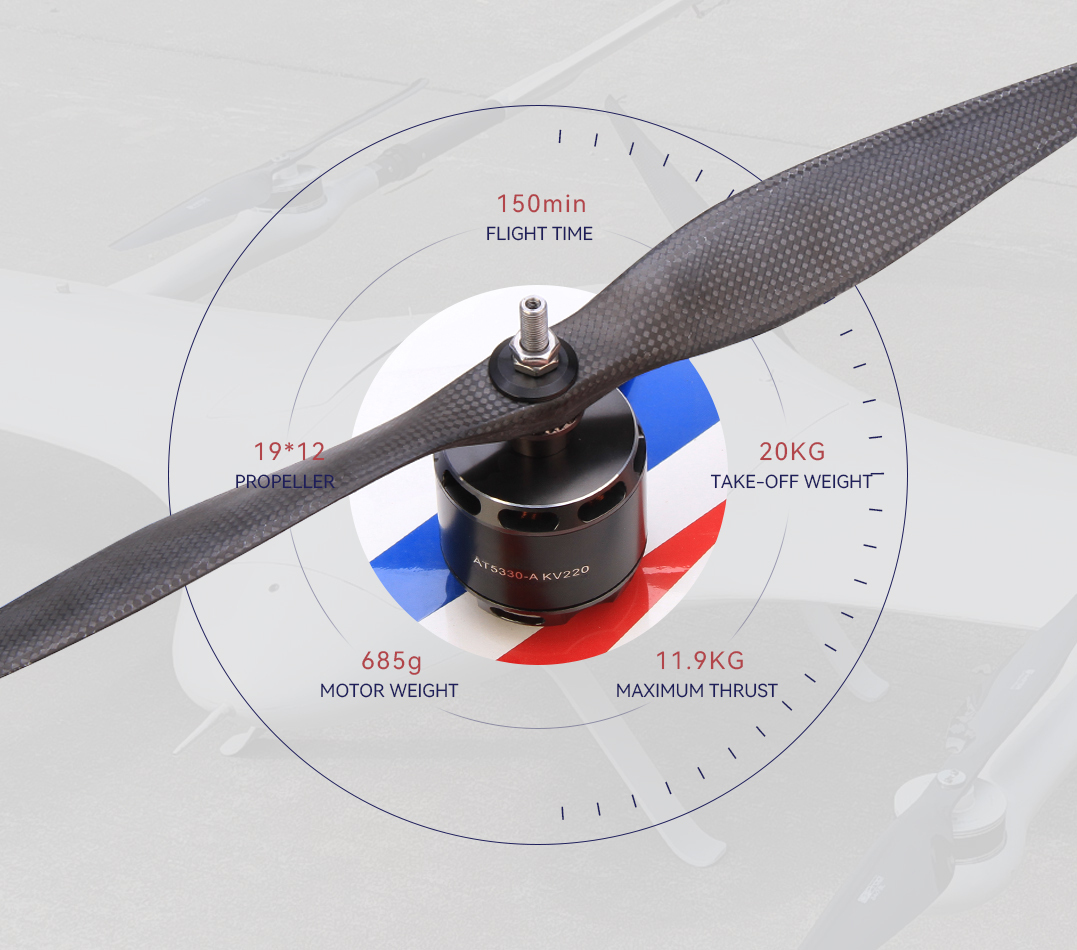

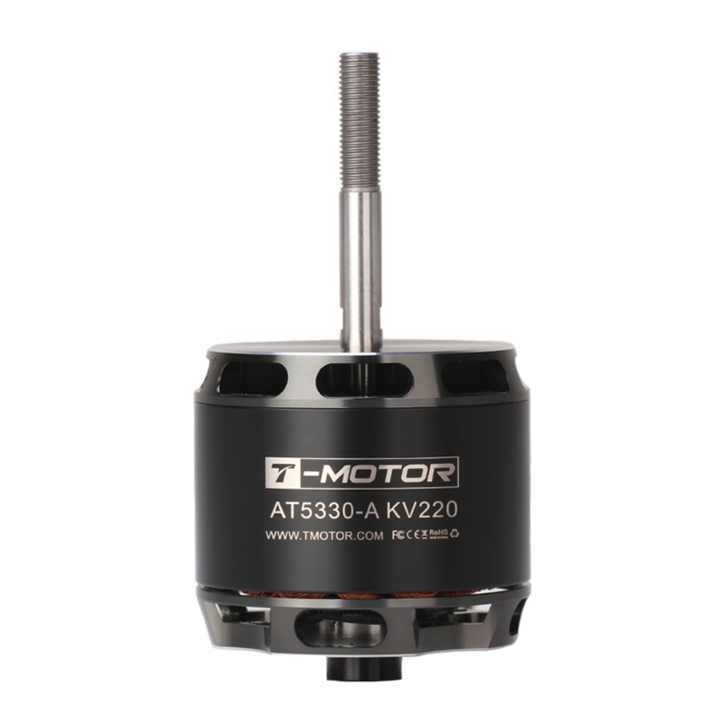

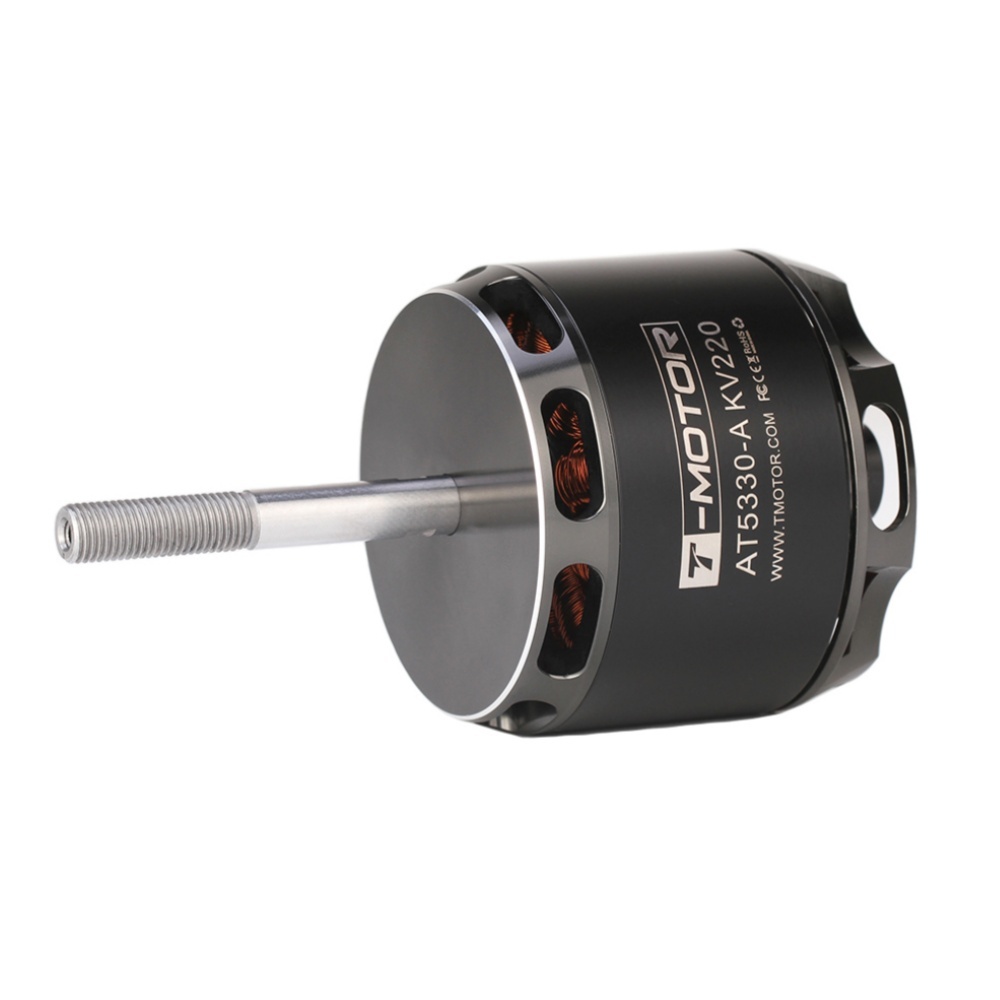

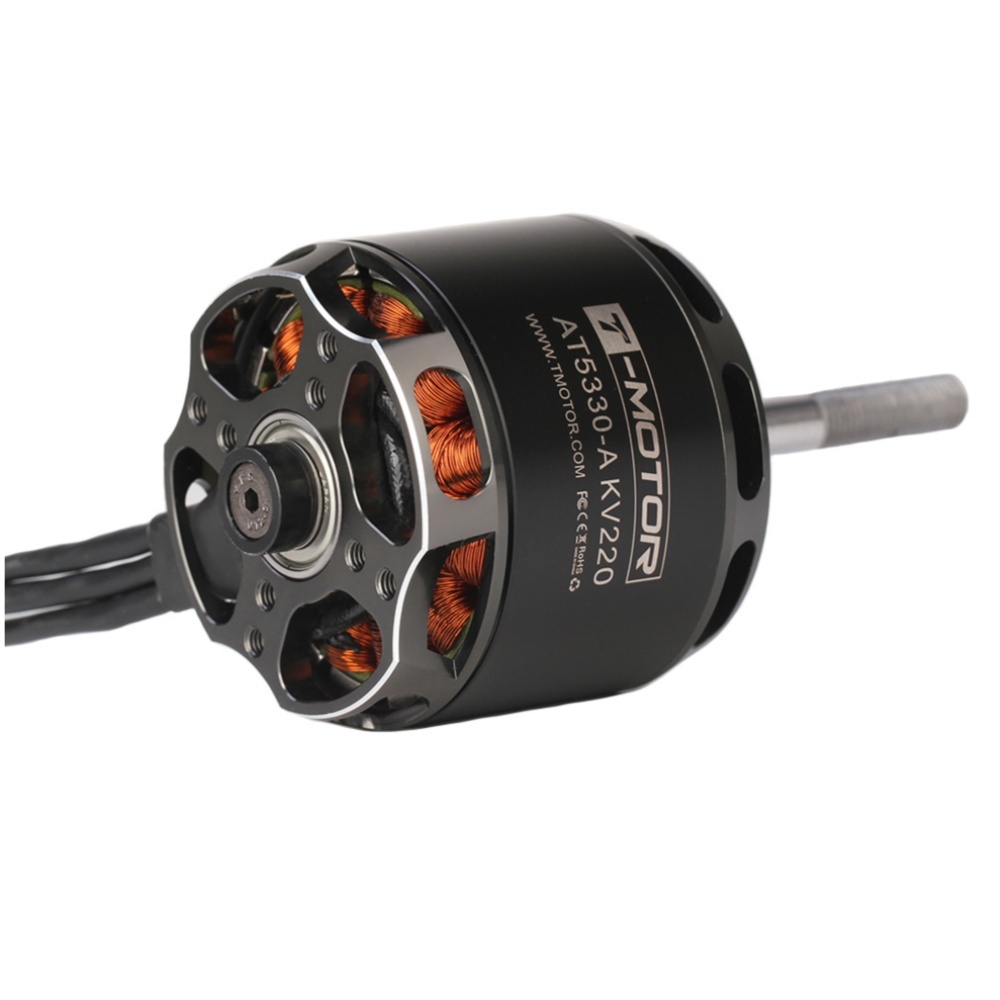

About T-MOTOR AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor

T-MOTOR AT5330A is a hi-end motor suitable for VTOL UAV fixed wing larger airplanes of the Outdoor category.
features with excellent heat dissipation structure which ensures the powerful flight. 3500W maximum power which give strong power for 30CC RC airplane.
It is support 6-12s lipos with T-MOTOR AT115A.

Company Profile

Our Factory

T-MOTOR, set up in 2004, a leading international trading company, specializing in designing and producing high-performance brushless motors, electronic speed controllers (ESCs), propellers, and integrated propulsion packages for multi-rotor, fixed-wing, and vertical take-off and landing (VTOL) drones, with over 20+ Manufacturer Experience/ 300+ Authorized Patents/1600+ Employees/100% Full lnspection.

Exhibitions & Customers

"With an extensive exhibition portfolio across 50+ international trade shows annually, we demonstrate unparalleled industry capabilities."

Manufacturing Technique

Production Line

T-MOTOR, As a globally recognized leader in UAV propulsion systems, integrating cutting-edge R&D, precision manufacturing, andagile distribution to deliver mission-critical power solutions for unmanned aerial vehicles. Our company have over 30+ production line for uav drone motors, propeller, and ESC, over 1600+ empolyees, guarantee the fastest delivery time and the highest product quality.

Automated Production Equipment

Our factory is equipped with cutting-edge manufacturing systems designed for precision, efficiency, and scalability. Automated Production Lines, IoT-Enabled Machinery, CNC Machining Centers, Smart Manufacturing Integration, Energy-Efficient Technologies, Modular Design Flexibility. Welcome to visit our factory anytime.

High-End Test Euipments

Advanced High-End Testing Equipment for Drone Component Production. Our cutting-edge testing systems redefine precision and reliability in drone accessory manufacturing. Engineered with industry-leading technologies, these high-performance solutions ensure rigorous quality validation for critical components, including propulsion systems, flight controllers, batteries, and sensors. Certified to AS9100D and ISO 17804 standards, our systems are the benchmark for aerospace-grade quality assurance. Trusted by Tier 1 OEMs, these solutions accelerate throughput while eliminating costly recalls. Elevate Your Production Line with Uncompromising Excellence.

Our Warehouse

"Never worry about supply - our expansive warehouse is always fully stocked"

* "50,000-square-foot warehouse with 98% inventory fulfillment rate"
* "Over 1 million SKUs stored in our state-of-the-art distribution center"

Certifications

Our Certificates

"Certified Excellence" – Proven by industry-leading credentials. "Globally Recognized Certifications" – Our adherence to strict standards is validated by [list key certificates], meeting global market requirements.

Package & Payment Terms

In general, we will ship by DHL/UPS express(3 to 7 working days). You can also contact us if you have your own forwarder.

FAQ

Q: Are you factory supplier?

A: Yes, we are factory supplier with over 20 years experience, welcome to our factory anytime.

Q: What's the delivery time for my order?
A: In general, all our products are in stock, we will arrange shipment within 1 to 3 working days after payment by DHL or UPS Express(3 to 7 working days).

Q: What payment terms are available?
A: TT/Paypal/Credit Card

Q: What's your product warranty time?
A: One year free return if product problems.

Q:Do you accept custom service?
A: Yes, of course. Leave me message or contact me online if you have any requirements.

T-MOTOR AT5330A KV220 25-30CC Brushless Bldc Dc Permanent Magnet Fixed Wing UAV Drone Motor
