Description

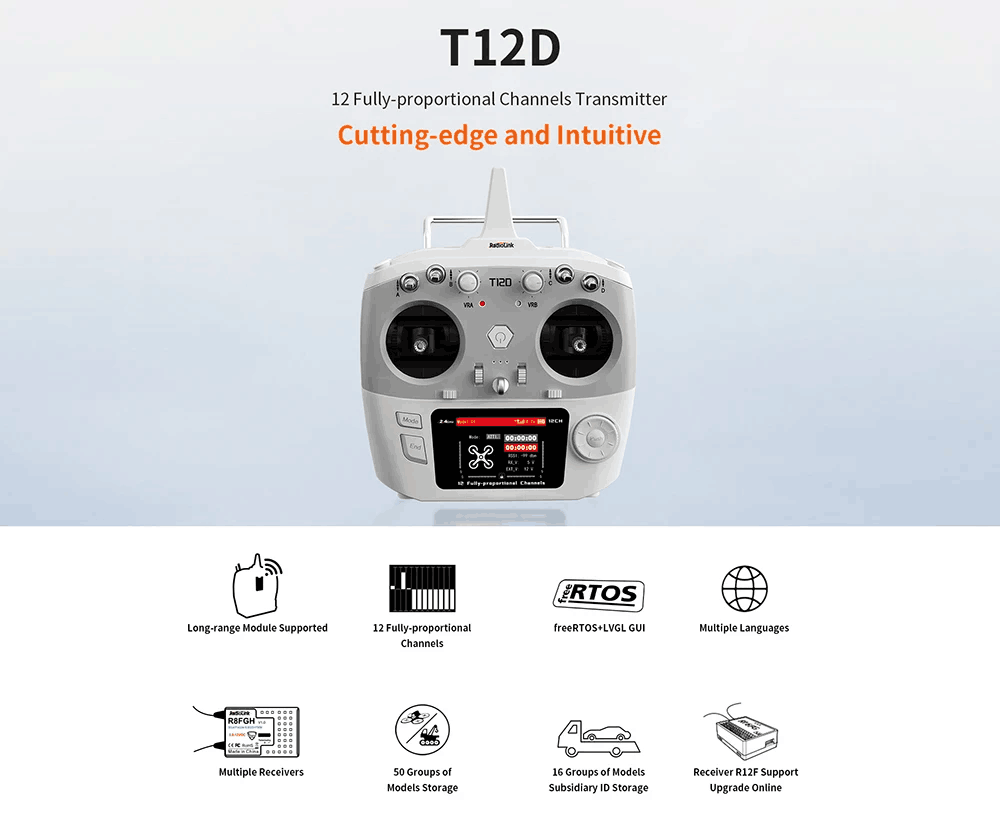

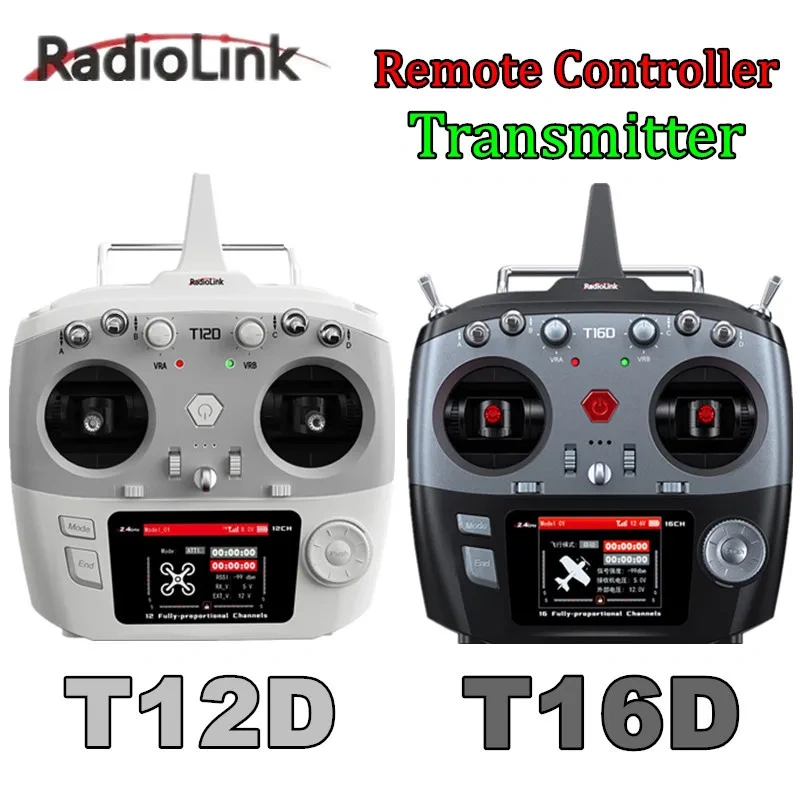

RadioLink T12D 12 Channels RC Transmitter 2.4GHz with R12F Receiver Dual Stick Remote Controller for FPV Drone Fixed Wing Airplane Car Boat Robot
Features:

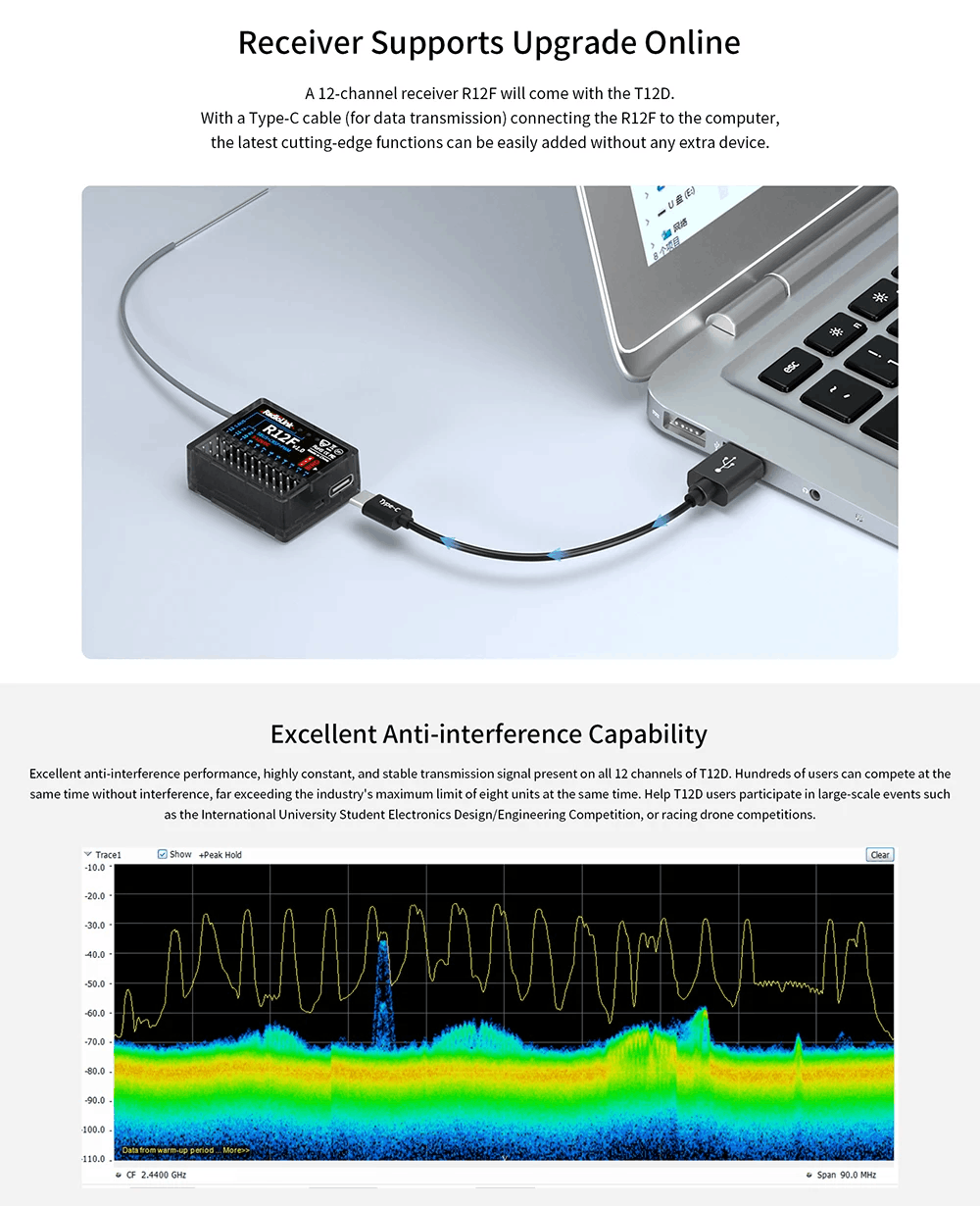

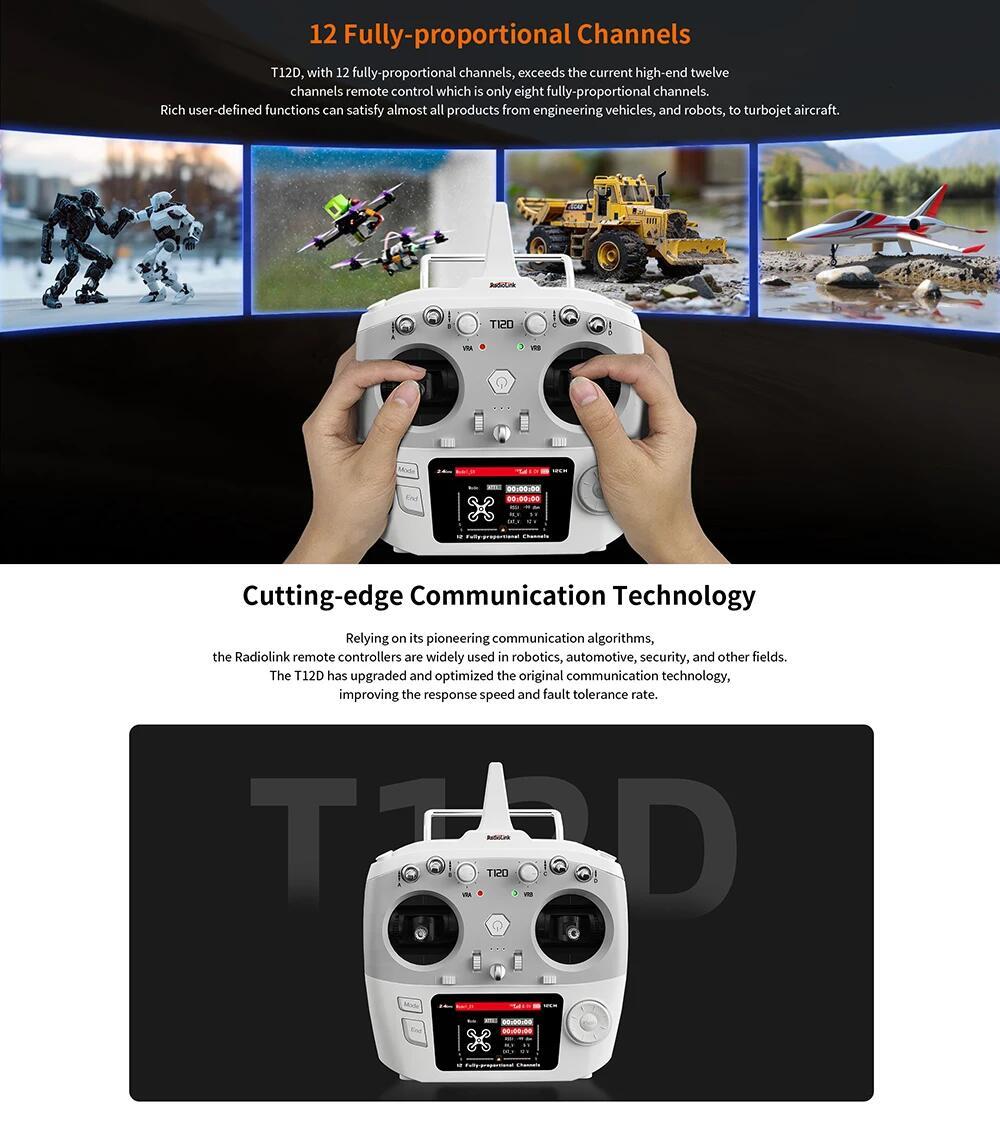

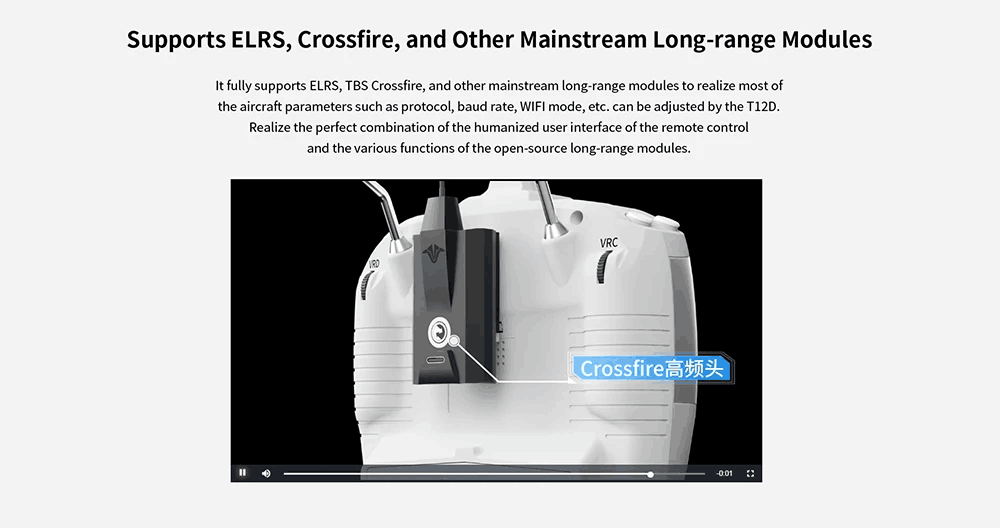

1. T12D, with 12 fully-proportional channels, Excellent Anti-interference Capability,SupportsELRS, TBS Crossfire, and other mainstream long-range modules to realize most of the aircraft parameters such as protocol, baud rate, WIFI mode, etc. can be adjusted by the T12D.

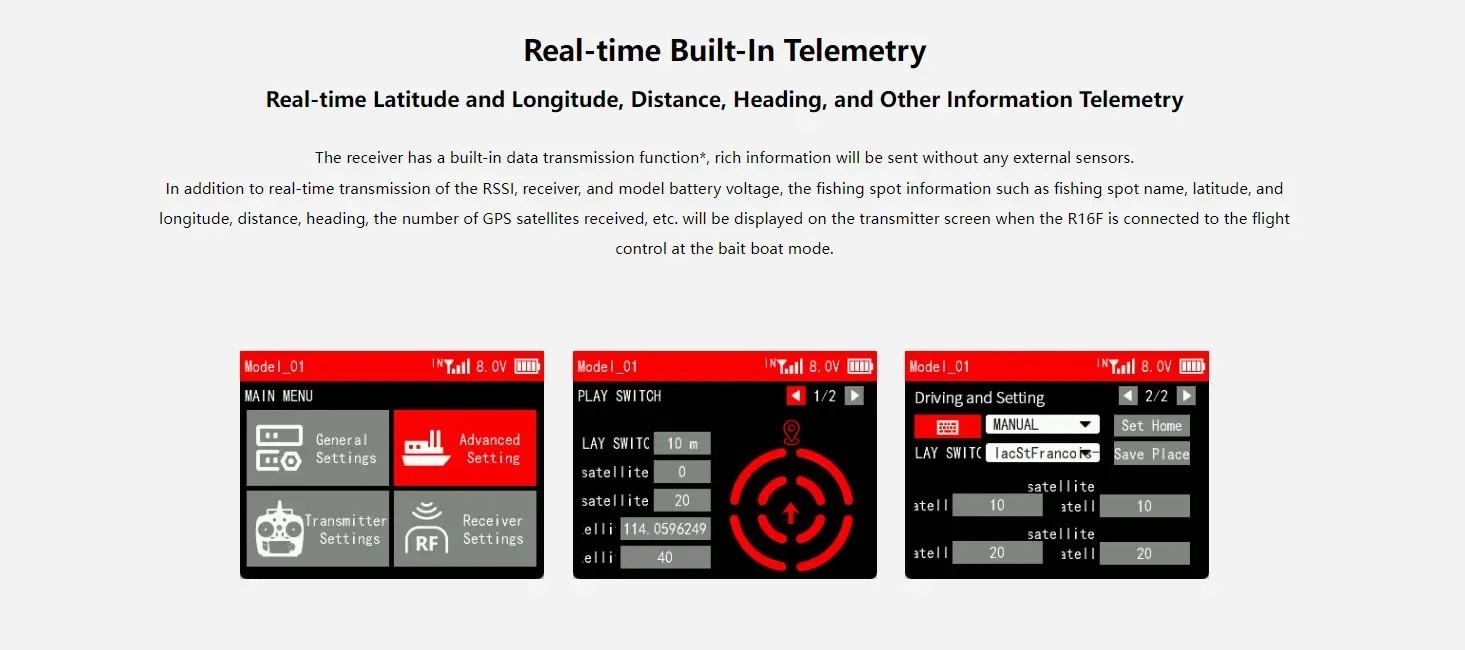

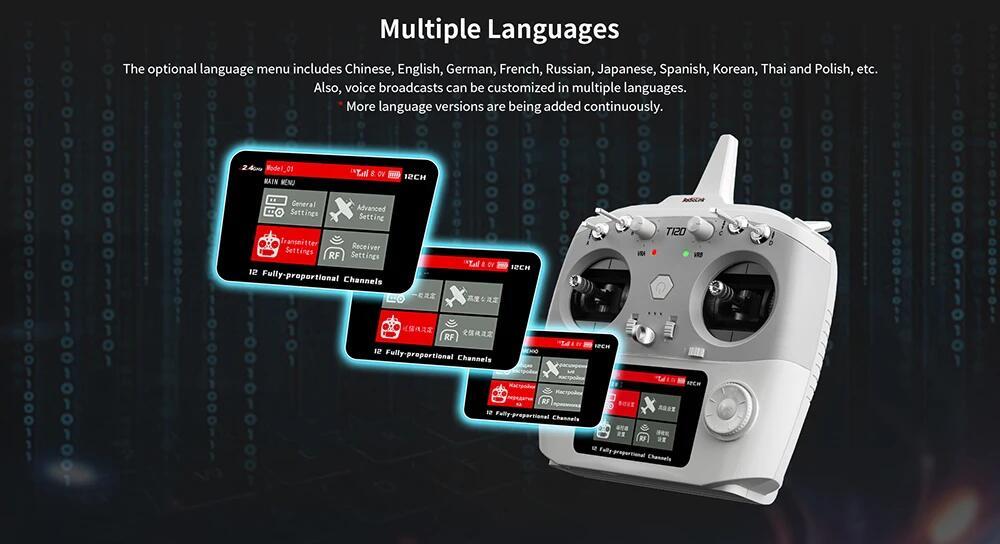

2. 4000 Meters Control Distance,Mainstream Operating System,Multiple Languages,Real-time Built-In Telemetry of Model Battery Voltage,Humanized and Easy to Operat.
3. Multiple Power Supply Modes,8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable.
4. support helicopters, fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles,racing boats, robots, lawnmowers, bait boats, mechas, and other models on the market.
Description:

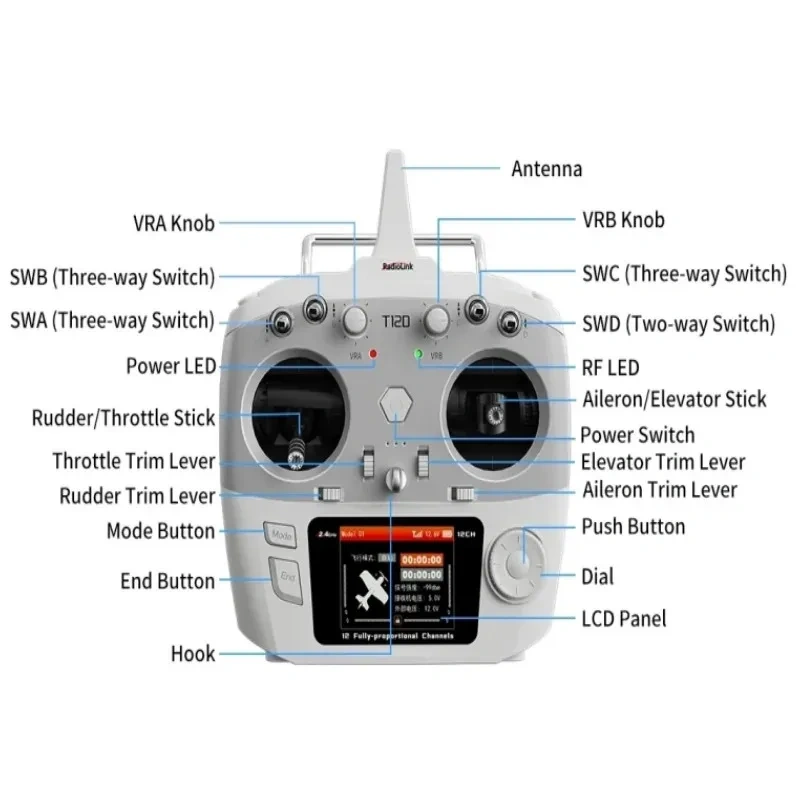

T12D, the 12 fully proportional channels with full models and full functions transmitters,1M bytes RAM Memory, 208MHz Basic Frequency Memory, 2.8 inches, 320*240 pixels 16 colorful screens. three 3-position switches, one 2-position switch, 2 pieces of dials, 2 pieces of sliders,and ergonomically designed making the T12D fit a wide range of pilot needs.
Specifications:
T12D
Channels: 12 fully proportional channels, 5-12 channels can be programmed
Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

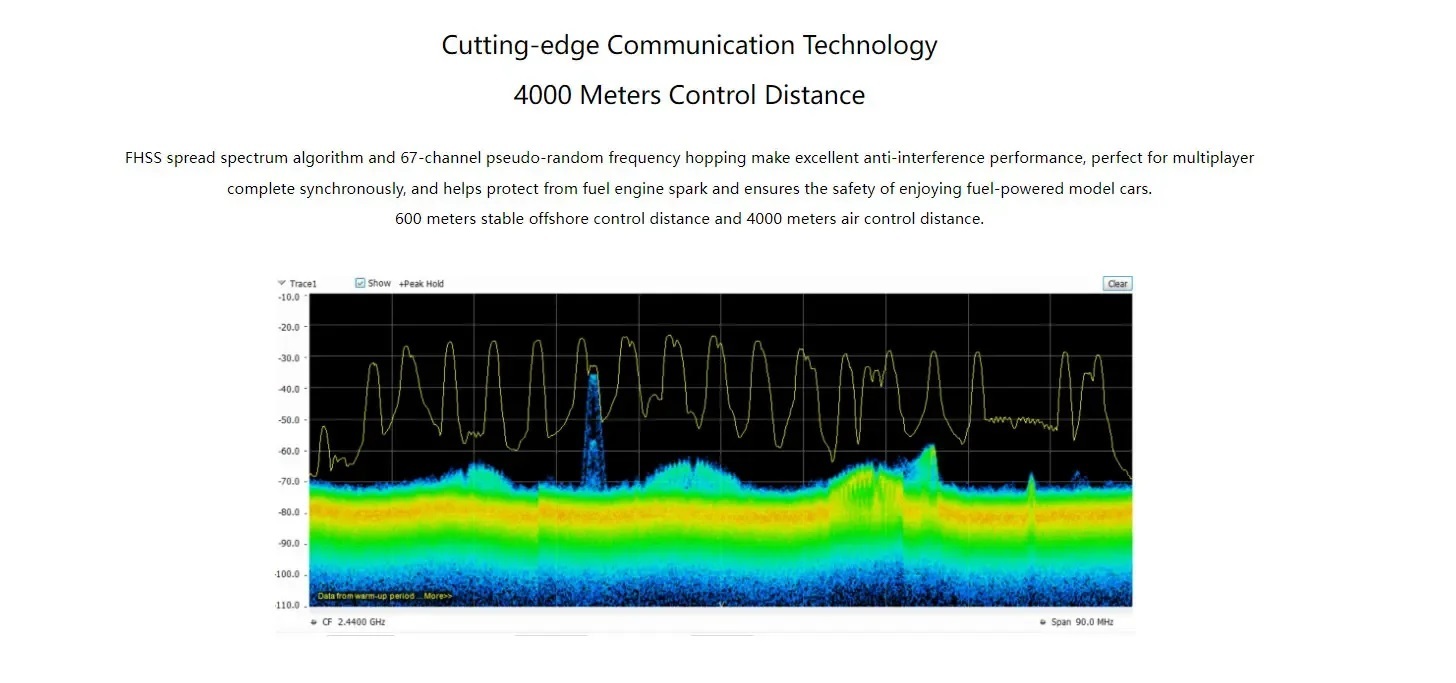

Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping/CRSF
Operating Systems: freeRTOS+LVGL GUI
Long-range Module: it fully supports ELRS, TBS Crossfire, and other mainstream long-range modules

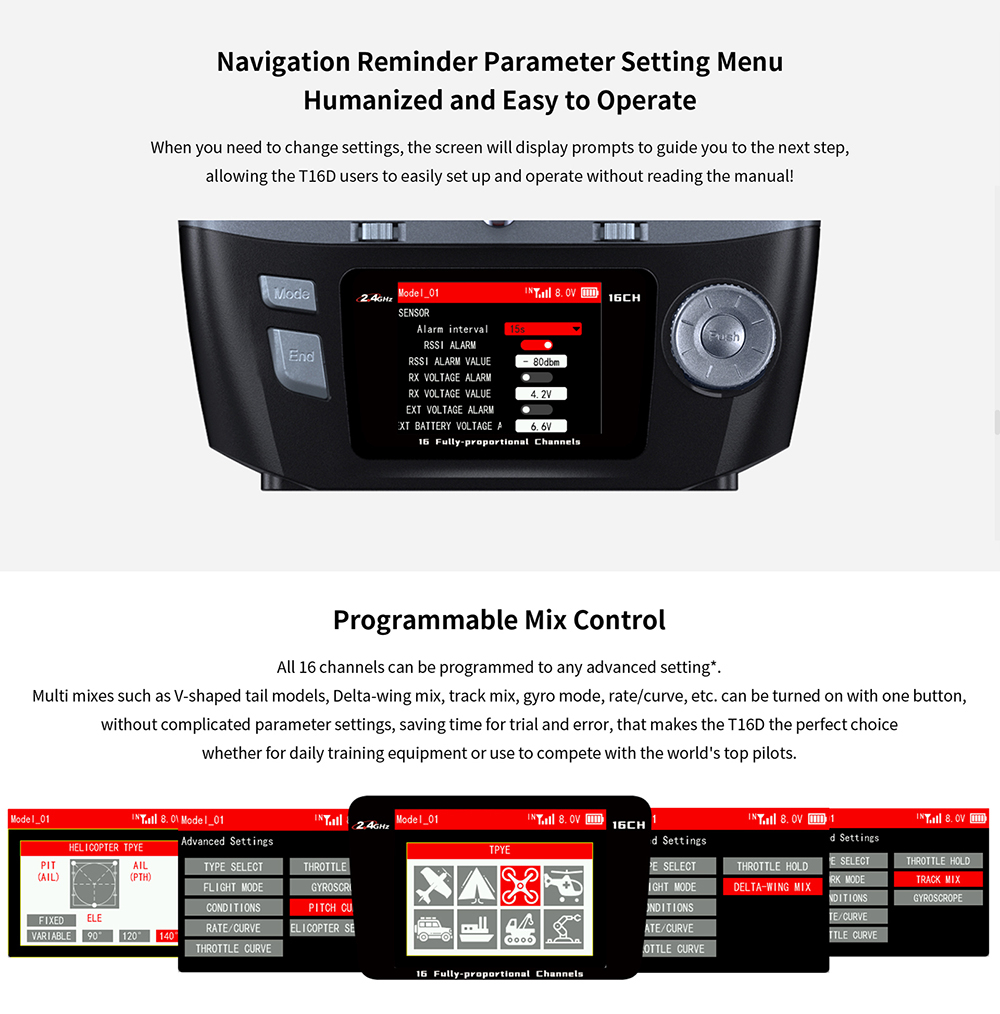

Menu Customized: Setting Menu, font, desktop, system theme, etc., can be customized
Response Latency: 3ms, 4ms, 14ms can be selected
Channel Resolution: 4096 with regular jitter of 0.5us
Modulation Mode: GFSK
Channel Band Width: 400KHz
Channel Pacing: 1200KHz
Transmitter Power:<100mW(20dBM)
Adjacent Channel Rejection: >36dBM
Transmission Rate: 38kbps
Reception Sensitivity: -104dBM
PWM Output Range: 1.0ms~2.0ms
Cycle: 15ms/per fram
Operating Voltage: 7.4-18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery
Type-C Port Input Voltage: 5 V(T12D also can powered by computer or mobile power bank via Type-C cable)
Type-C Port Input Current: 500mA
Type-C Port Output Voltage: 4.6V-5.0V
Type-C Port Output Current: Maximum 1A
Operating Current: 100mA(±10mA)@8.4VDC
Control Distance:
① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
② CRSF: Depends on the RX and TX of the long-range module
Adaptable Models:
otary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot
Signal Output: PWM&SBUS&PPM
Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be
customized
Storage Model Quantity: 100
Storage Subsidiary ID Models Quantity: 15
Simulator Mode: Yes
Trainer Function: Support
Screen: 2.8 inches 16 colorful screens, 320*240 pixels

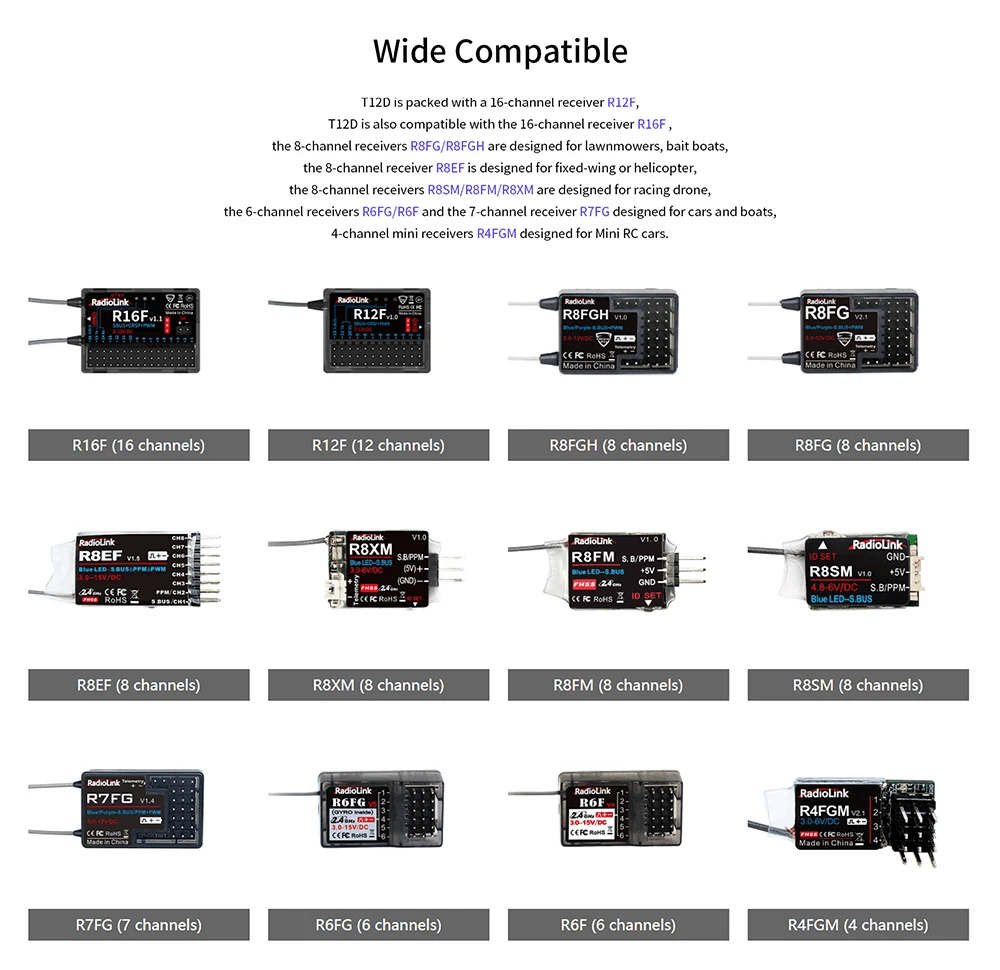

Compatible Receivers: R16FG(Std), R8EF，R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F
Operating Temperature: -30° to 85° C
Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with
SBUS signal

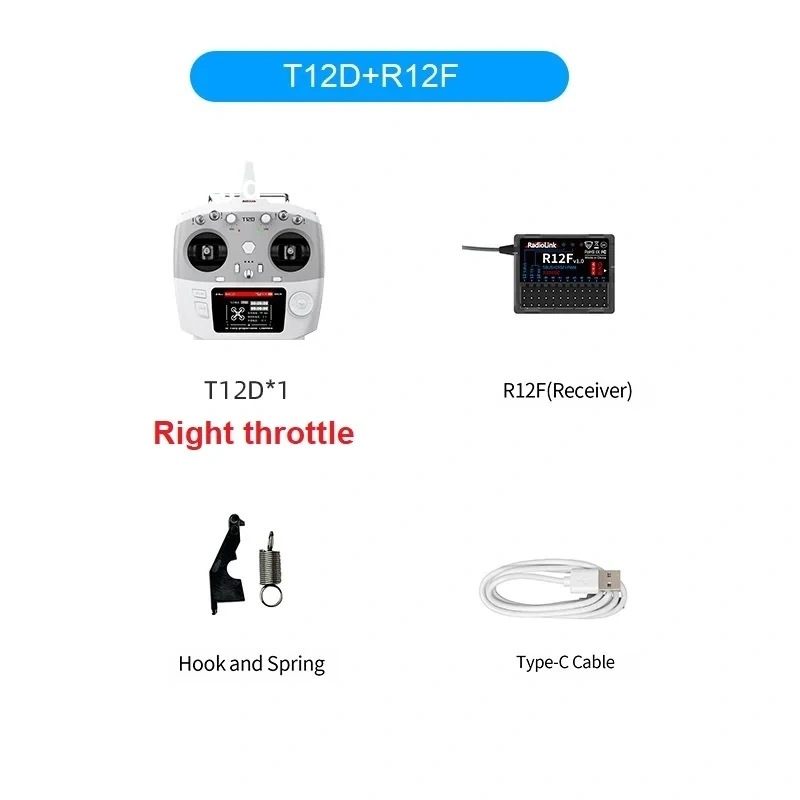

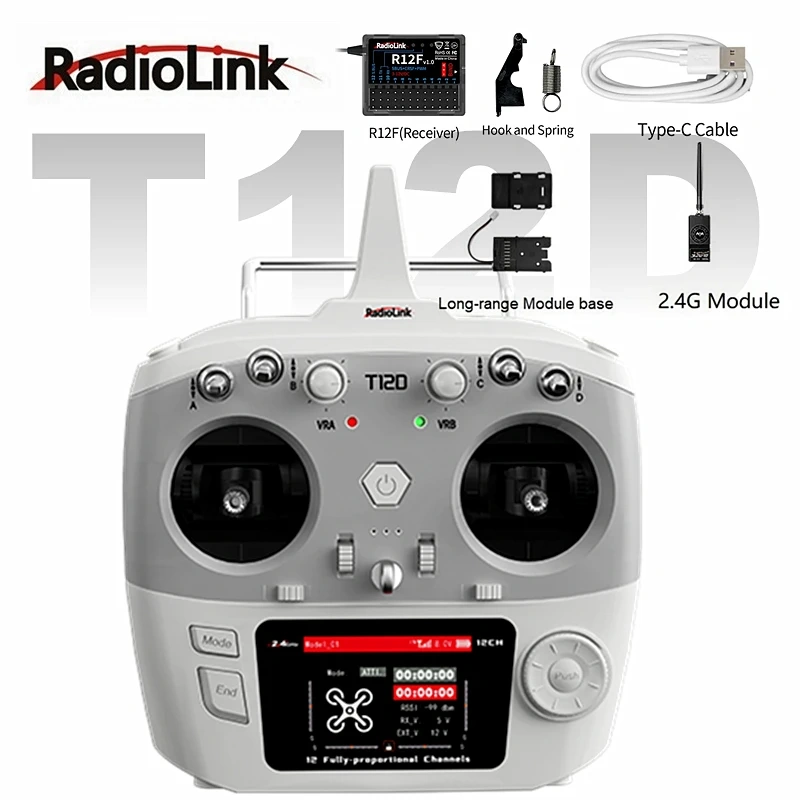

Package Included:
T12D(Transmitter) x 1
R12F(Receiver) x 1
Lanyard x 1
Type-C Cable(Upgrade) x 1
Hook and Spring x 1
Instruction Manual x 1
Packing Box x 1
Description

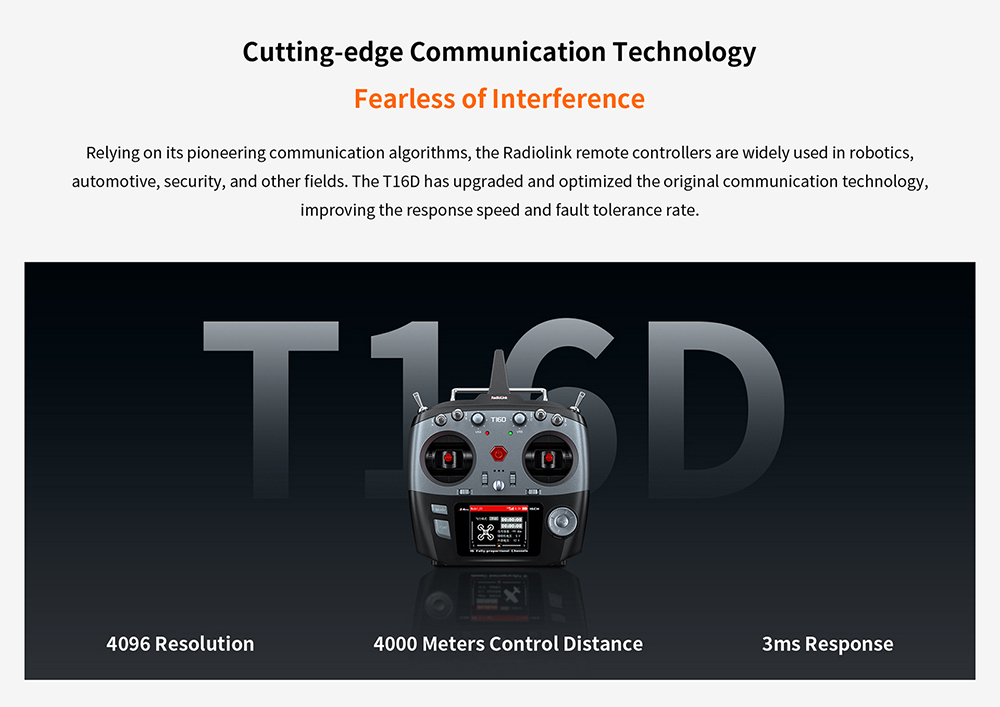

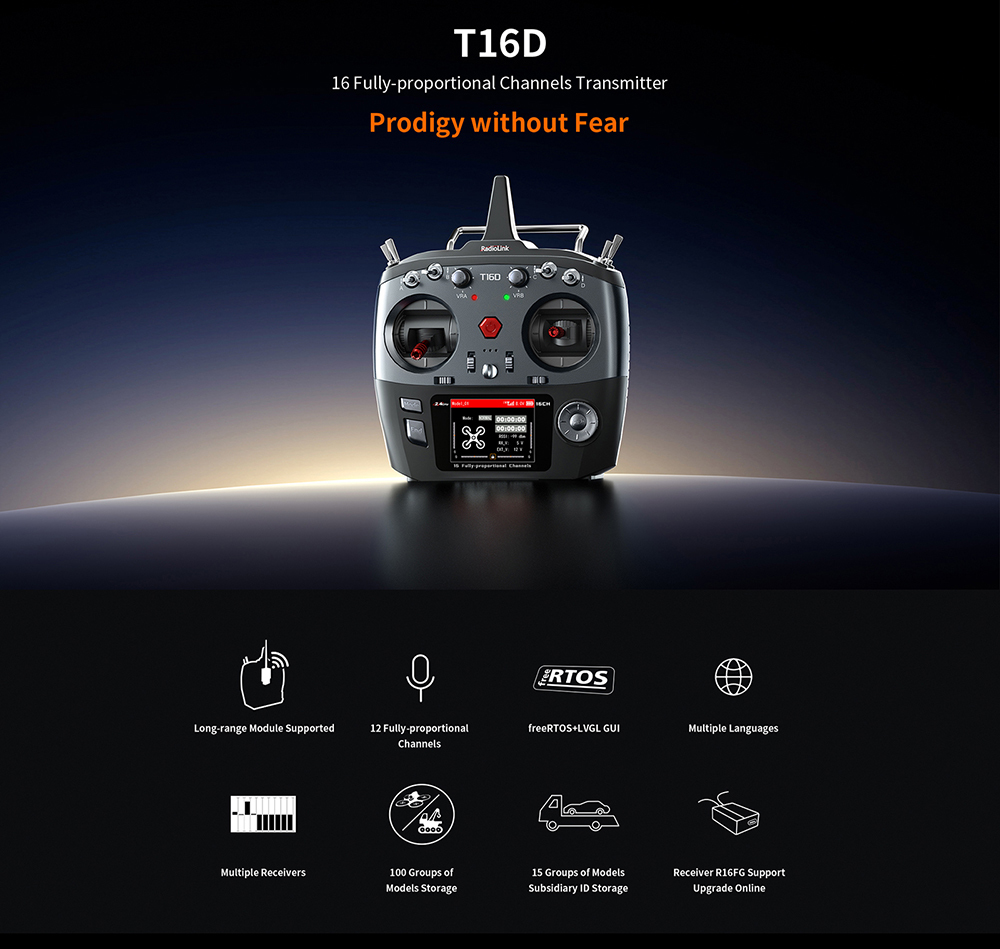

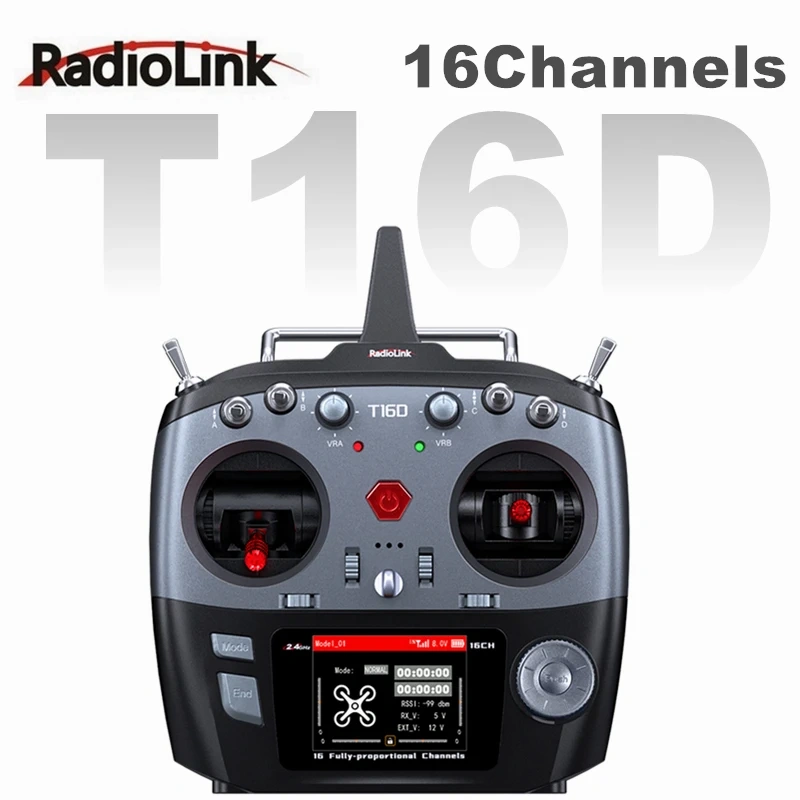

RadioLink T16D 16 Channels RC Transmitter 2.4GHz with R16F Receiver Dual Stick Remote Controller for RC Car Boat Lawnmowers Fixed Wing Helicopter Racing Drone
Features

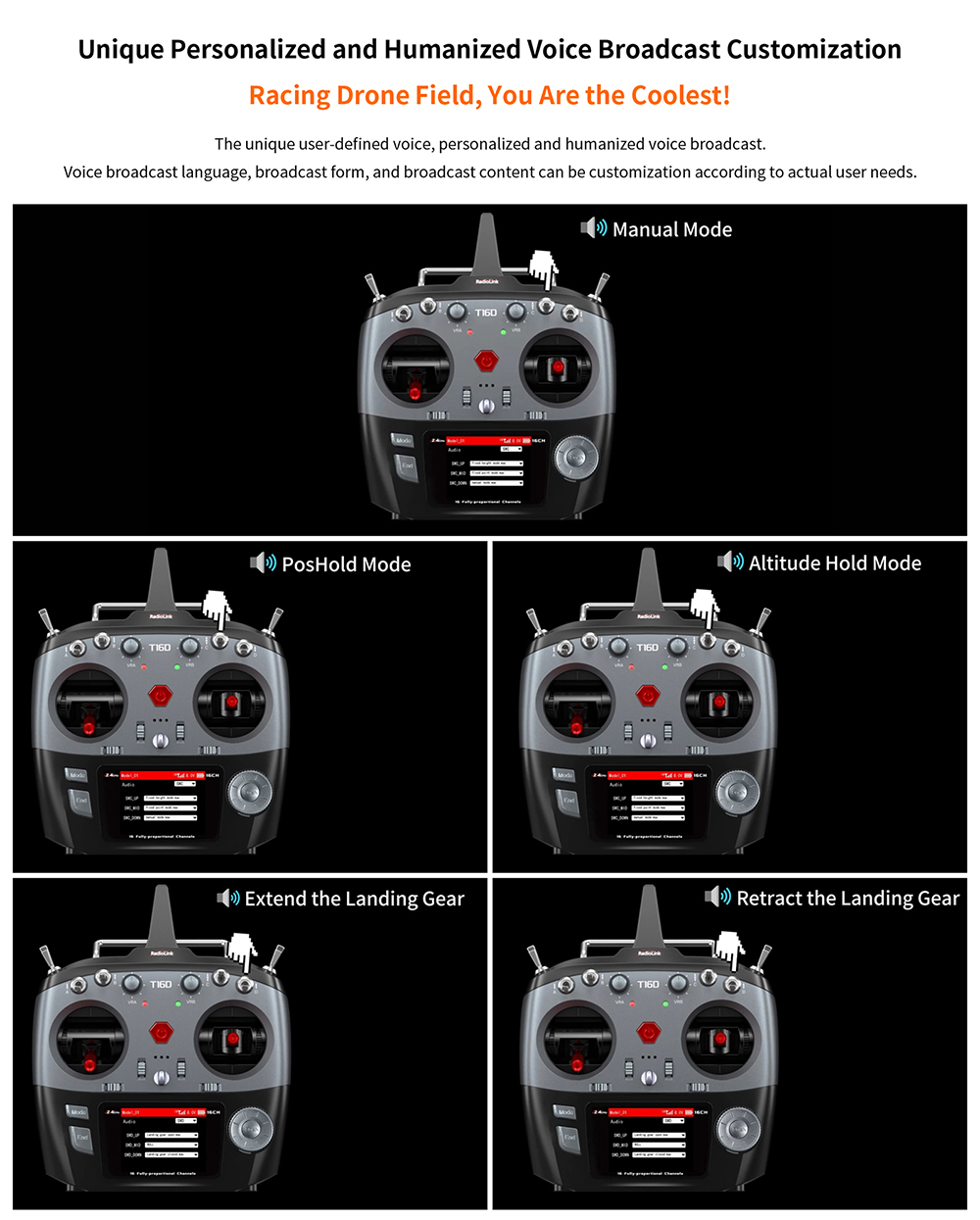

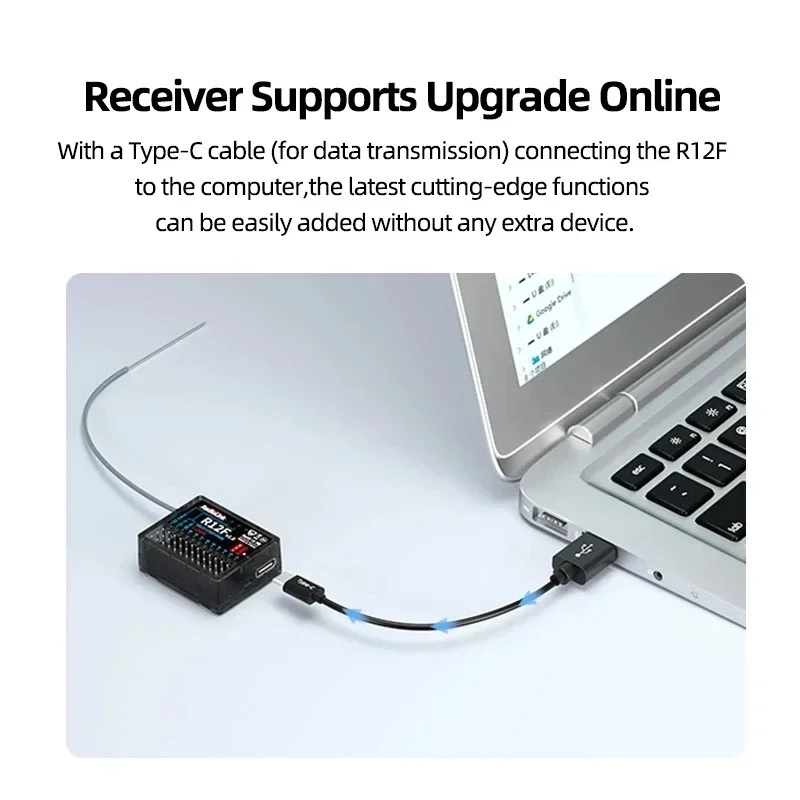

1. T16D, with 16 fully-proportional channels, Excellent Anti-interference Capability,4000 Meters Control Distance,Mainstream Operating System,Multiple Languages,Unique Personalized and Humanized Voice Broadcast Customization,Receiver Supports Upgrade Online,Humanized and Easy to Operat.

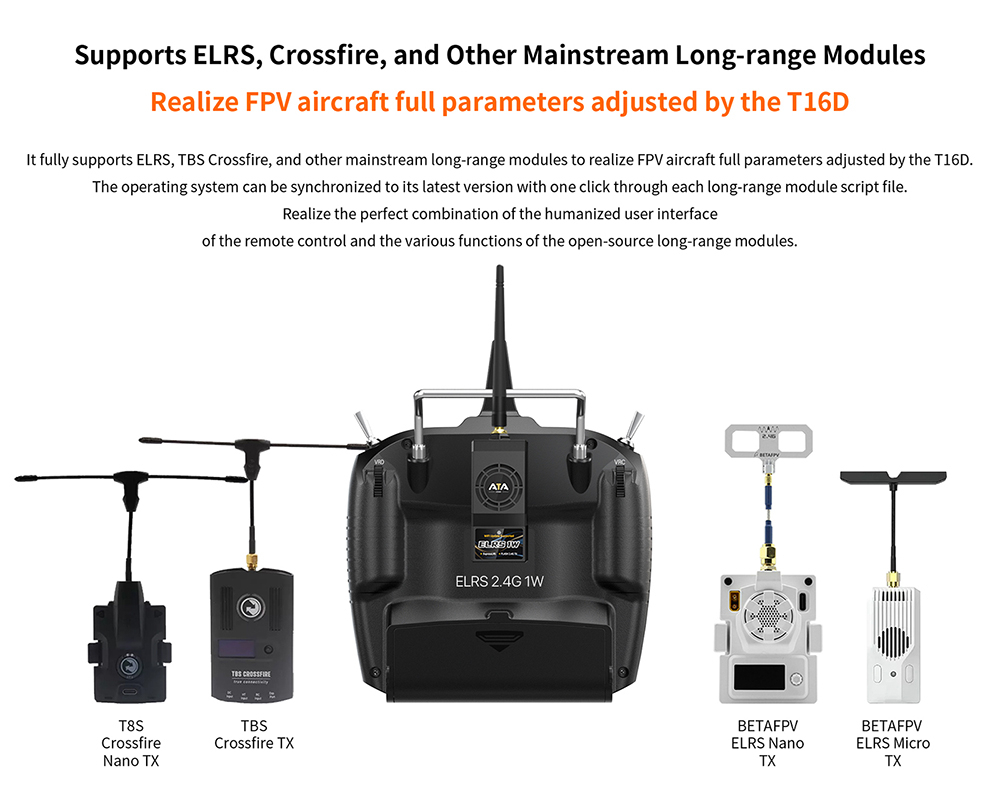

2. It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D.Realize the perfect combination of the humanized user interface of the remote control and the various functions of the open-source long-range modules.

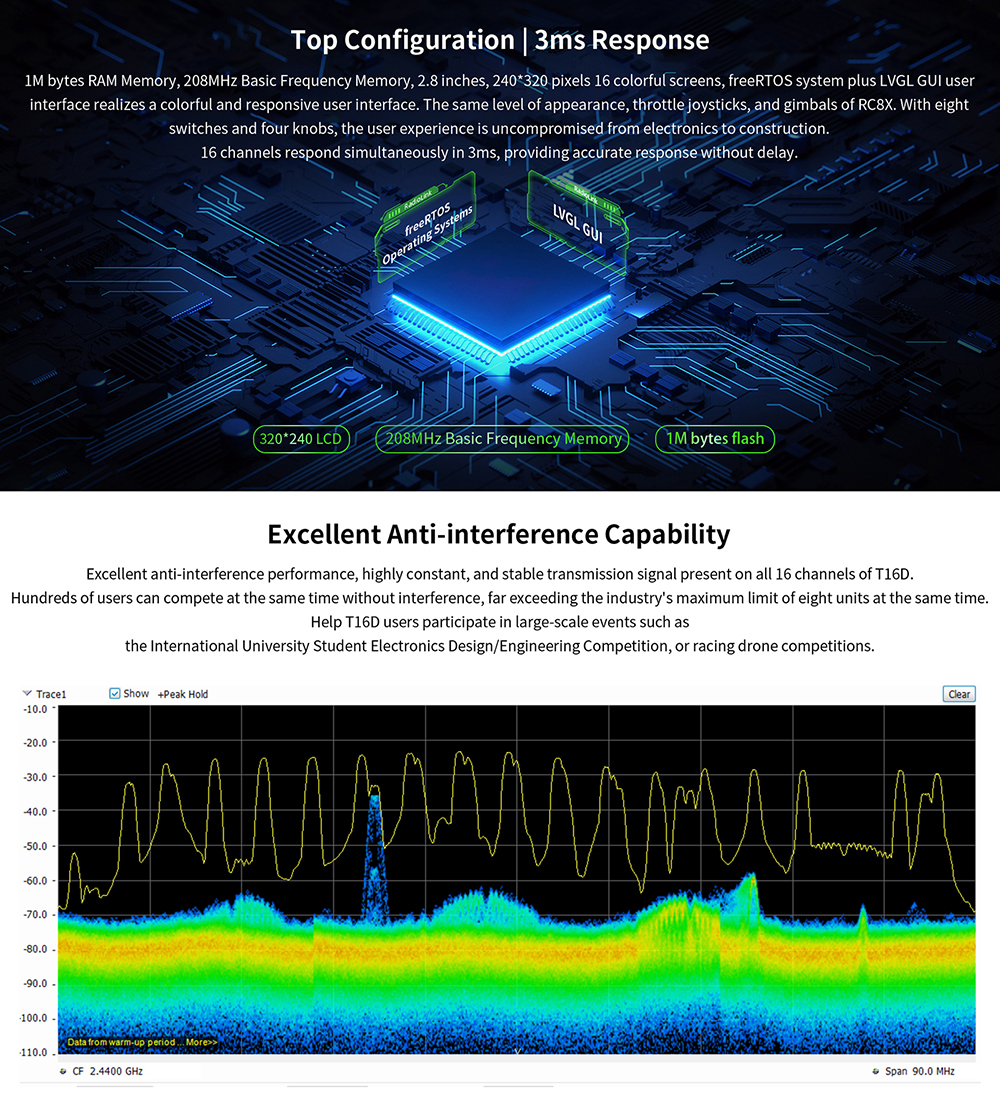

3. Top Configuration: 1M bytes RAM Memory, 208MHz Basic Frequency Memory, 2.8 inches, 240 x 320 pixels 16 colorful screens, freeRTOS system plus LVGL GUI user interface realizes a colorful and responsive user interface.
4. Multiple Power Supply Modes,8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable.

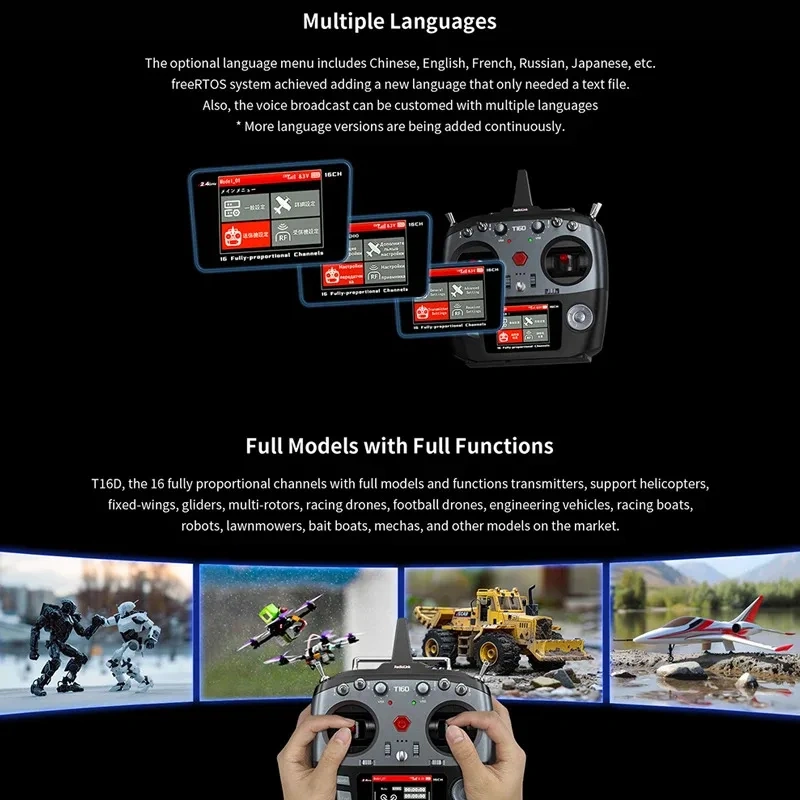

5. support helicopters,fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats,robots, lawnmowers, bait boats, mechas, and other models on the market.
Description:
T16D is packed with a 16-channel receiver R16FG,the 16 fully proportional channels,respond simultaneously in 3ms, providing accurate response without delay.With eight switches and four knobs, the user experience is uncompromised,Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.
Specifications:
T16D
Channels: 16 fully proportional channels, 5-16 channels can be programmed
Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping/CRSF
Operating Systems: freeRTOS+LVGL GUI
Long-range Module Script: LUA script
Long-range Module: it fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D
Voice Broadcast: unique personalized and humanized voice broadcast customization
Menu Customized: Setting Menu, font, desktop, system theme, etc,can be customized
Response Latency: 3ms, 4ms, 14ms can be selected
Channel Resolution: 4096 with regular jitter of 0.5us
Modulation Mode: GFSK
Channel Band Width: 400KHz
Channel Pacing: 1200KHz
Transmitter Power:<100mW(20dBM)
Adjacent Channel Rejection: >36dBM
Transmission Rate: 38kbps
Reception Sensitivity: -104dBM
PWM Output Range: 1.0ms~2.0ms
Cycle: 15ms/per frame
Operating Voltage: 7.4-18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery)

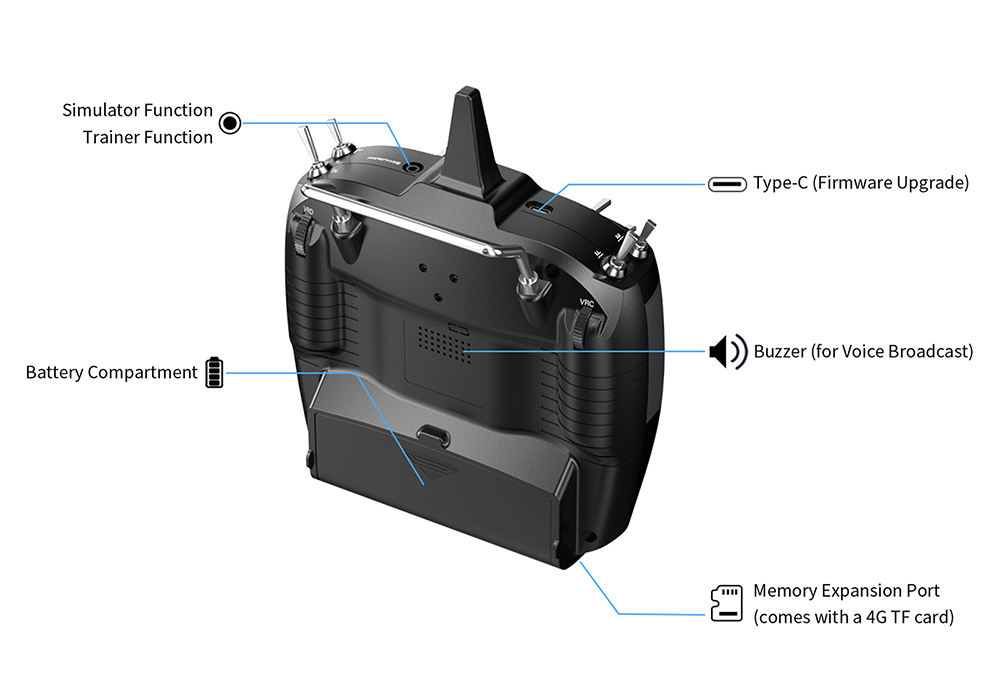

Type-C Port Input Voltage: 5V(T16D also can powered by computer or mobile power bank via Type-C cable)
Type-C Port Input Current: 500mA
Type-C Port Output Voltage: 4.6V-5.0V
Type-C Port Output Current: Maximum 1A
Operating Current: 100mA(±10mA)@8.4VDC
Control Distance:
① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
② CRSF: Depends on the RX and TX of the long-range module
Adaptable Models:
Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot

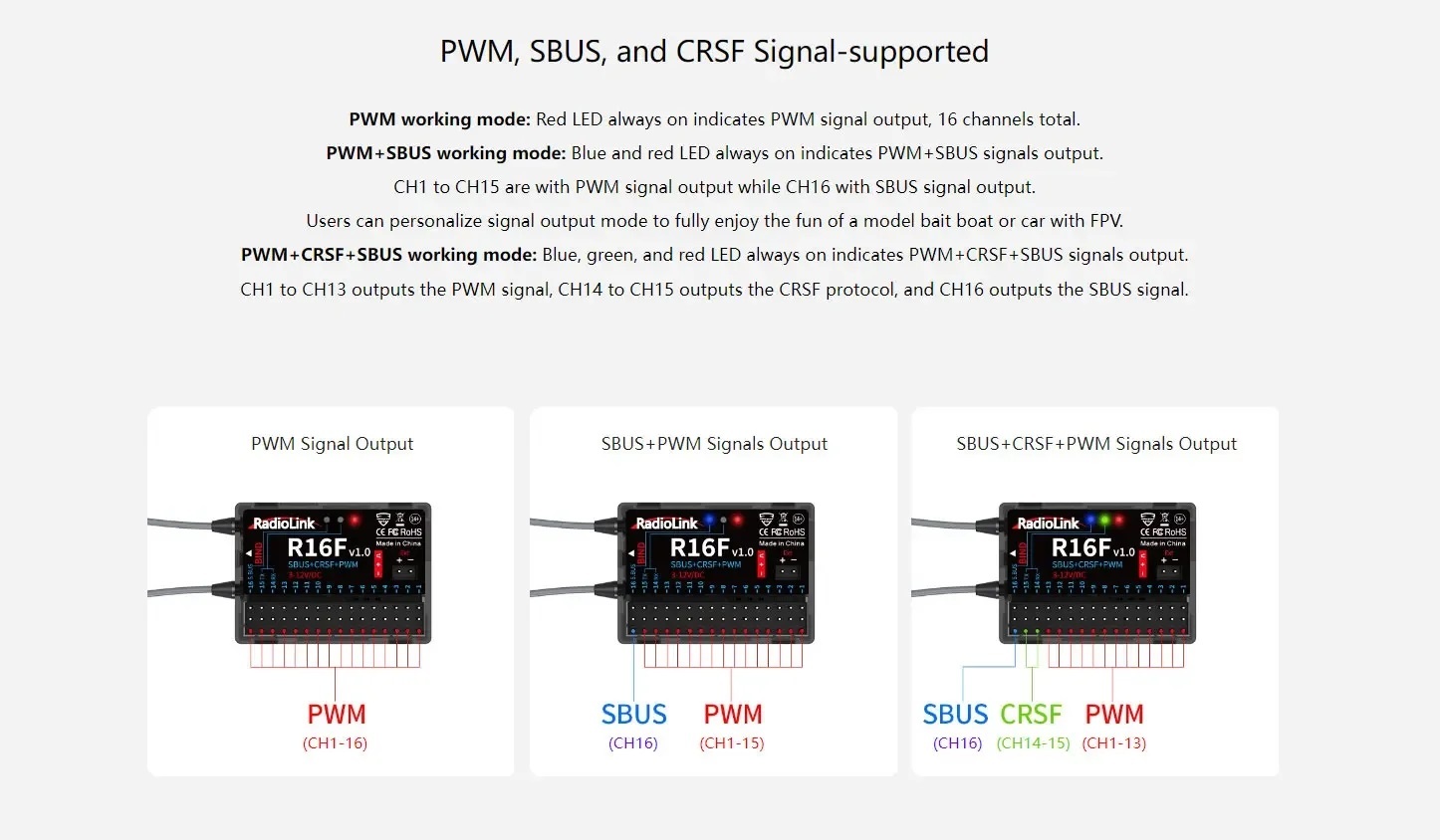

Signal Output: PWM&SBUS&PPM
Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized
Storage Model Quantity: 20
Storage Subsidiary ID Models Quantity: 15

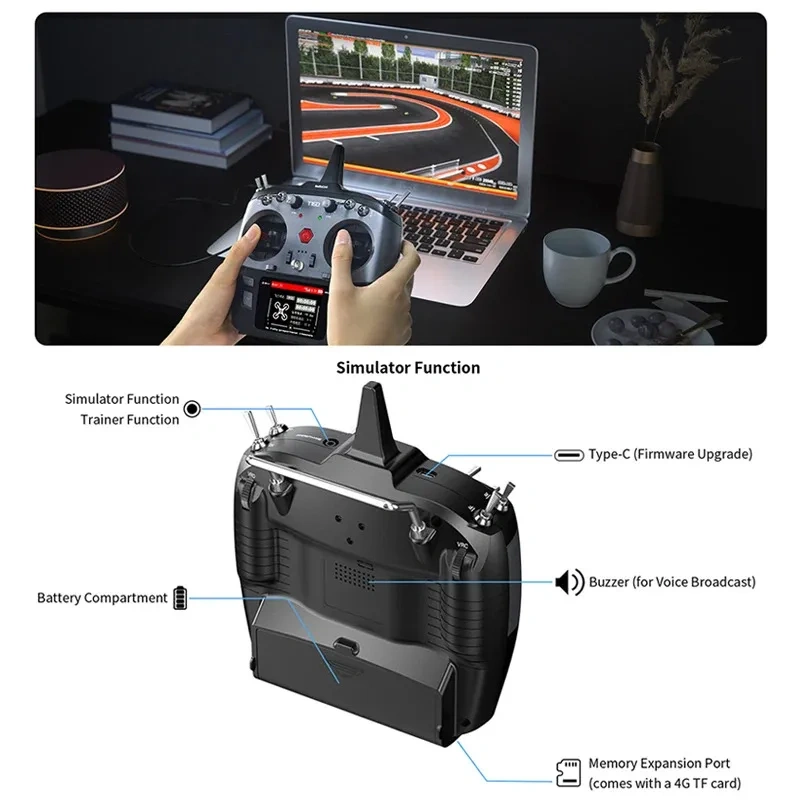

Simulator Mode: Yes
Trainer Function: Support
Screen: 2.8 inches 16 colorful screens, 320*240 pixels
Compatible Receivers: R16FG(Std), R8EF，R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F
Operating Temperature: -30° to 85° C
Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal

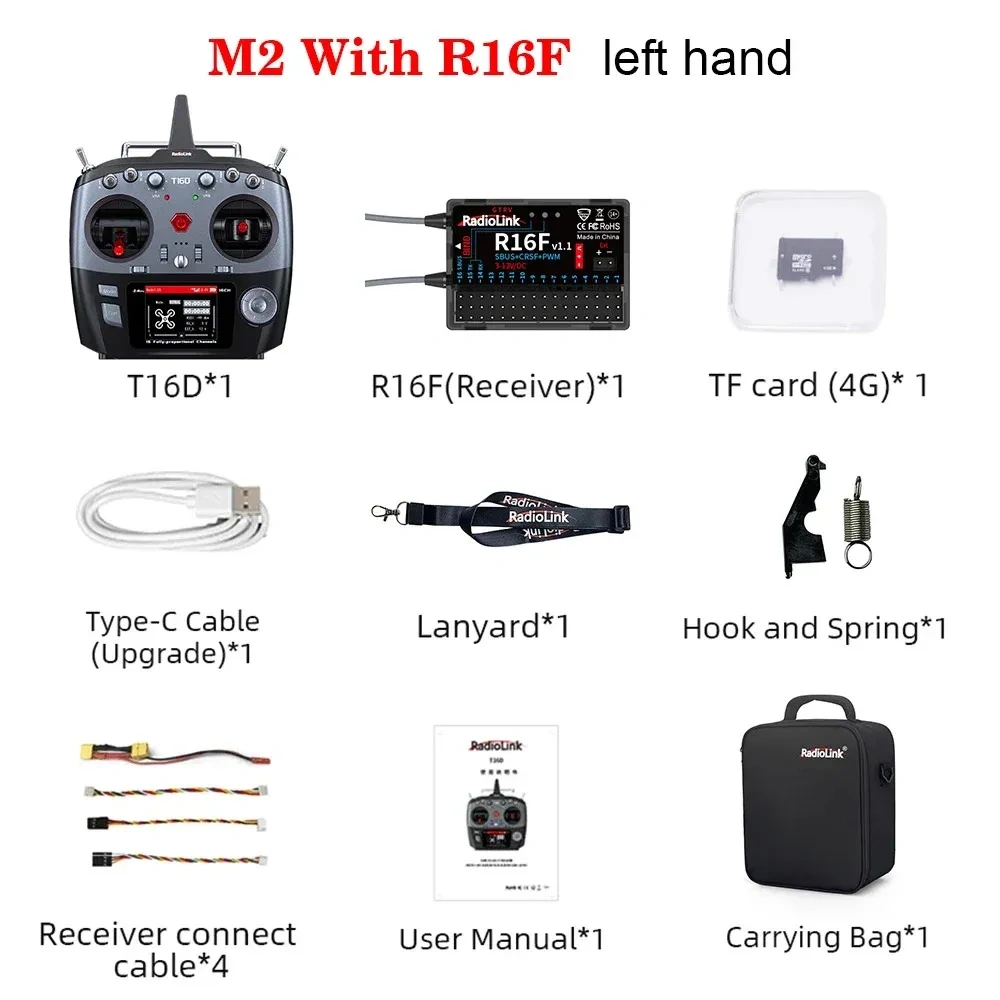

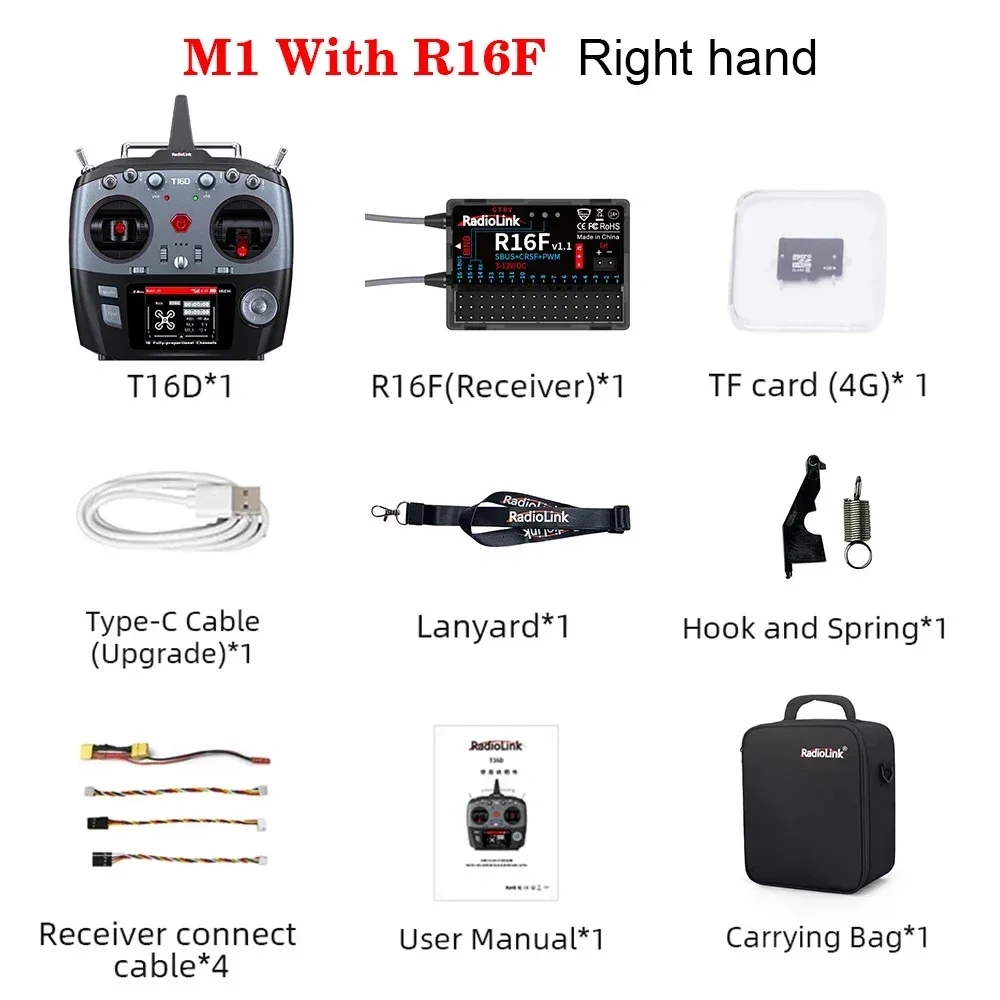

Package Included:
T16D Transmitter x 1
R16F Receiver x 1
TF card (4G) x 1
Lanyard x 1
Type-C Cable(Upgrade) x 1
Hook and Spring x 1
Carrying Bag x 1

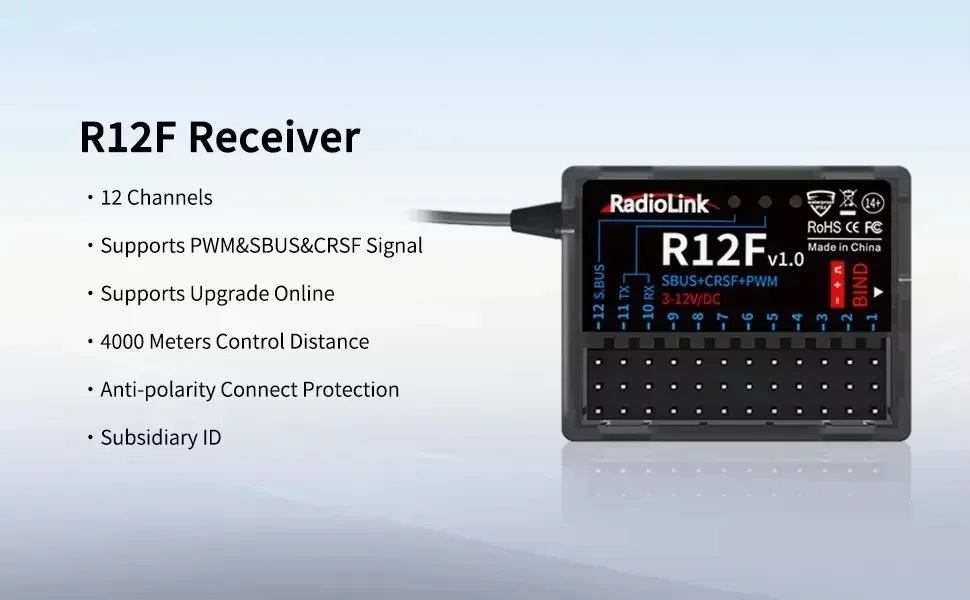

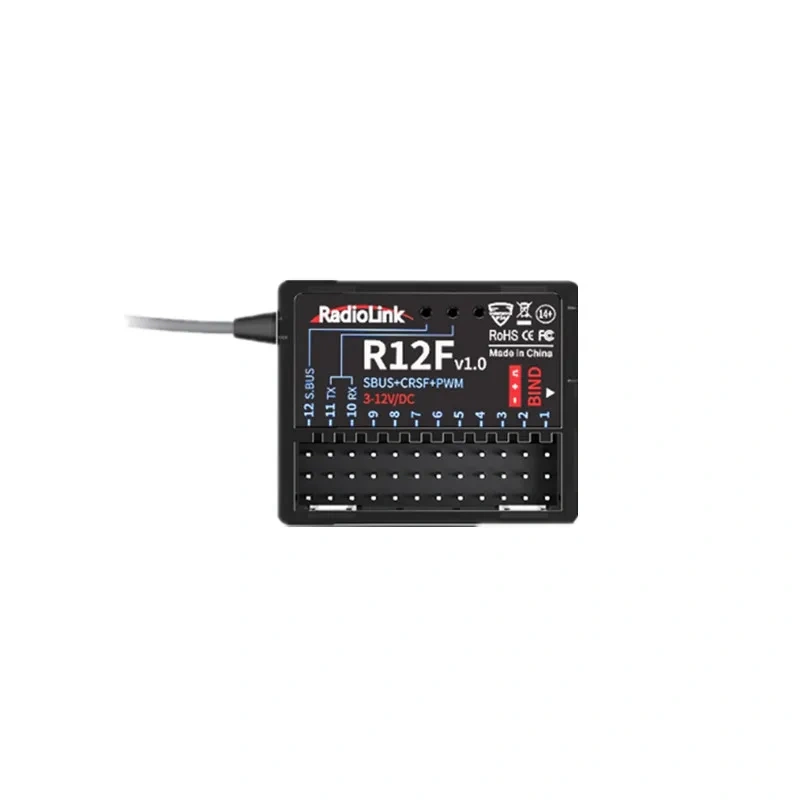

R12F Receiver Specifications:

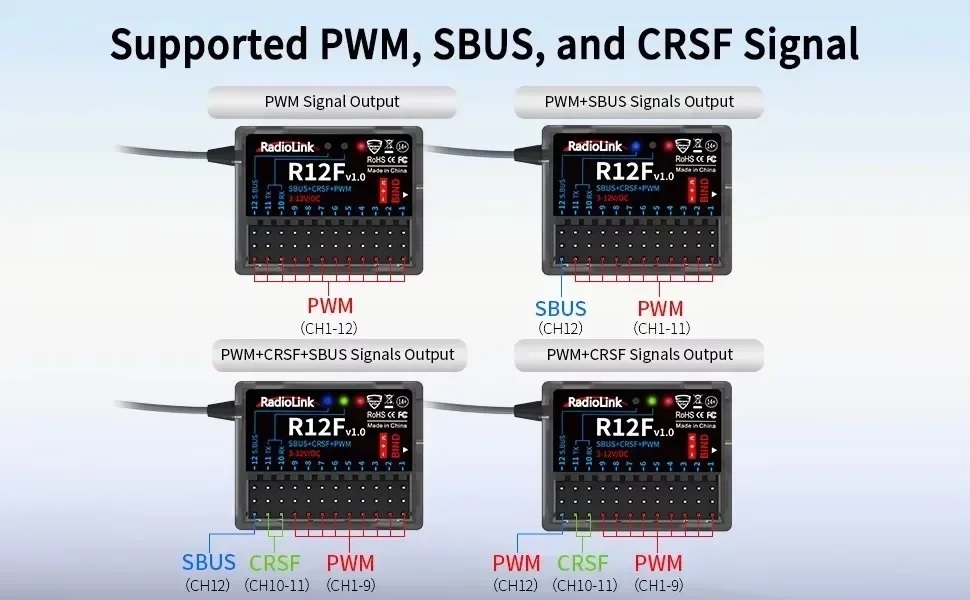

Signal: SBUS+PWM
Channel: 12 channels
Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

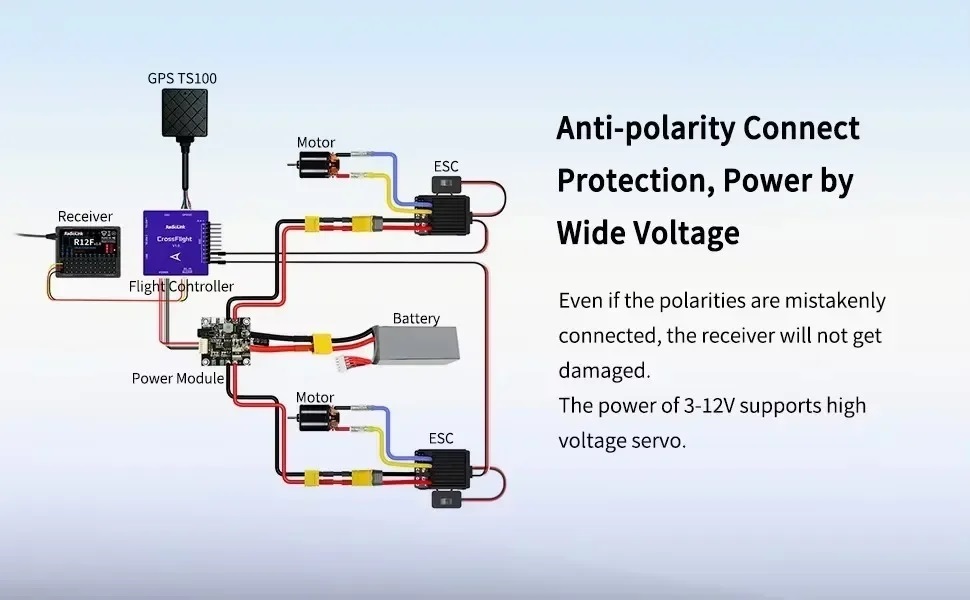

Operating Voltage: 3-12V
Operating Current: 50±10mA@5V
EXT Battery Input: 1S-8S(3.0-33.6V)
Size: 45*32*15mm
Weight: 17g
Antenna Length: 205mm
Water Splash Proof: The waterproof grade is IPX4
Compatible transmitter: for RC RC8X RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/T8FB/T8S/T12D/T16D

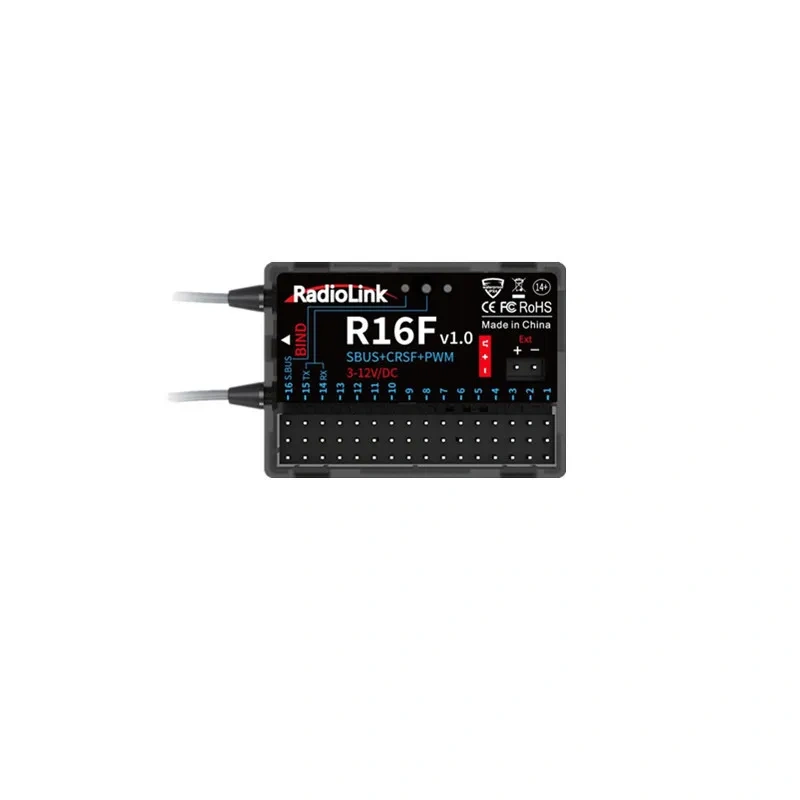

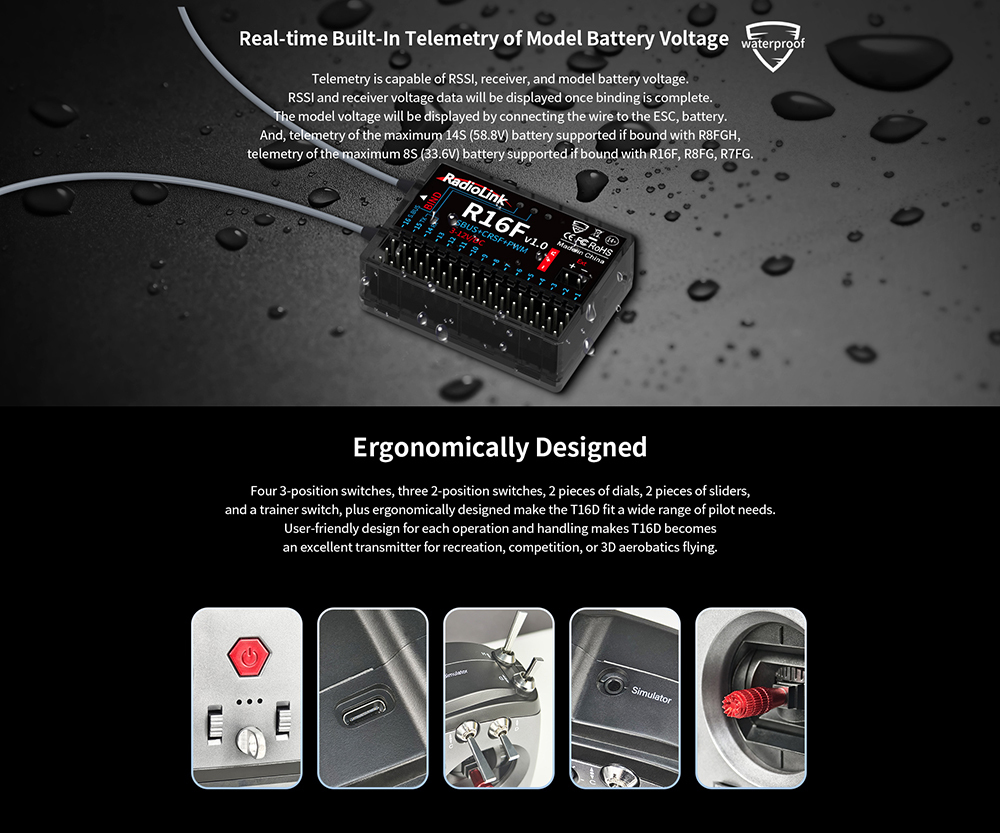

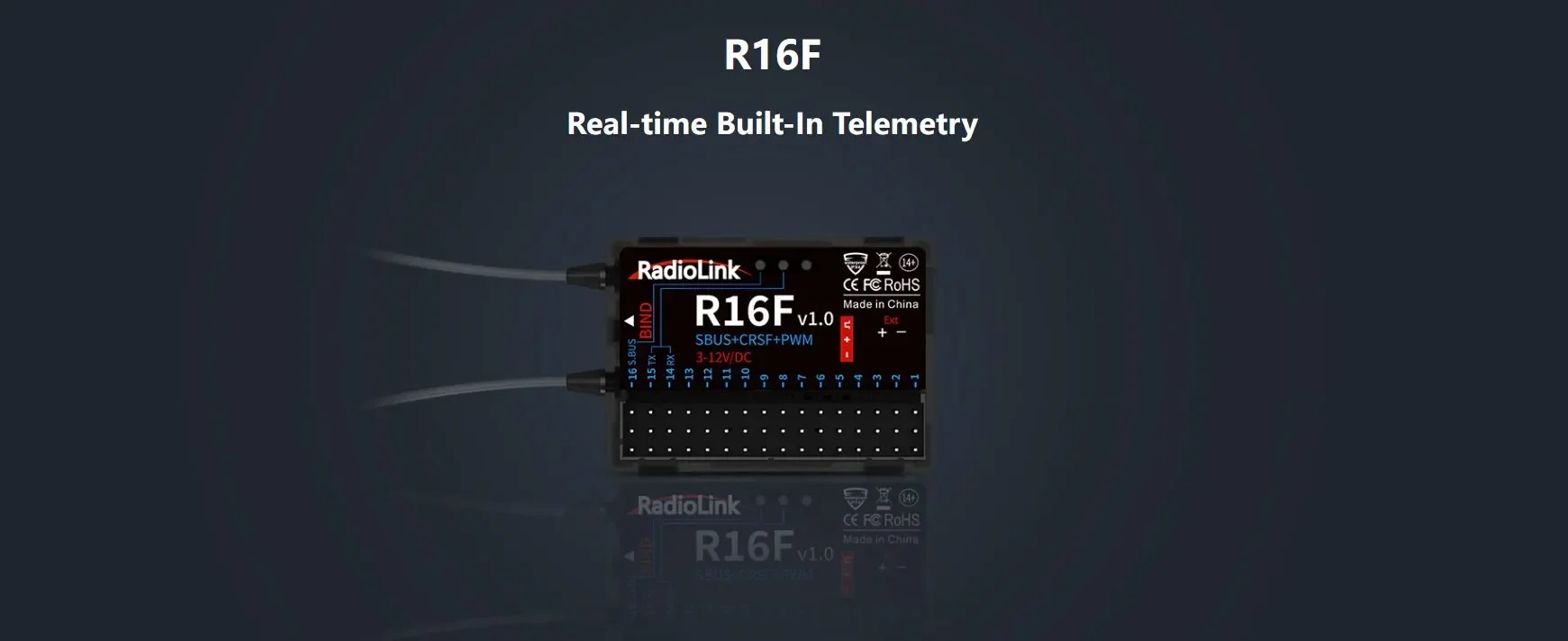

R16F Receiver Specifications:
Signal: SBUS+PWM
Channel: 16 channels
Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
Operating Voltage: 3-12V
Operating Current: 50±10mA@5V
EXT Battery Input: 1S-8S(3.0-33.6V)
Size: 45*32*15mm
Weight: 17g
Antenna Length: 205mm
Water Splash Proof: The waterproof grade is IPX4
Compatible transmitter: for RC RC8X RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/T8FB/T8S/T12D/T16D
