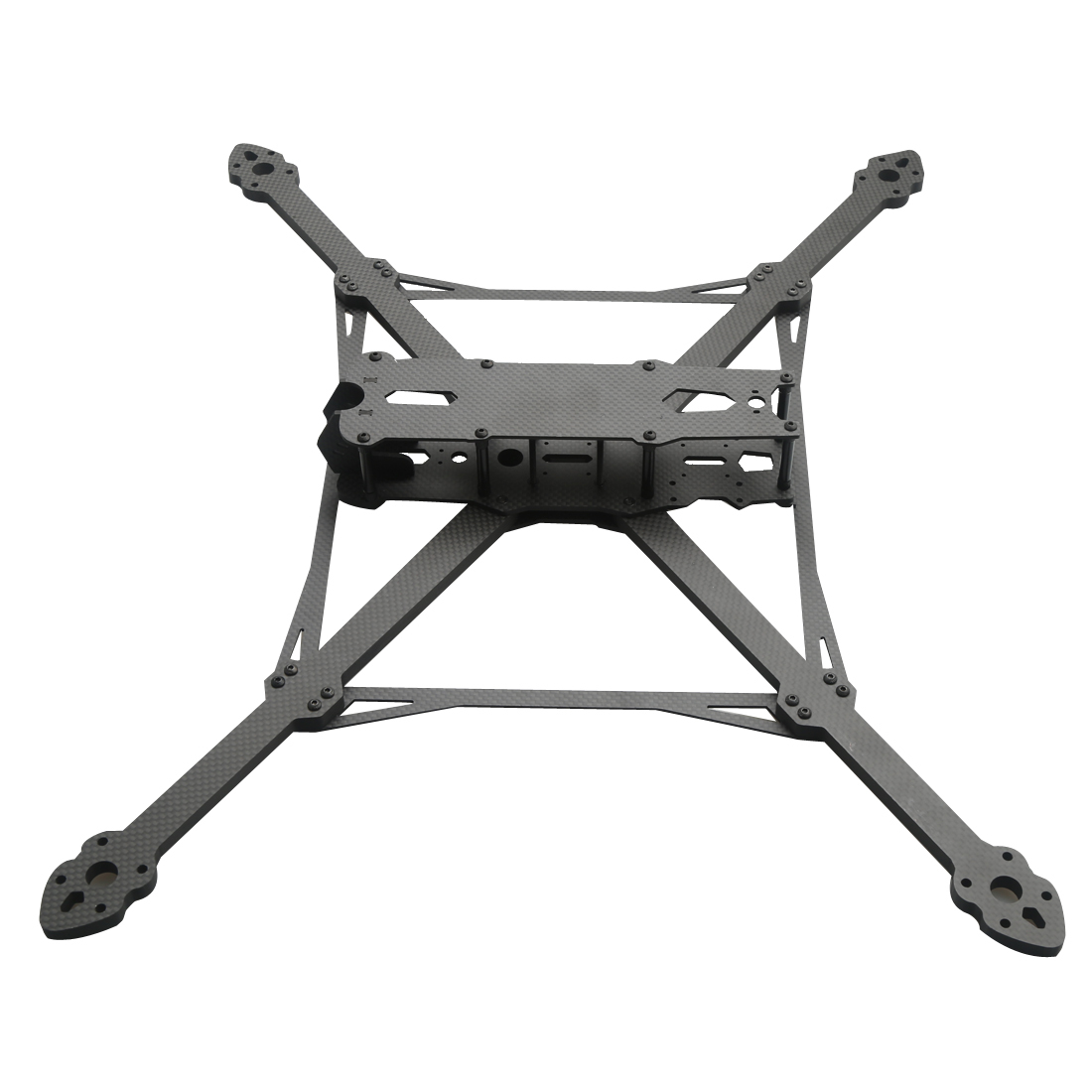

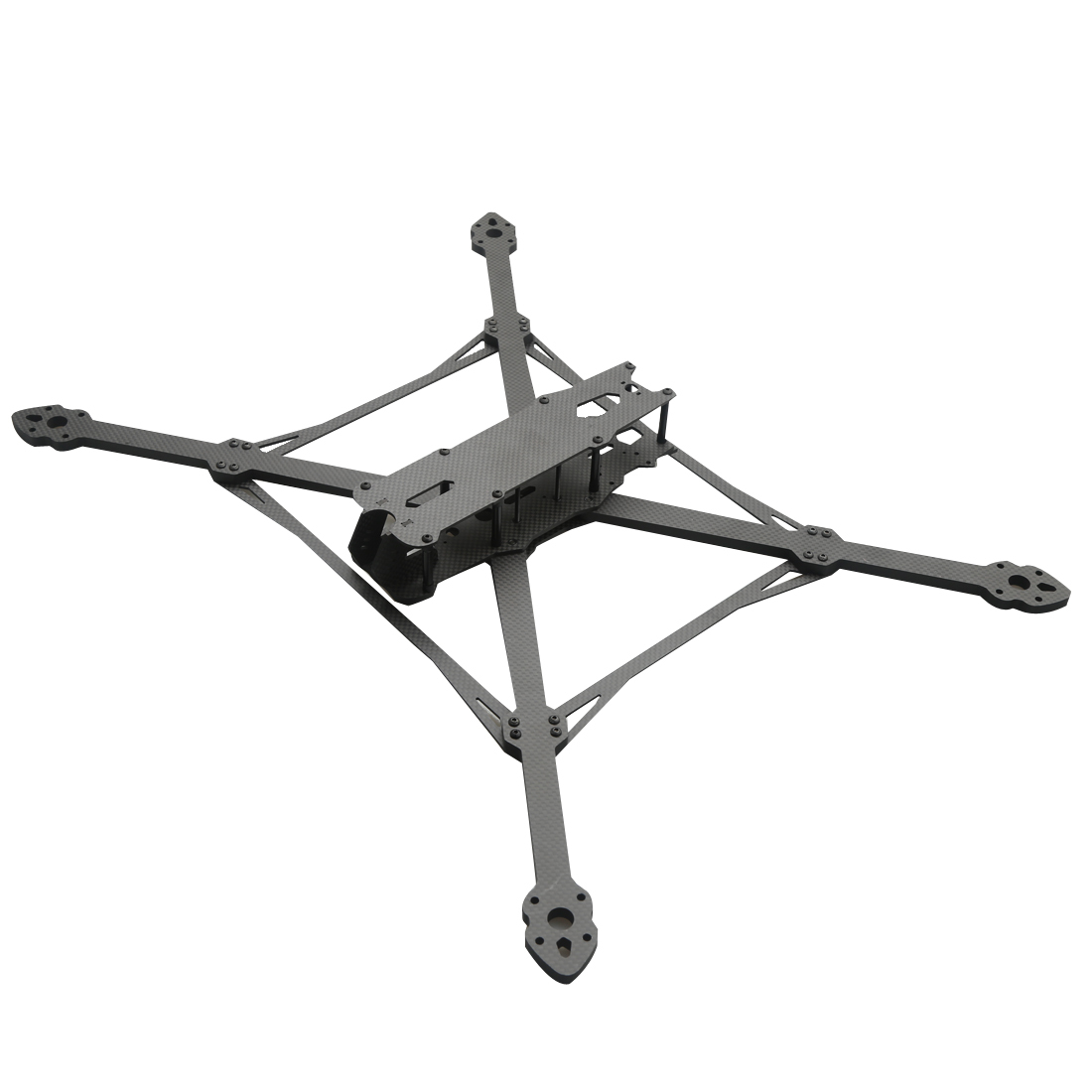

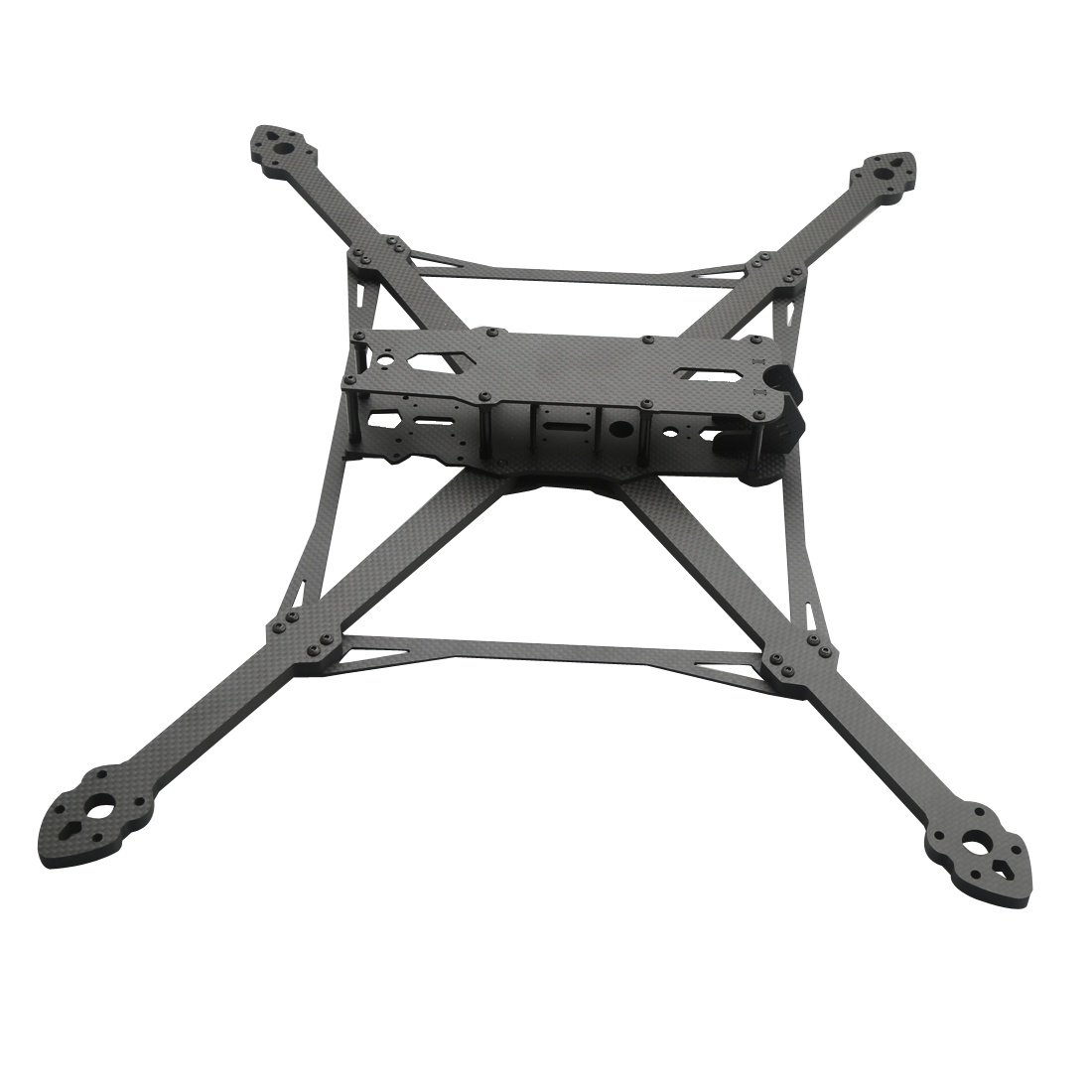

NEEBRC MARK4 V3 Pro 13inch 570mm 15Inch 680mm Carbon Fiber Drone Frame Kit Rack RC Quadcopter FPV Freestyle Long Range DIY

No.1601609734577

Variations

Edit selections

compatible model: FPV Drone

FPV Drone

type: FPV Frame

FPV Frame

model number: Mark4 V3 Pro 13inch

Select variations and quantity

compatible model: FPV Drone

FPV Drone

type: FPV Frame

FPV Frame

model number: Mark4 V3 Pro 13inch

The min. inquiry quantity is 0. Add 0 more to continue.

Subtotal

GET A QUOTE

Key attributes

compatible brand

Other Products

Material

Carbon Fiber

brand name

NEEBRC

private mold

Yes

place of origin

Guangdong, China

Packaging and delivery

Selling Units

Single item

Package size per batch

25X15X10 cm

Gross weight per batch

0.700 kg

Product descriptions from the supplier

Warning/Disclaimer

Compliance Reminder for Prohibited and Restricted productsView more

MARK4 V3 Pro 13inch 570mm 15Inch 680mm Carbon Fiber Drone Frame Kit Rack for RC Quadcopter FPV Freestyle Long Range Plane DIY

Specification:

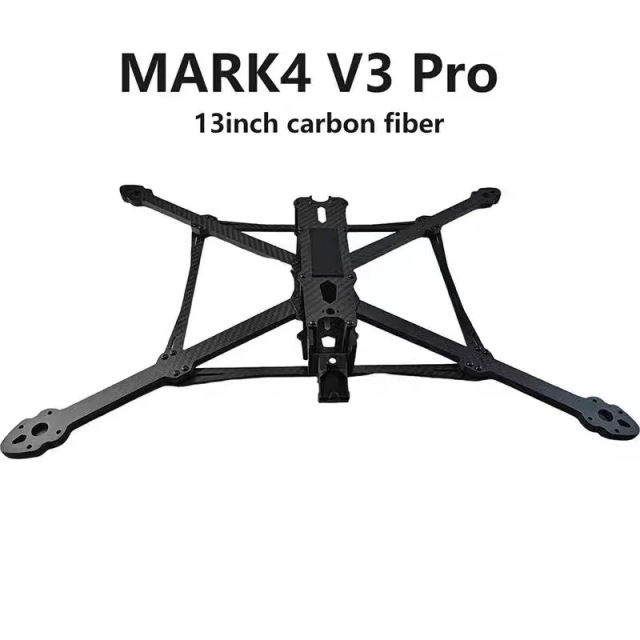

Mark4 V3 Pro 13Inch 570mm Carbon Fiber Frame:
Wheelbase: 570mm

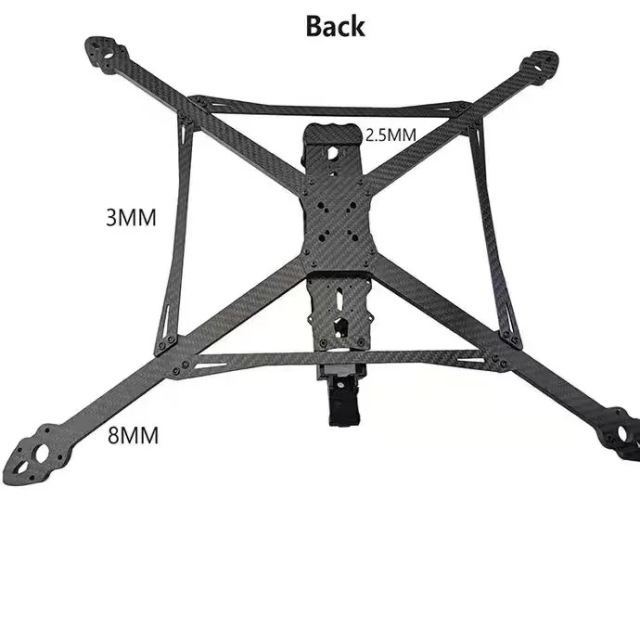

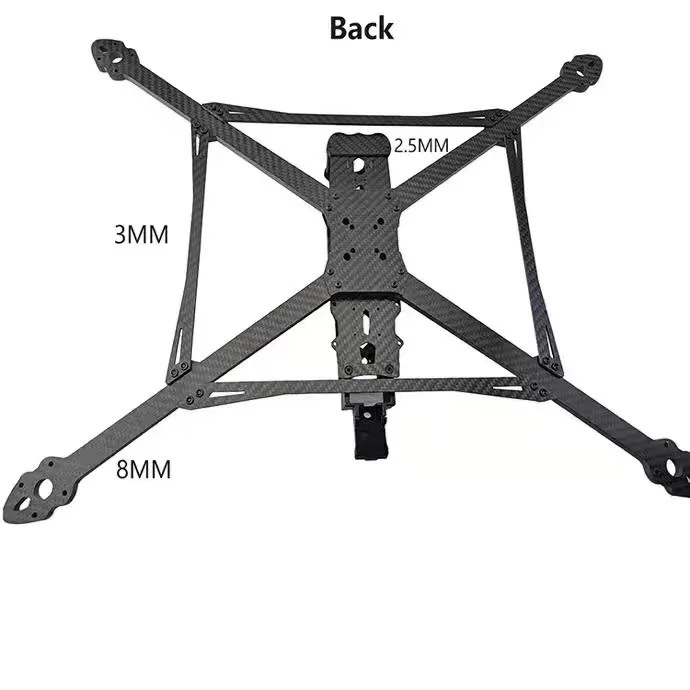

Upper plate Thickness: 2.0mm
Bottom plate Thickness: 3.0mm
Thickness of lower fixed plate: 3.0mm
Thickness of camera side plate: 2.5mm
Front lip plate Thickness: 2.5mm
Rear lip plate Thickness: 2.5mm
Surrounding reinforcement Thickness: 3.0mm
Arm Thickness: 8.0mm
Weight: 560g
Camera mounting spacing:19MM
Flight control mounting hole spacing: 20*20MM / 30.5*30.5MM
VTX mounting hole spacing: 20*20MM / 30.5*30.5MM
Motor mounting hole spacing: 21*21MM
Motor screw hole diameter: 4MM (please make sure your motor hole is 4mm)
Can be adapted to 13inch paddle, 4215 4218 4312 , A4320motor

Mark4 V3 Pro 15Inch 680mm Carbon Fiber Frame:
Wheelbase: 680mm
Upper plate Thickness: 2.0mm
Bottom plate Thickness: 3.0mm
Thickness of lower fixed plate: 3.0mm
Thickness of camera side plate: 2.5mm
Front lip plate Thickness: 2.5mm
Rear lip plate Thickness: 2.5mm
Surrounding reinforcement Thickness: 3.0mm
Arm Thickness: 8.0mm
Weight: 590g
Camera mounting spacing:19MM
Flight control mounting hole spacing: 20*20MM / 30.5*30.5MM
VTX mounting hole spacing: 20*20MM / 30.5*30.5MM
Motor mounting hole spacing: 21*21MM
Motor screw hole diameter: 4MM (please make sure your motor hole is 4mm)
Can be adapted to 15inch paddle, 4218 4312, A4320motor

Package included:

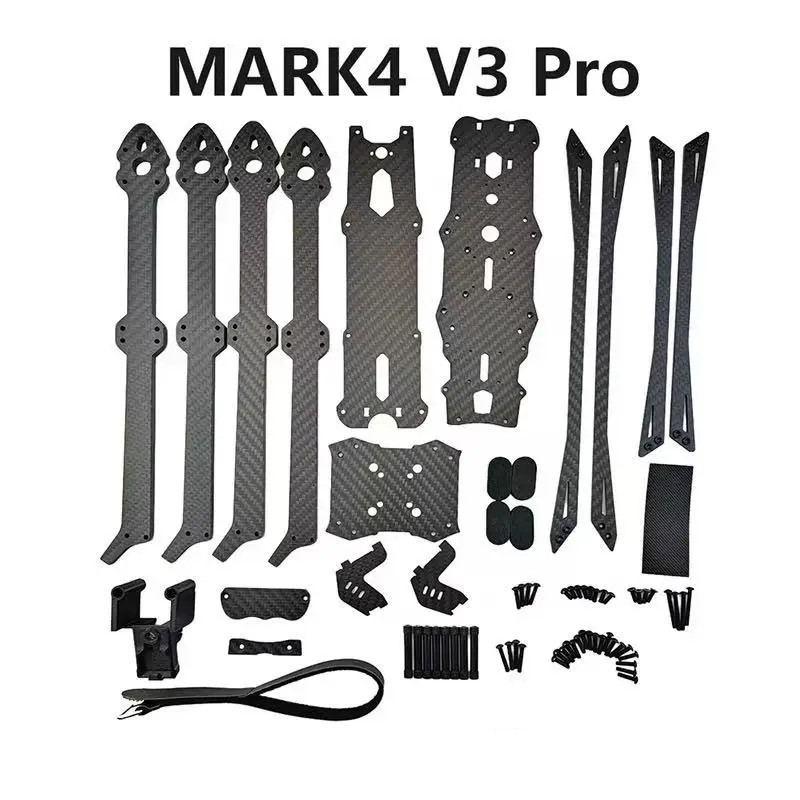

1 x Mark4 V3 Pro Carbon Fiber FPV Frame

FAQ

1.Q:How many years of experience does your company have? A:We have over 10 years of experience in the industry, with multiple channels and customer groups.
2.Q:Why choose us? A:We have our own factory and deep cooperation with many well-known brands in the industry, with more competitive prices and guaranteed product quality.
3.Q:Does your product support customization? A:of course! We provide OEM and ODM services, and can customize product specifications, packaging, etc. according to your needs
4.Q:Is there a bulk discount available? A:Yes, we offer discounted prices for bulk orders. For specific discounts, please feel free to inquire and we are always online
5:A:What is the delivery time? Q:Our standard delivery time is 5-7 days, and customized products take 90-180 days
