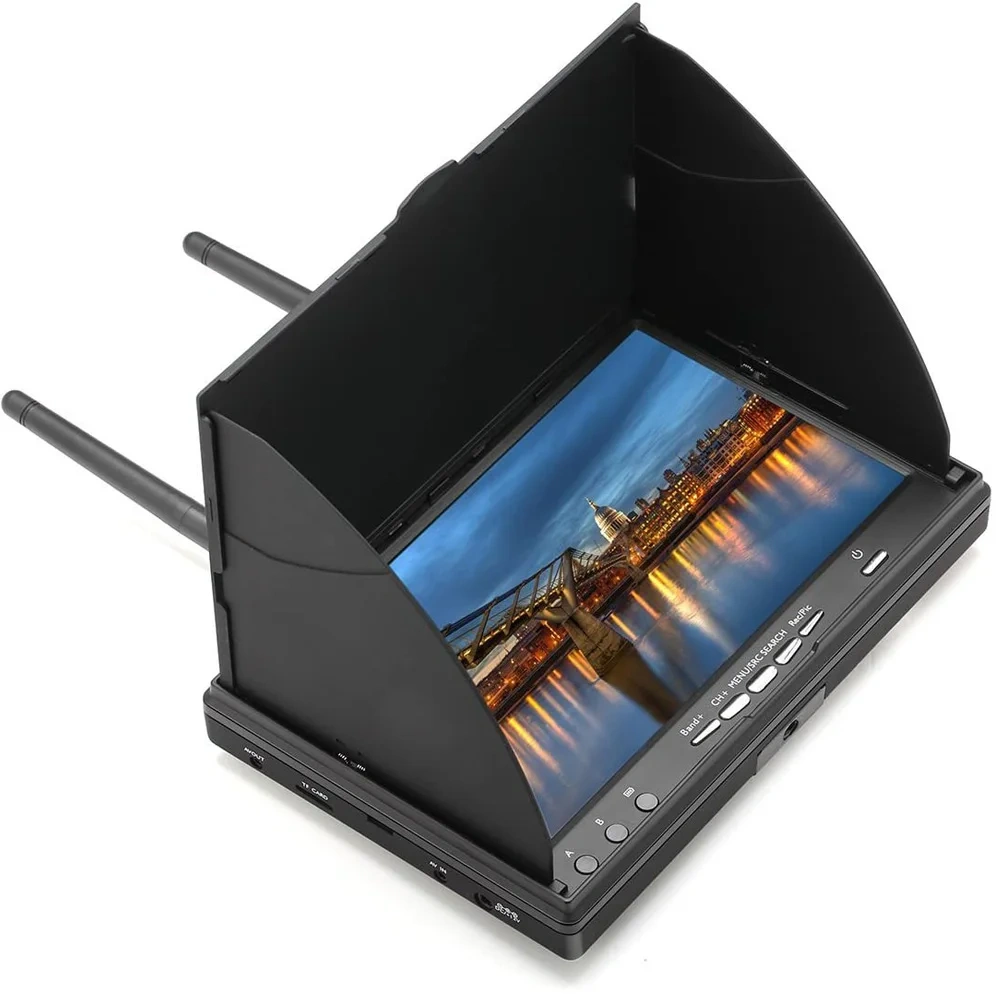

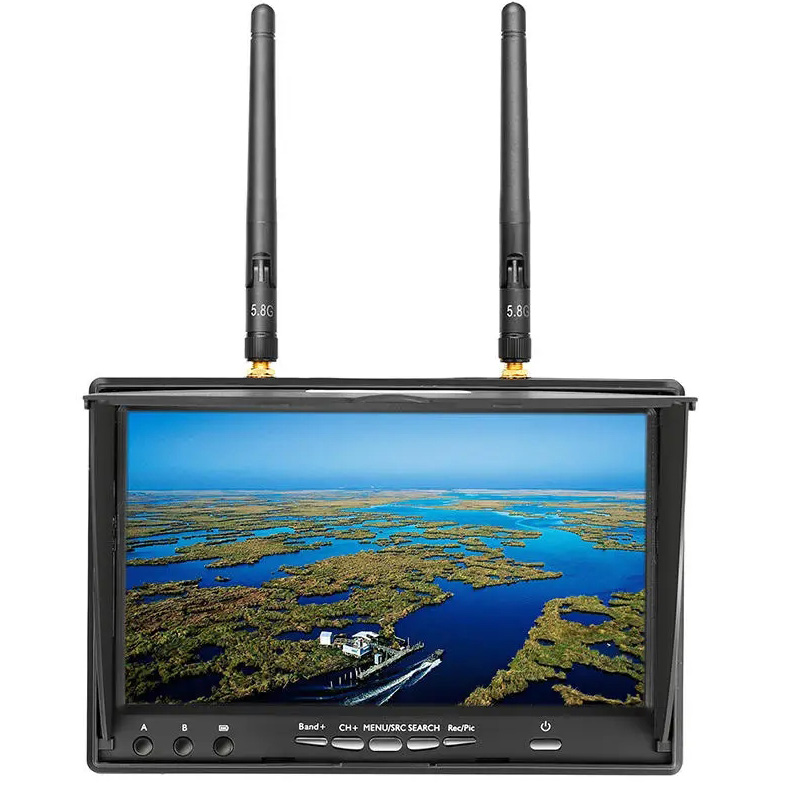

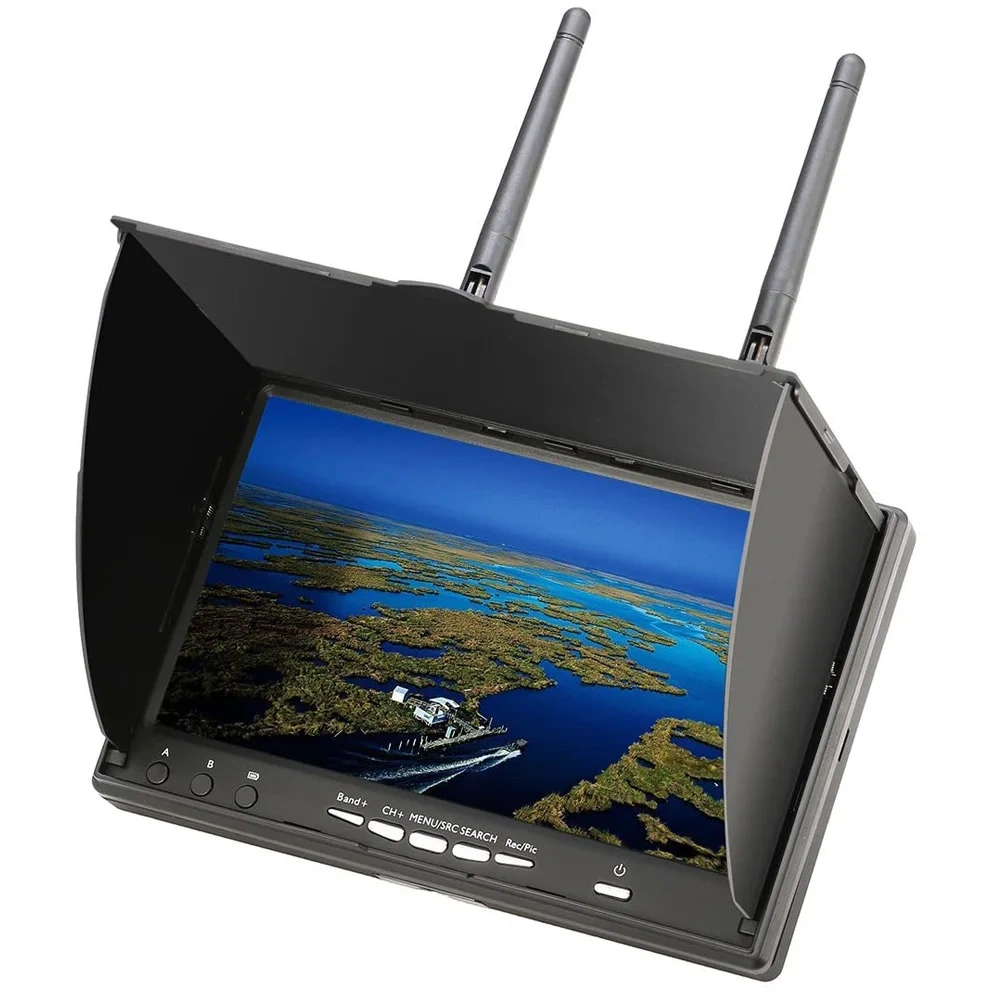

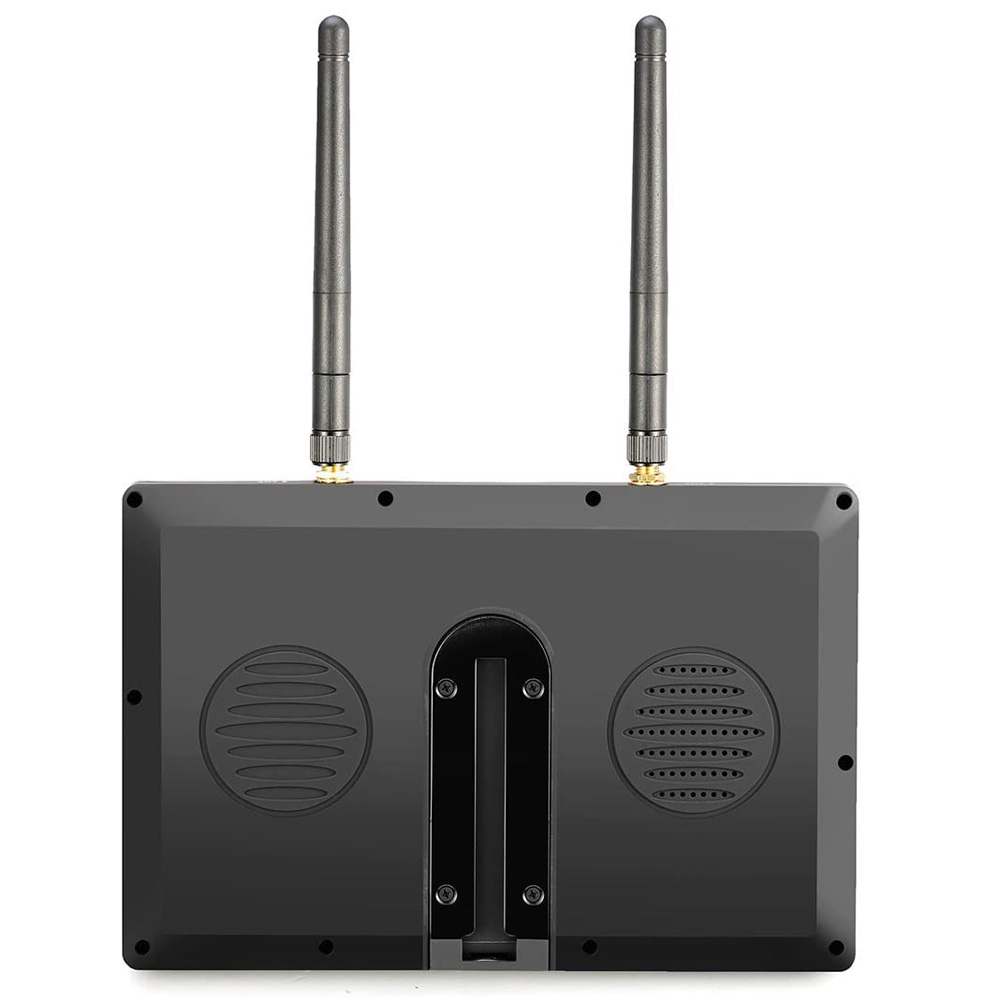

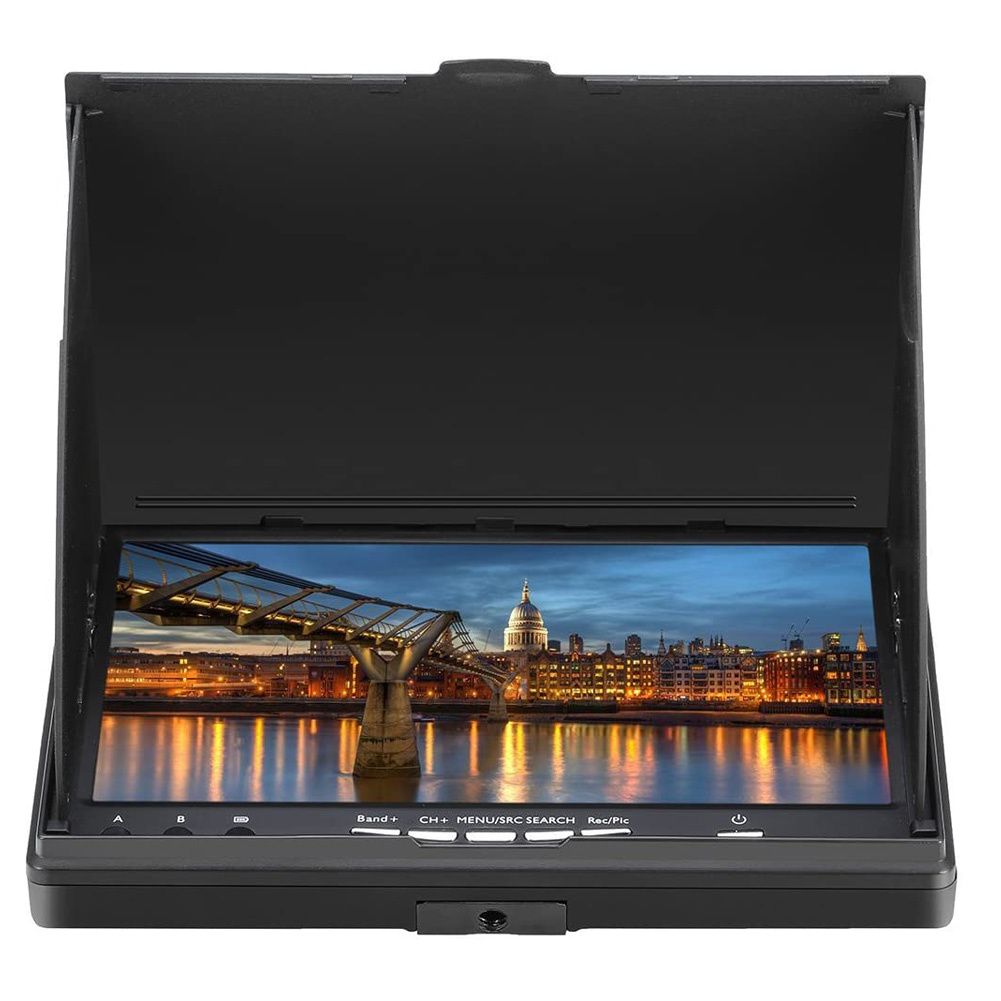

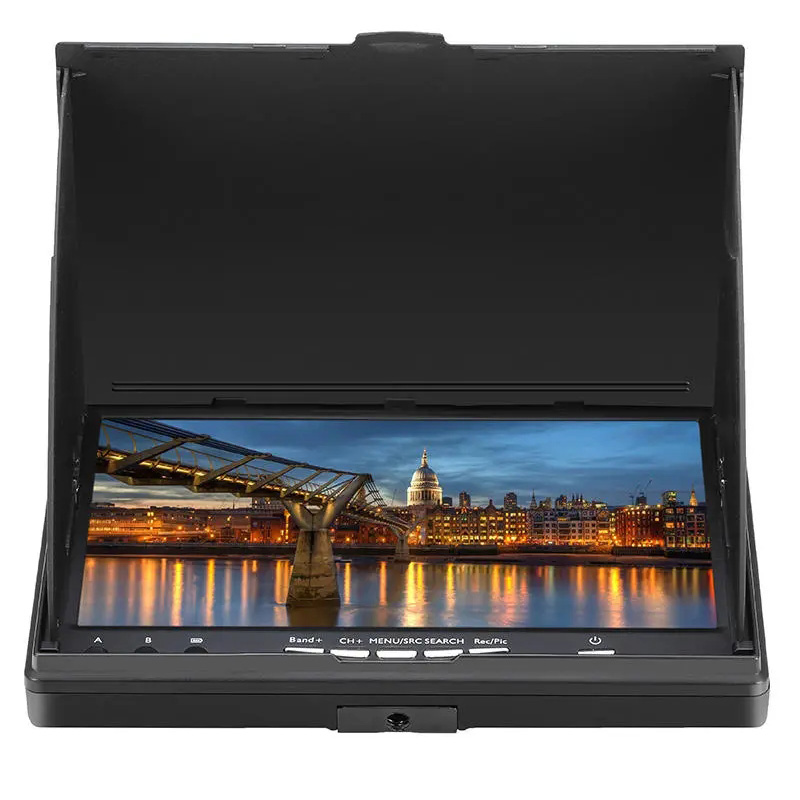

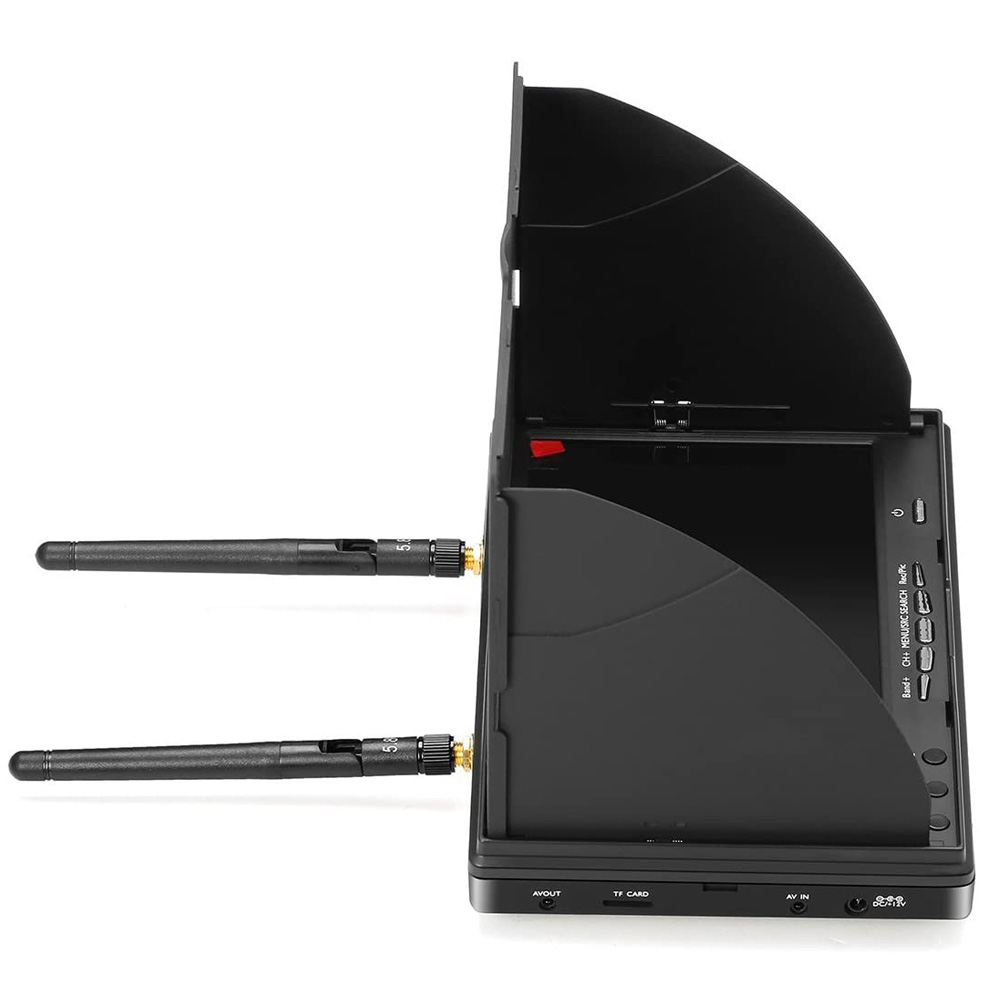

LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte

No.1005006826613109
  • Lightweight & Durable Design:The monitor's lightweight and durable build make it ideal for travel and outdoor use in various environments.
  • Built-in DVR & 2000mAh Battery:Capture your flights with the built-in DVR and enjoy extended outdoor use with the 2000mAh battery.
  • 7 Inch 800x480 TFT LCD Screen:The 7-inch 800x480 TFT LCD screen offers vivid and sharp visuals, perfect for FPV multicopter enthusiasts.
  • Raceband 5.8ghz Fpv Monitor|5.8G 40CH Raceband FPV Monitor:Experience crystal-clear video with the 5.8G 40CH Raceband FPV Monitor, ensuring stable reception and a wide frequency range.
  • Built-in Dual Receiver:Equipped with a dual receiver, this monitor guarantees strong and reliable signal reception, even in challenging conditions.
Variations
Edit selections
Color: 5802D With DVR US
5802D With DVR US
5802D With DVR EU
Select variations and quantity
Color: 5802D With DVR US
The min. inquiry quantity is 0. Add 0 more to continue.
5802D With DVR US
-
5802D With DVR EU
-
Subtotal
-
  • LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte
  • LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte
  • LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte
  • LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte
  • LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte
  • LCD5802D 5802 5.8G 40CH 7 Inch Raceband FPV Monitor 800x480 With DVR Build-in Battery Video Screen For FPV Multicopte

Description

Video Size: 7 Inch TFT LCD ScreennResolution: 800x480 PixelsnBrightness: 600cd/m2nBacklit Type: LED Dynamic VideonBattery: Built-in 2000mAh Li-Polymer BatterynConnectivity: USB2.0, RP-SMA Antenna Interfacennn|Raceband 5.8ghz Fpv Monitor|Raceband 5.8ghz|nn**Unmatched Clarity and Versatility**nThe LCD5802D 5.8G 40CH 7 Inch Raceband FPV Monitor is a state-of-the-art device designed for the avid FPV enthusiast. With its 7-inch TFT LCD screen and a resolution of 800x480 pixels, it offers a clear and vivid display, perfect for capturing every detail of your FPV flights. The brightness of 600cd/m2 ensures that the screen is visible even under direct sunlight, making it an ideal choice for outdoor use. The LED dynamic backlight provides a long-lasting and energy-efficient display, while the built-in 2000mAh Li-Polymer battery offers extended use without the need for constant recharging.nn**Advanced Connectivity and Features**nThis raceband FPV monitor is not just about visual clarity; it's packed with advanced connectivity options. With dual 5.8G 32CH receivers, it offers a wide range of channels and a strong signal reception, ensuring that you can fly with confidence. The USB2.0 interface allows for easy data transfer and firmware updates, while the RP-SMA antenna interface enables you to connect to various antennas for optimal signal reception. The monitor also features a built-in DVR function, enabling you to record your flights and relive the action later.nn**Designed for FPV Enthusiasts**nThe LCD5802D is not just a monitor; it's a tool for the serious FPV multicopter pilot. Its lightweight and durable design make it perfect for travel and outdoor use, while the built-in battery ensures that you can take it anywhere without the need for additional power sources. The monitor's compact size of 180mm x 120mm x 50mm makes it easy to mount on your FPV rig, and its compatibility with up to 32GB C10 SD cards means you can store and review your footage with ease. Whether you're a seasoned pilot or a newcomer to the world of FPV, the LCD5802D is a must-have accessory for your FPV setup.

Specification:

- Video size: PAL(720*576); NTSC(720*480)

- Backlit type: LED dynamic video, MP4, single audio

- Storage: Flash 128MB, Mini SD(TF)card, Max.support 32GB

- Wireless receive: 5.8G 32CH -90dBm receive sensitivity

- Language: 5

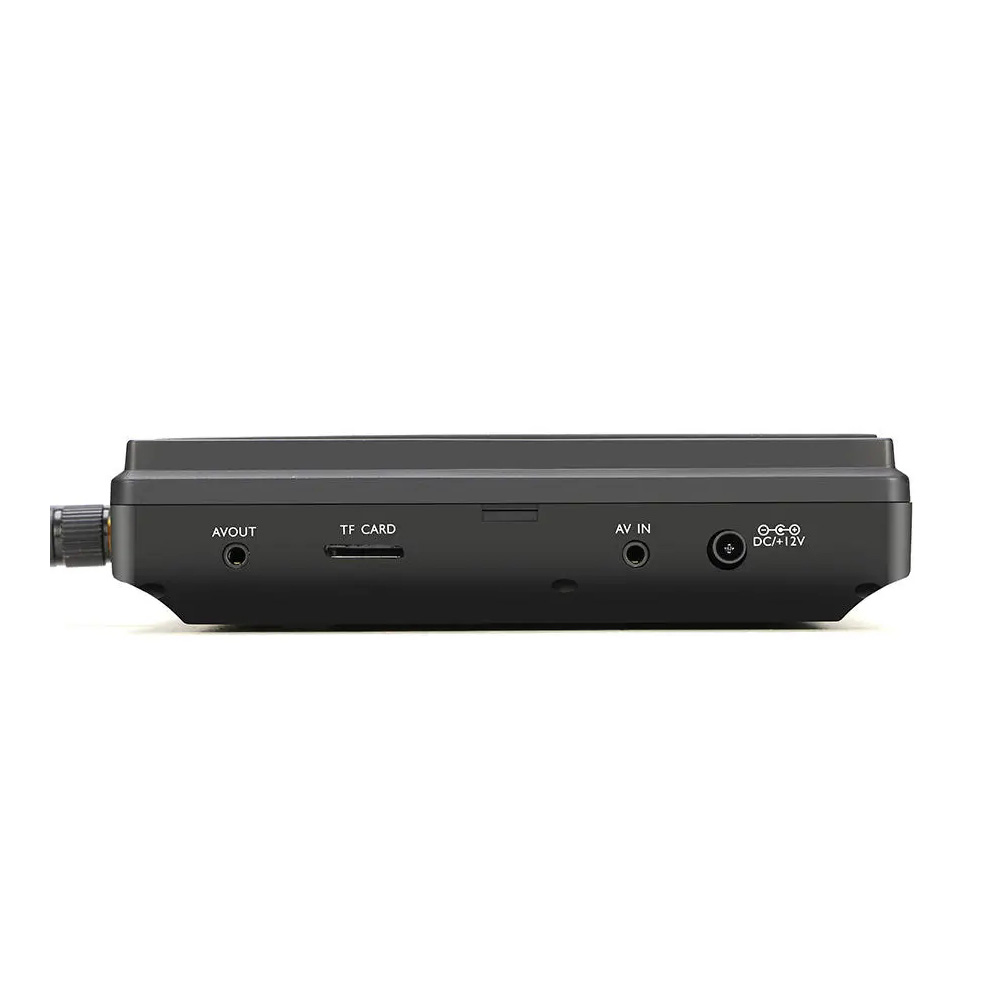

- AV output: single track, video output

- AV input: single track, video input

- DC IN: 7-28V

- AAT interface: 2Pin data interface

- Antenna interface: RP SMA Inner Needle SMA Head

- Data output: 3.5mm

- USB communication: USB2.0


Item Name: LCD5802D Monitor

Built-in 5.8Ghz Dual diversity receiver automatically for best reception

Built-in 2CH 5.8Ghz AV output and 1CH AV input

Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V

Work status OSD display : RSSI indication ; Battery indicator;Channel indication

A key to automatic signal search

Support Chinese and English menu

Format: JPEG, AVI

Screen size:7”

Screen type:TFT LCD Screen/long life, LED backlight

Resolution: 800*480

Brightness: 600cd/m2

View Angle:140/120degree (Horizontal/Vertical)

Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)

Working Voltage: DC 7~16V

Power Consumption: max 650 mA @12V

Battery charging current : 850mA @12V ( max )

Working temperature: -10℃~+ 65 ℃

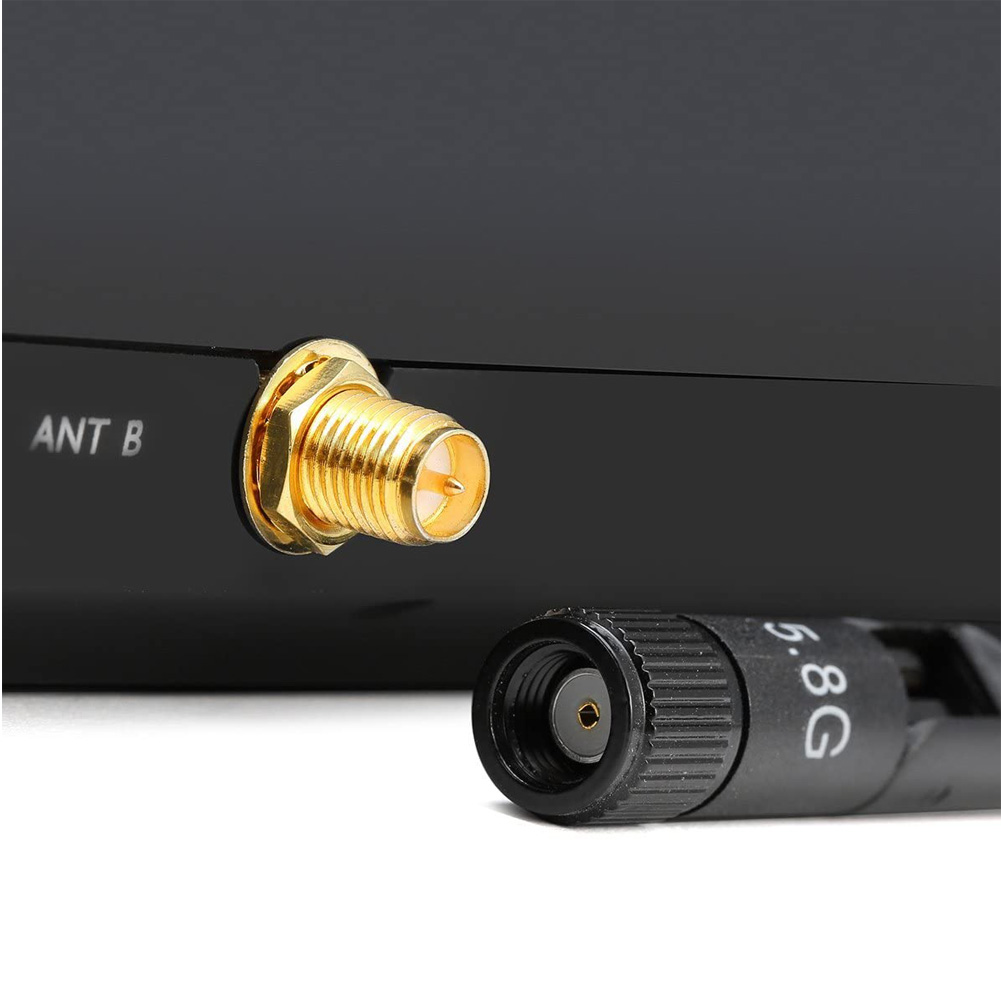

Connectors:RP-SMA female(outer needle)

Antennas Connectors:RP-SMA male (inner hole)

Support up to 32G , C10 SD Card.

Features:

With DVR function

Built-in Dual Receiver for best reception

Dual buffered AV outputs

Not affect by 2.4GHz R/C Radios

AV Receiver with Diversity inputs

Small, light weight, durable

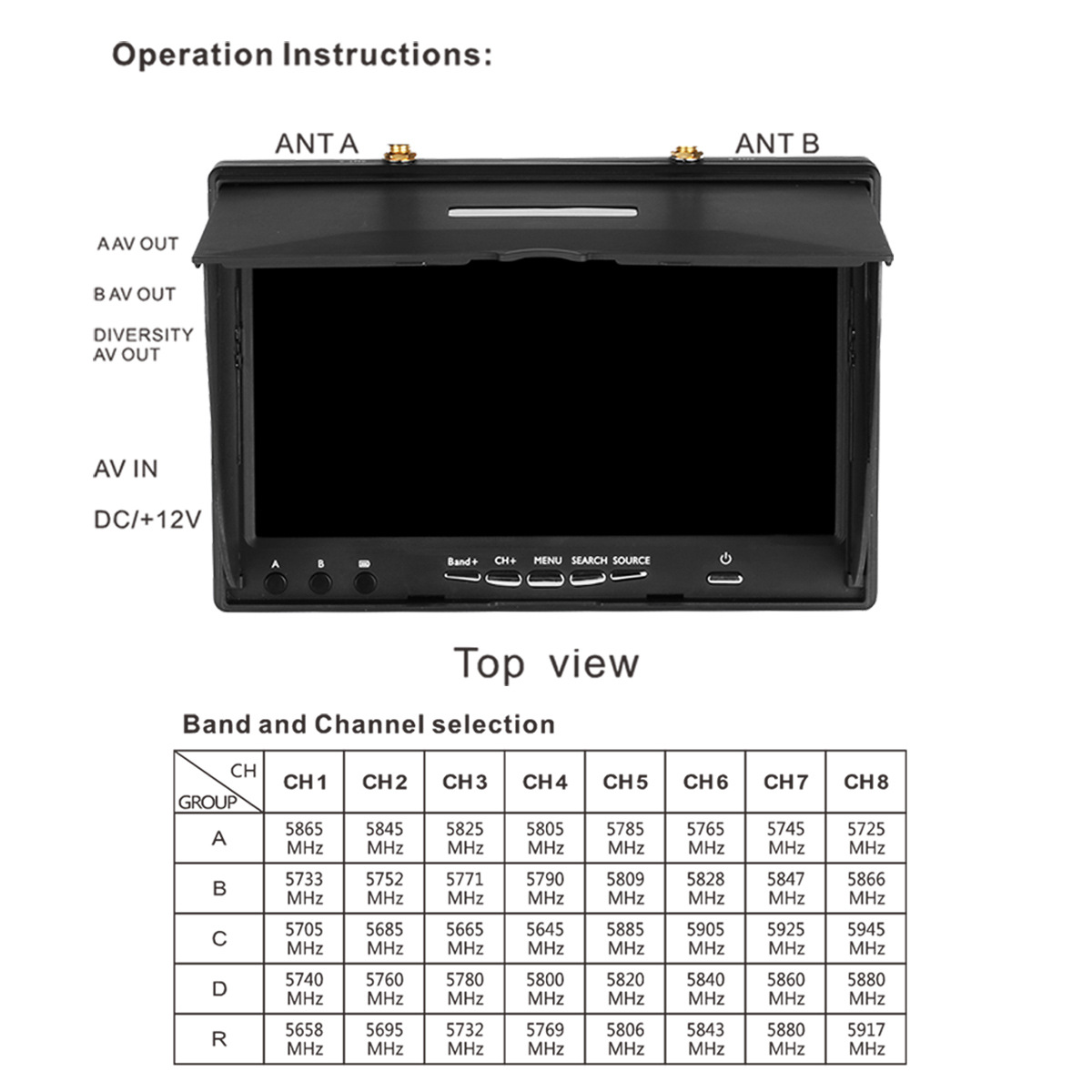

5 Bands and total 40 Channels

Built-in battery , easy to carry and outdoor use

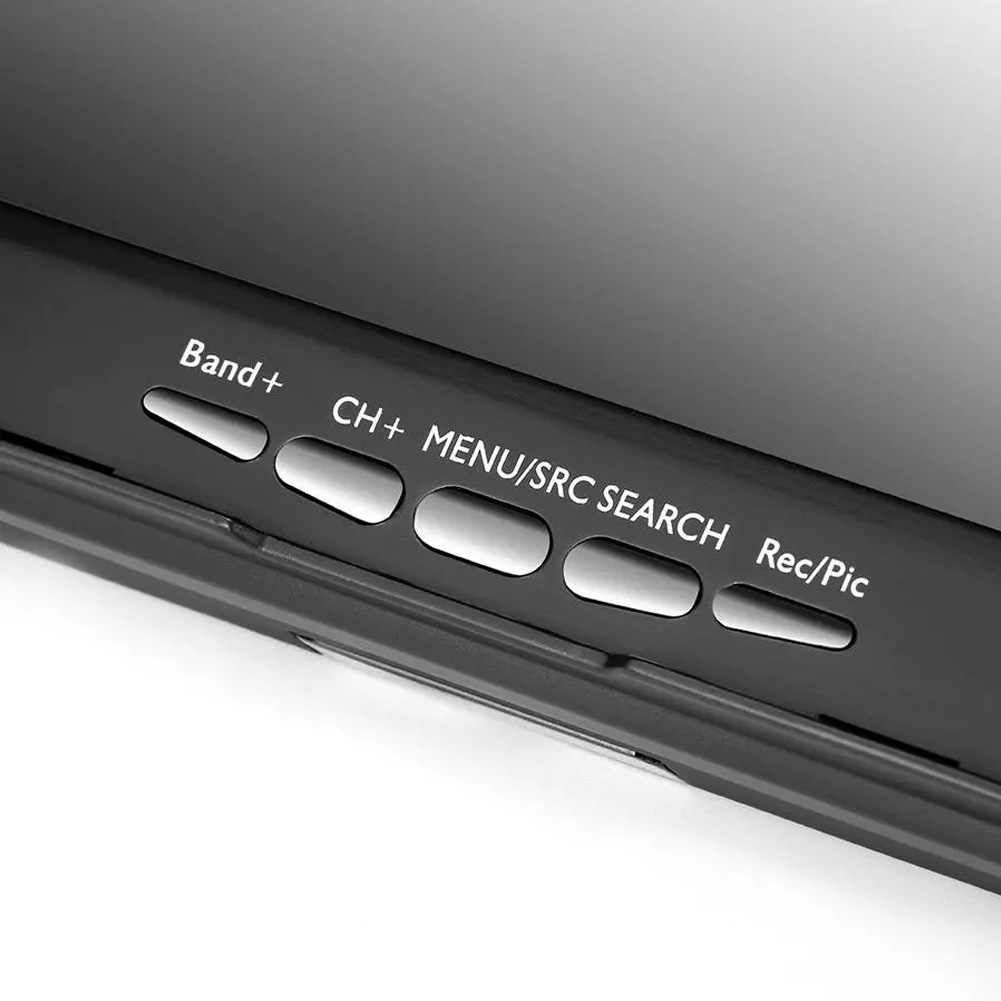

A key to automatic signal search,Simple operation

Work status OSD display:Always be aware of the device working condition.

Notice: It can't receive 2 different channels at the same time
