HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver

No.1601245532138
Variations
Edit selections
compatible model: for fpvfreestyle
for fpvfreestyle
type: Receiver
Receiver
model number: EP2 RX
EP2 RX
EP1 RX
Select variations and quantity
compatible model: for fpvfreestyle
for fpvfreestyle
type: Receiver
Receiver
model number: EP2 RX
The min. inquiry quantity is 0. Add 0 more to continue.
EP2 RX
-
EP1 RX
-
Subtotal
-
GET A QUOTE
GET A QUOTE
  • HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver
  • HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver
  • HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver
  • HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver
  • HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver
  • HappyModel EP1 EP2 RX 2.4G ExpressLRS ELRS Nano Long Range Receiver ES24TX Module RC Airplane FPV Receiver

Description

Key attributes

brand name
HappyModel
private mold
No
place of origin
Guangdong, China
Model
ACM0218

Packaging and delivery

Selling Units
Single item
Package size per batch
14X11X1 cm
Gross weight per batch
0.010 kg

Product descriptions from the supplier

Warning/Disclaimer
Compliance Reminder for Prohibited and Restricted products

Video Description

[CODE_4]: MEDIA_ELEMENT_ERROR: Format error
Product Description

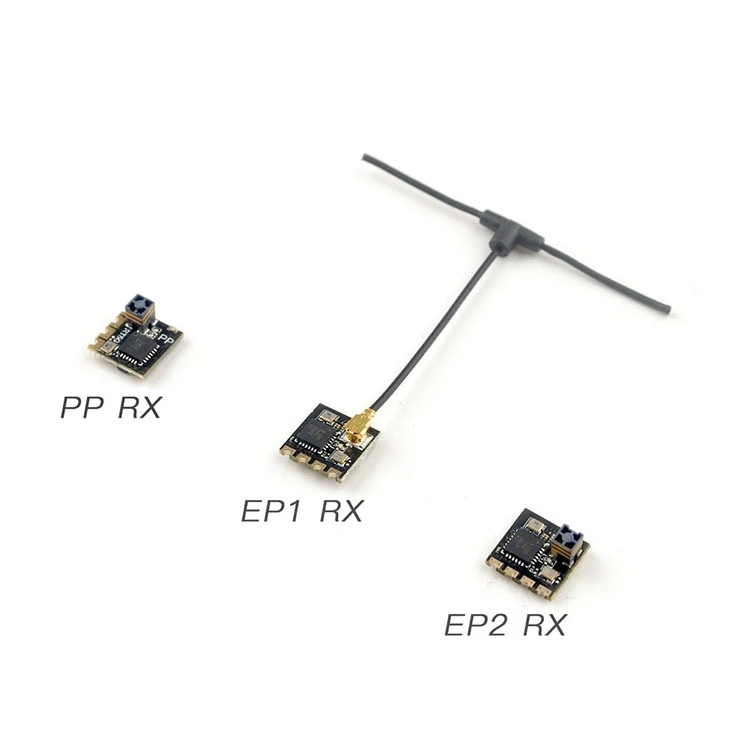

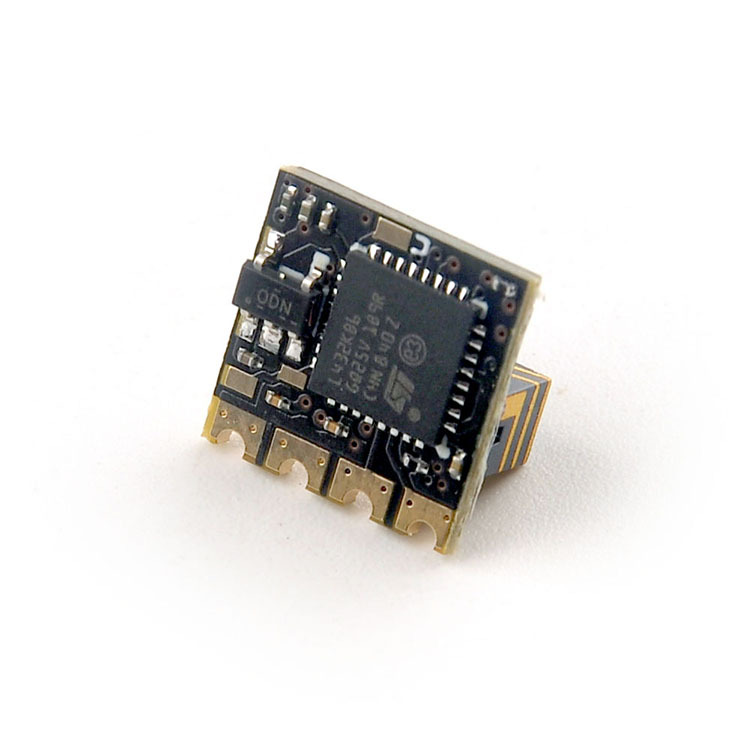

PP_RX
Type: ISM
STM32L432KBU6 MCU
SX1280IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.47gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB

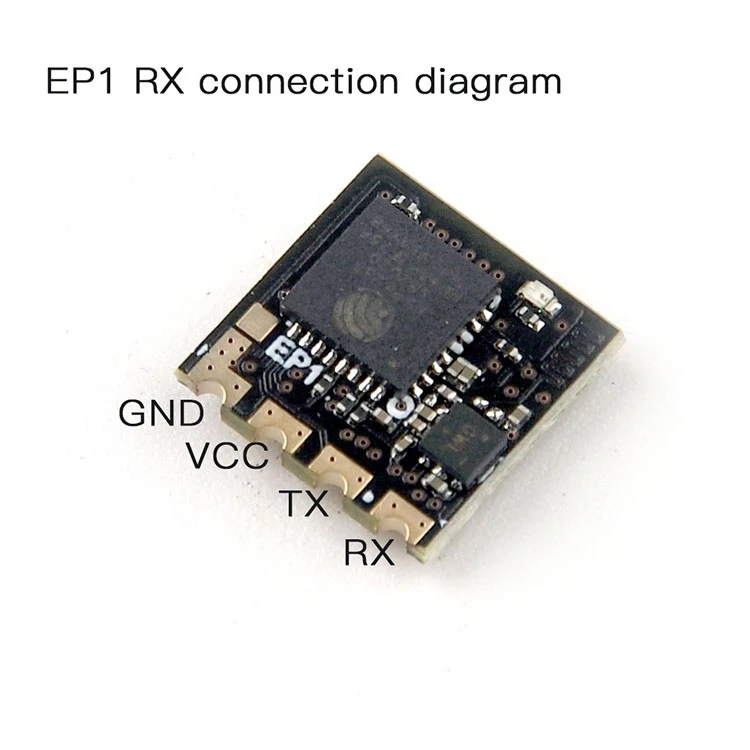

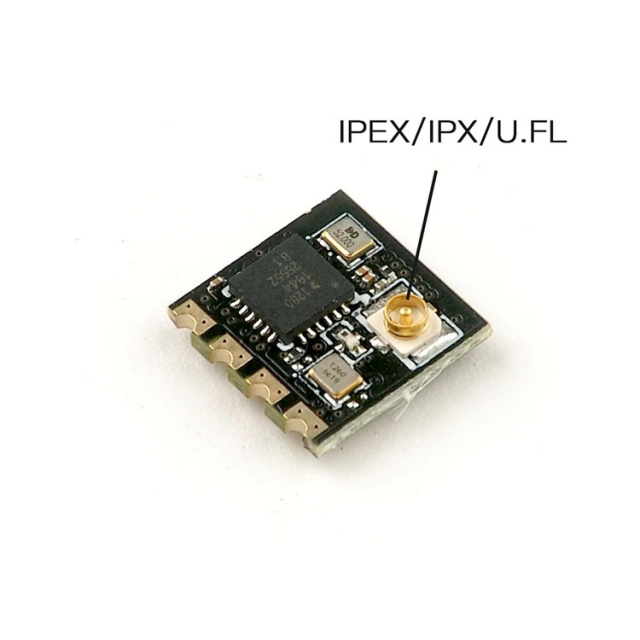

EP1_RX
Type: ISM
ESP8285 MCU
SX1280IMLTRT RF Module
Omnidirectional antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v

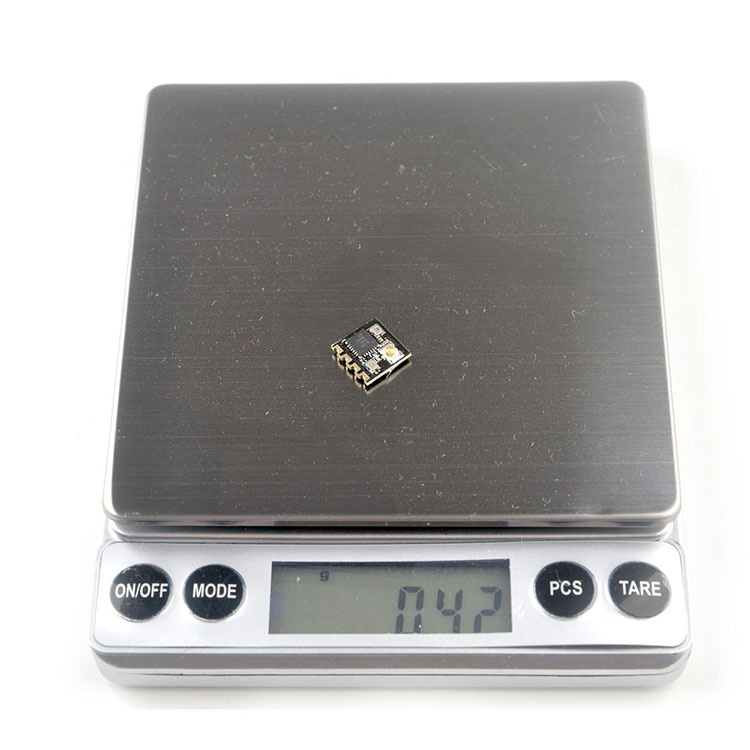

Weight: 0.42gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB

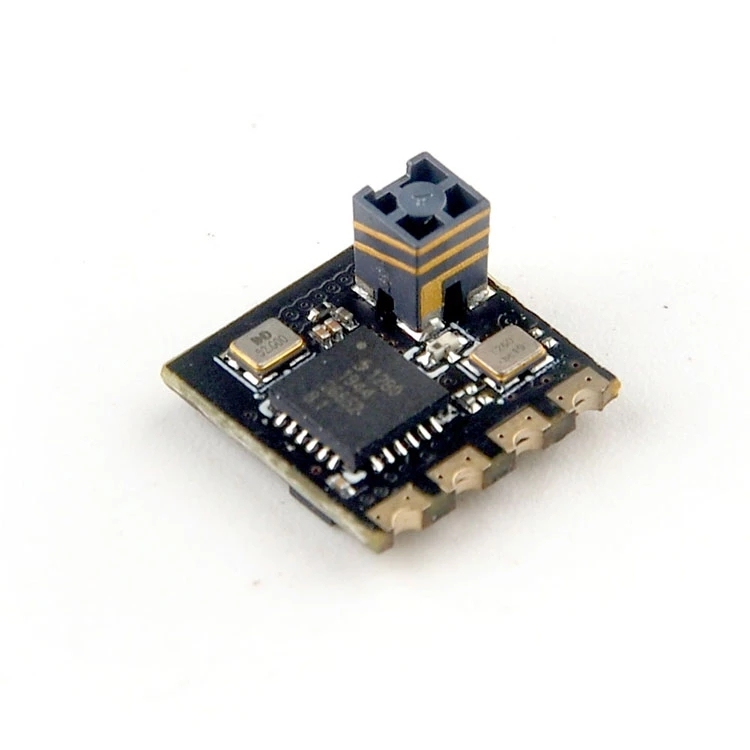

EP2_RX
Specifications:
Type: ISM
ESP8285 MCU
SX1280IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.44gram
Dimension: 10mm*10mm*6mm
Peak gain: 3.7dB
