Description

Key attributes

Type

Gk-v3

Material

carbon fiber

Age Range

14 Years & up

Use

Vehicles & Remote Control Toys

Gender

Unisex

Brand Name

Model Number

GK-V3

Place of Origin

Guangdong, China

Packaging and delivery

Selling Units

Single item

Package size per batch

25X15X15 cm

Gross weight per batch

0.600 kg

Product descriptions from the supplier

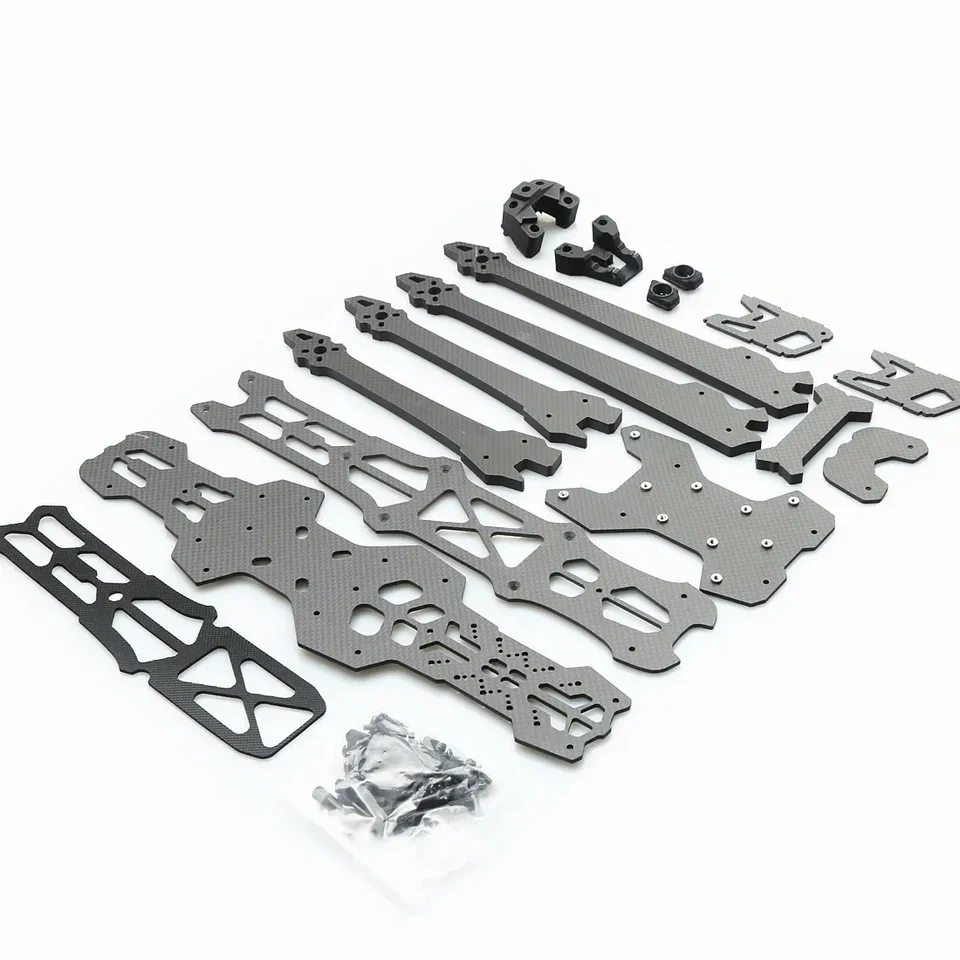

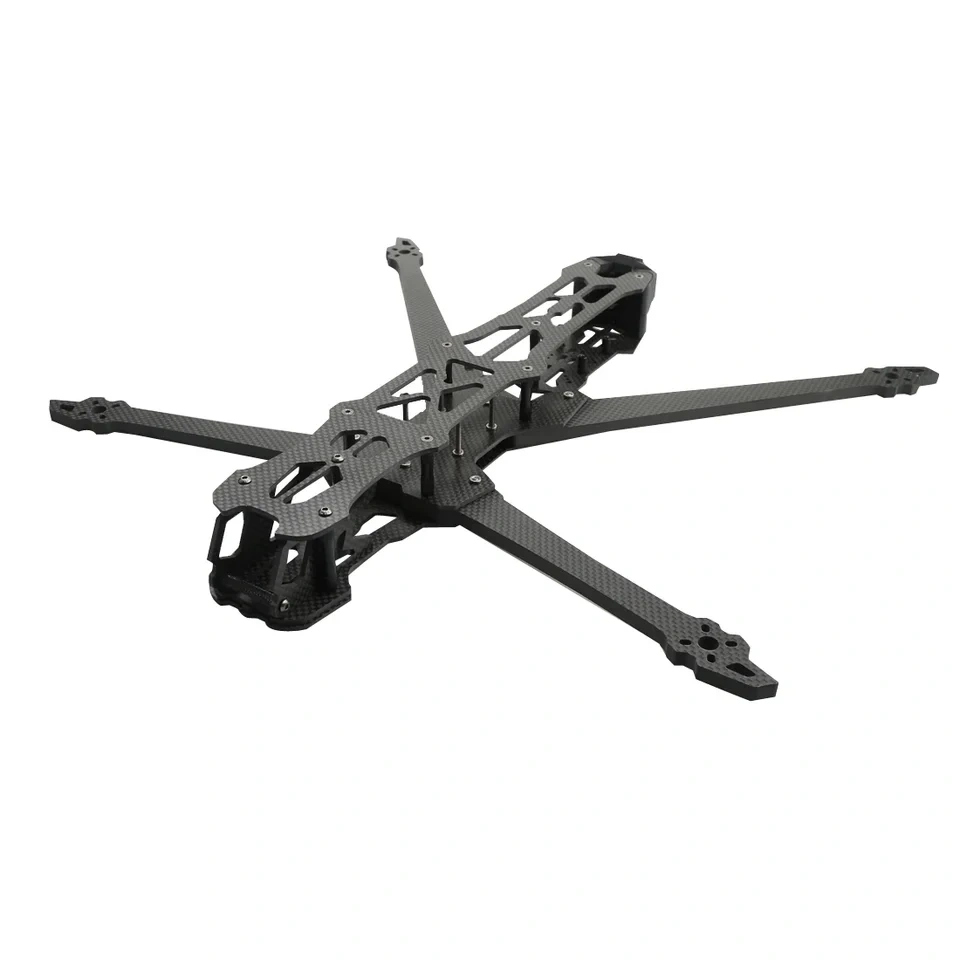

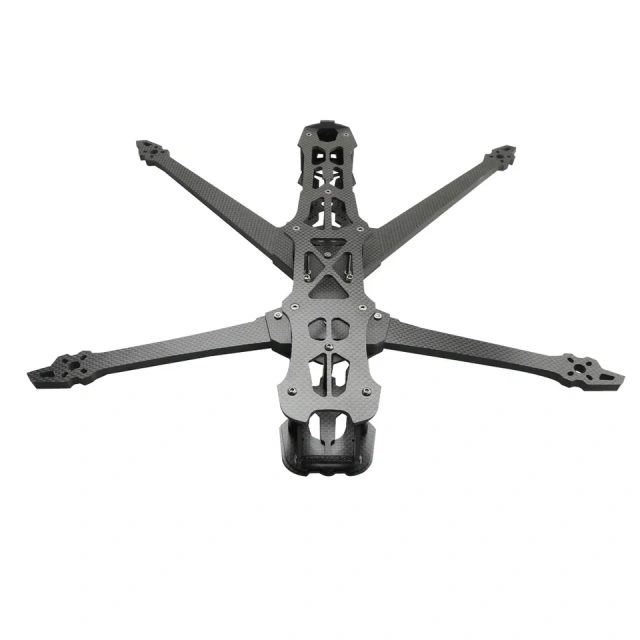

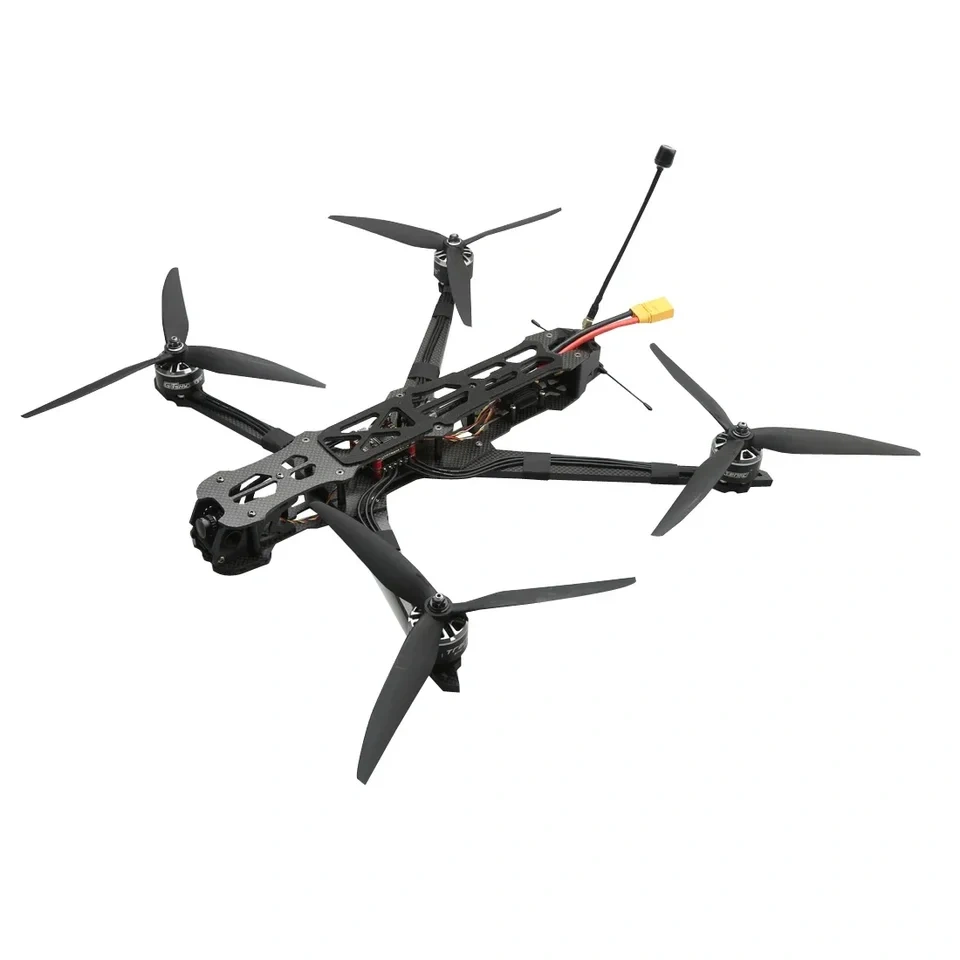

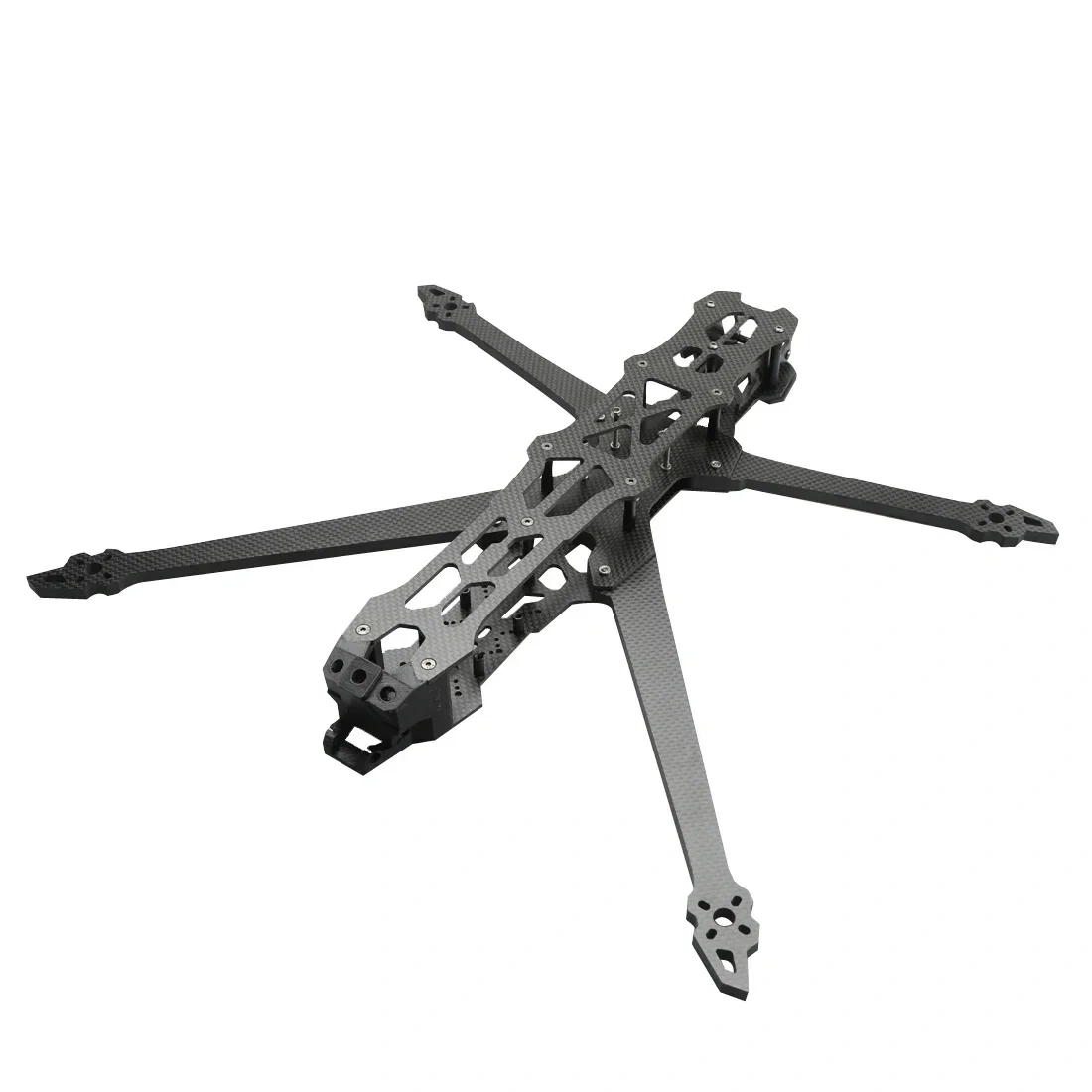

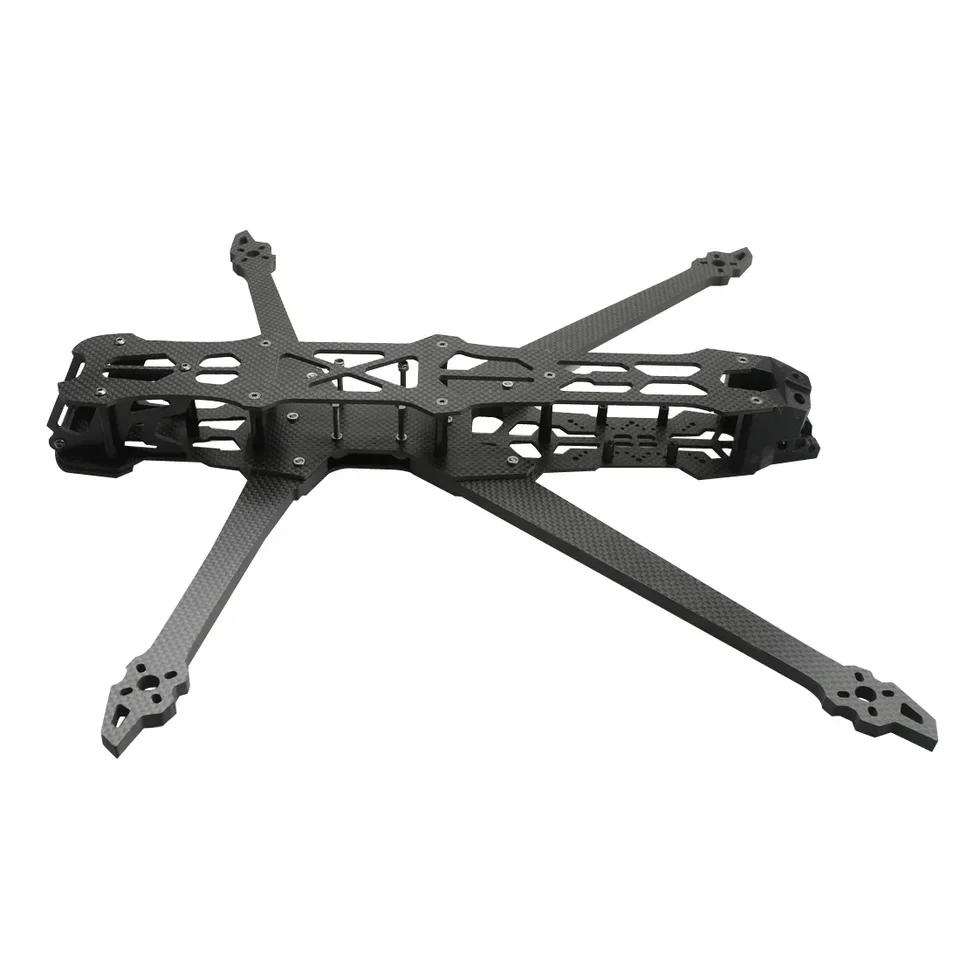

GK-V3 10/13inch/15inch Frame Kit 435mm/550mm/680mm Carbon Fiber for Freestyle Long Range Racing Drone RC Quadcopter Multicopter

Attention: This model has been upgraded to the latest thickened model for greater durability and stability.

Description:
high-quality pure carbon fiber material, strong stability and durability, long top and bottom plate design, can carry a larger
capacity battery and load weight

Specification:
Model: GK-V3 10 inch FPV Drone Frame
wheelbase:435mm
size:490*490*42mm
weight:457g
top thickness:2.5mm
Base plate thickness: 2.5 mm
arm thickness: 7 mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 3115/3210/3214
ESC: 70A-80A 6s
propeller: 10 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6S-8000MAH-12000MAH

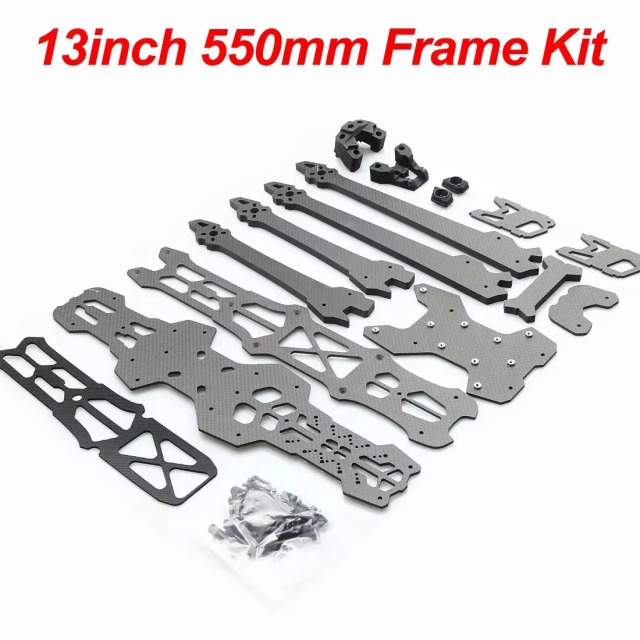

Model: GK-V3 13 inch FPV Drone Frame
wheelbase:550mm
size:630*630*42mm
weight:594g
top thickness:2.5mm
Base plate thickness:2.5mm
arm thickness:7mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 25*25mm & 30*30mm

Recommended Configuration: (not included)
motor: 4215/4218/4312
ESC: 80A-100A 6s-8s
propeller: 13 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6s-8s-8000MAH-16000MAH

Model: GK-V3 15 inch FPV Drone Frame
wheelbase:680mm
weight:730g
top thickness:2.5mm
Base plate thickness:2.5mm
arm thickness:7mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 25*25mm & 30*30mm

Recommended Configuration: (not included)
motor: 4215/4218/4312
ESC: 80A-100A 6s-8s
propeller: 13 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6s-8s-8000MAH-16000MAH

Package included:
1*GK-10inch/13inch/15inch-V3 FPV Drone Frame
