Motor Components, RC Quadcopter Parts, RC Helicopter Parts, RC Airplane Parts, RC Drone Spare Parts
Material
Plastic
Age Range
14 Years & up
Use
Vehicles & Remote Control Toys
Gender
Unisex
Brand Name
Flycolor
Model Number
X-cross
Place of Origin
Guangdong, China
Product name

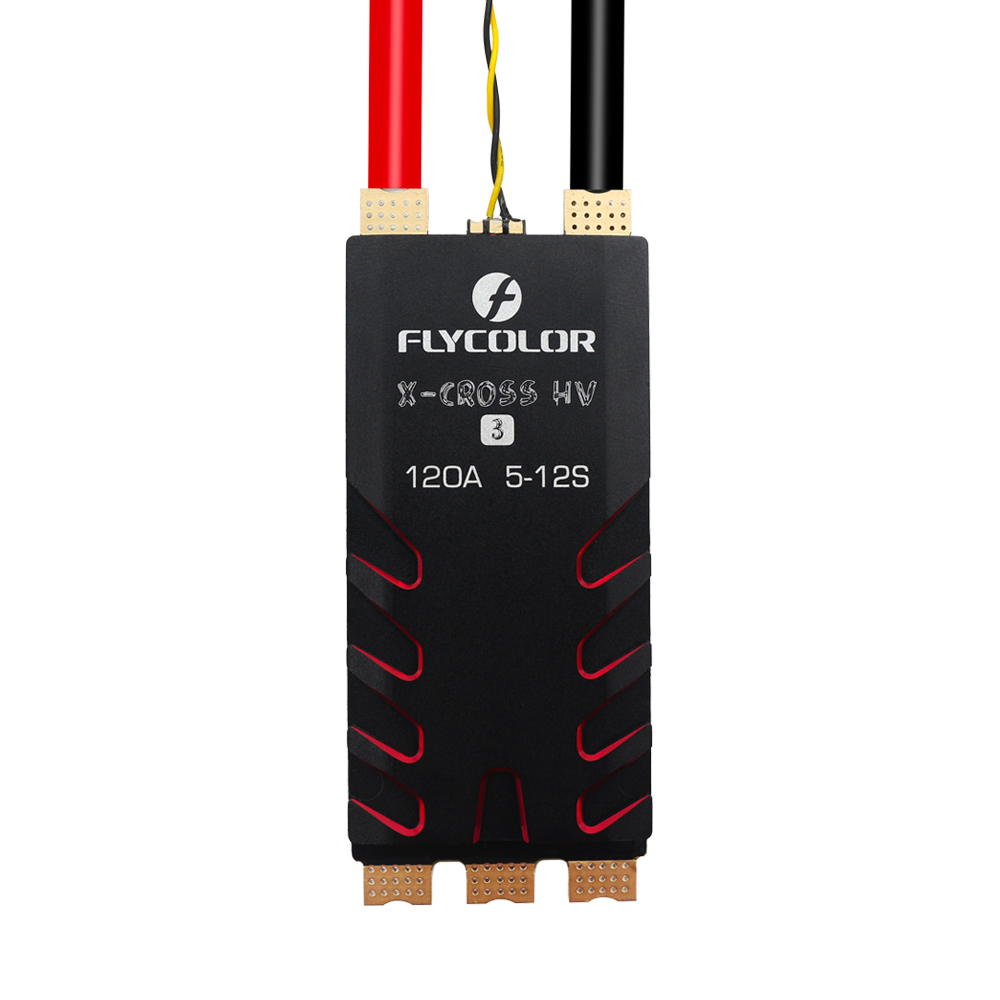

X-cross HV ESC
Color
Picture Shown
Battery
5-12S
BEC
No
Continuous current
60A/80A/120A/160A
Instantaneous current
80A/100A/150A/180A
Weight
25.5g/129g
MOQ
5pcs
Packaging and delivery
Selling Units
Multiple of 5 items
Package size per batch
13X12X10 cm
Gross weight per batch
0.500 kg
Product descriptions from the supplier
Specification
Main features
● ARM 32-bit Cortex MCU, frequency up to 48 MHZ.● International famous brand MOSFET with high performance and low ESR, not afraid of large current;● BLHeli_32 firmware,which is designed for superior functionality and performance.● Wide voltage support, up to 12S liPo, suitable for x-class drone.● Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) andMultshot (5- 25us). The input signal is automatically detected by the ESC upon power up.Dshot signal is supported at any rate.● Small size, light weight, suitable for the drone with narrow arms.● Damped light does regenerative braking, causing very fast motor retardation, and inherently also does activefreewheeling.● The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signaltransmission, and makes flight more stable.● Aluminum heat sink effectively slow down the temperature rise.
