Description

Key attributes

Thermal Sensitivity

50 mk

Field of View

49.1°x38.74°(9.1mm)

Thermal Image Pixel

640x512

Display resolution

none

Image Frequency

50 Hz

Thermal color palettes

4 Color Palettes

Brand Name

IRVOTEX

Model Number

FE-S-Q09V2

Place of Origin

China

Objective Lens

9.1mm,F1.0

Focusing Method

Manual

Interface

CVBS & UART

Resolution, pixels

640x512/12μm

Digital Zoom

1-8x

Reticle

Whitehot / Blackhot /lron /Rainbow

Power Input

DC 4.5 ~18V

Power Consumption

<1W

Reliability

200g,4ms, Back Peak Sawtooth, 3 Axes, 6 Directions

Operation Temperature

-20'C~+55°C

Packaging and delivery

Selling Units

Single item

Package size per batch

2.5X2.5X4.2 cm

Gross weight per batch

0.042 kg

Product descriptions from the supplier

Title goes here.

The core module adopts a high-reliability infrared detector, offering excellent shock resistance and anti-vibration capabilities. It is independently developed, with core components ranging from the lens, detector, to structural parts, ensuring technological security and autonomous reliability. Featuring an integrated design of both hardware and software, it effectively compensates for energy drift, maximizing image clarity and smooth video quality while maintaining simplicity and ease of use.

With outstanding performance, stable structure, and flexible configurability, the core module is specifically designed for drone applications. It is also suitable for the development and integration of infrared thermal imaging equipment/systems across various fields, as well as the integration of imaging devices and optoelectronic systems. Applications include vehicle-mounted night vision, security monitoring, outdoor sports, fire rescue, law enforcement search and rescue, and more.

Products Description

Model	FE-S-Q09V2
Resolution	640x512/ 12μm
Objective Lens	9.1mm，F1.0
Focusing Method	Manual
NETD	s50mk，@F1.0，300K
Eyepiece Diopter	≤ 50Hz
Spectral Band	8~14um
Exit Pupil Diameter	14mm
lmage correction	Shutter/Shutterless (Selectable)
Brightness Contrast Adjustment	Auto/Manual
Digital Zoom	1-8x
Reticle	Show/Hide/Move
Pseudo-color	Whitehot / Blackhot /lron /Rainbow
Reliability	Non-uniformity Correction, Digital Filtering for Noise Reduction, Digital Detail Enhancement
Humidness	5~95%，Non-condensing
Operation Temperature	-20’C~+55°C
Storage Temperature	-55"C~+70°C
Field of View	49.1°x38.74'(9.1mm)
Analog Video	CVBS
Communication interface	UART
Weight	≤ 40g+2g (With Lens)
Dimensions	25mmx25mmx42mm(with Lens)

About Us

Exhibitions

FAQ

1.Are you a manufacturer or a trader?

We are professional manufacturers of optoelectronic products. Our factory strictly adheres to ISO 9001:2015, ISO 14001:2015

and ISO 45001:2018 standards.

2.Do you provide customization service?

Yes, we provide product customization, OEM and ODM services. We have our own R&D team and factories.

3.What is your payment term?

Payment can be made via Alibaba Trade Assurance, T/T in advance, or through communication with us.

4.How can we guarantee quality?

We always provide a pre-production sample before mass production; we always conduct final inspection before shipment.

5.What can you buy from us?

Thermal Scopes, Thermal Camera Cores, Night Vision Devices, Scope Sights, Binoculars, Thermal Monoculars, Uncooled

Infrared Modules, Cooled Infrared Modules, Infrared Optical Materials, Infrared Detectors, Infrared Lens Assemblies.

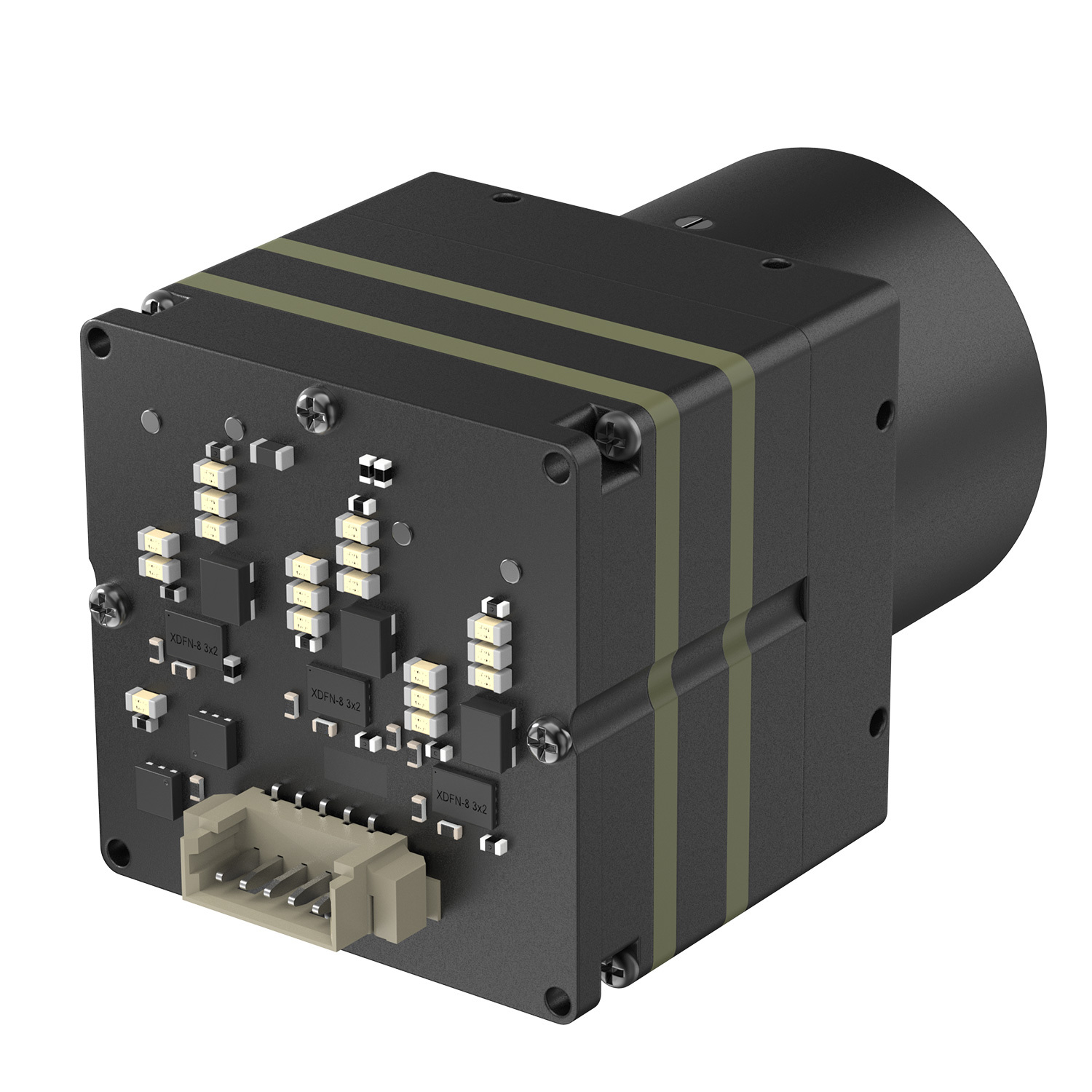

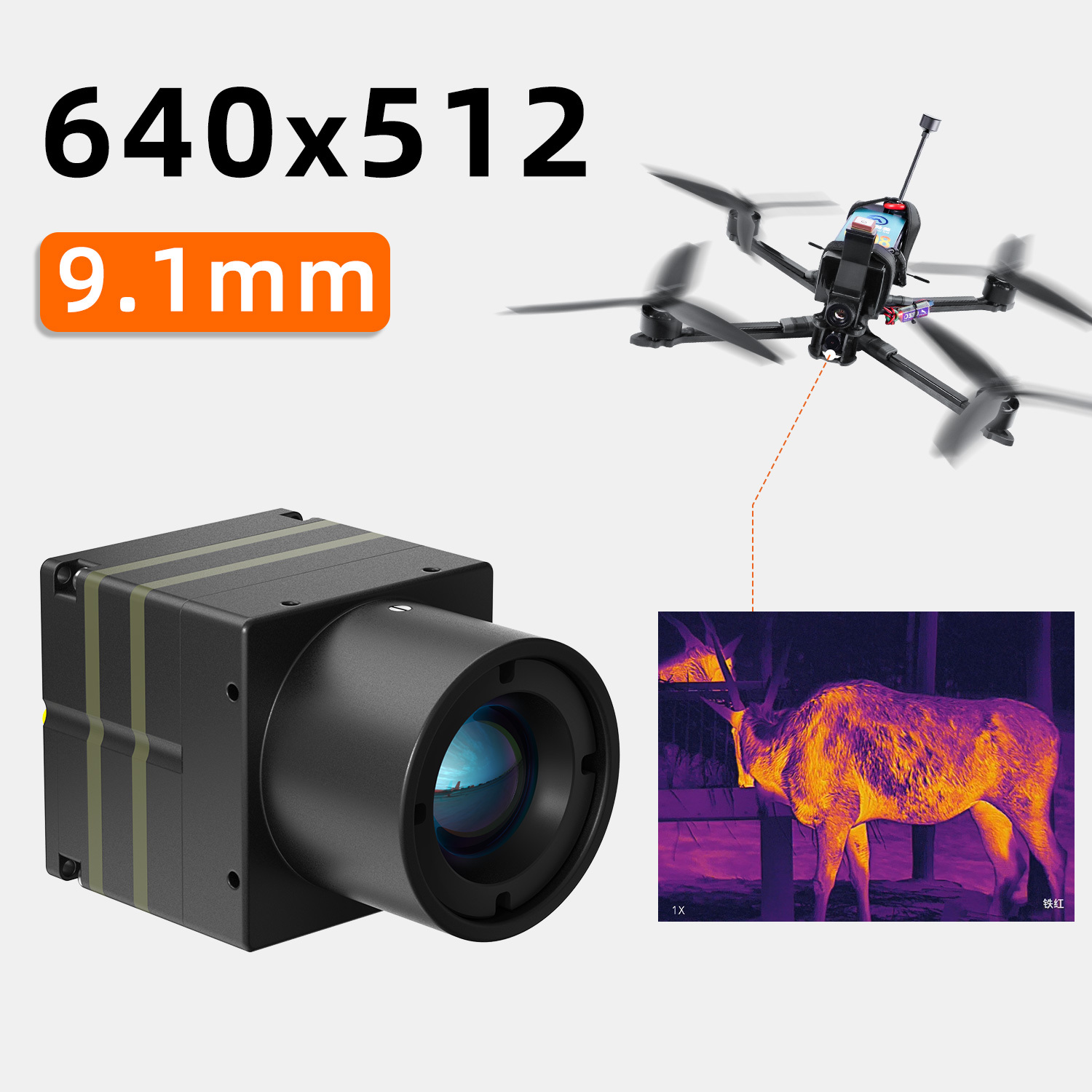

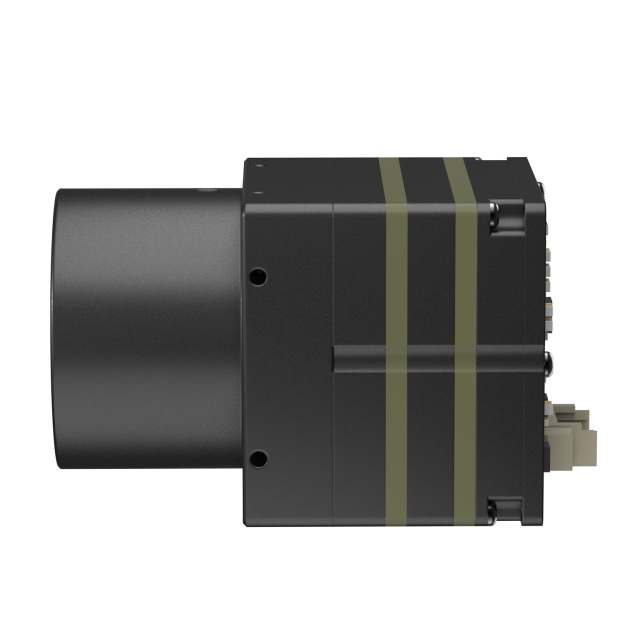

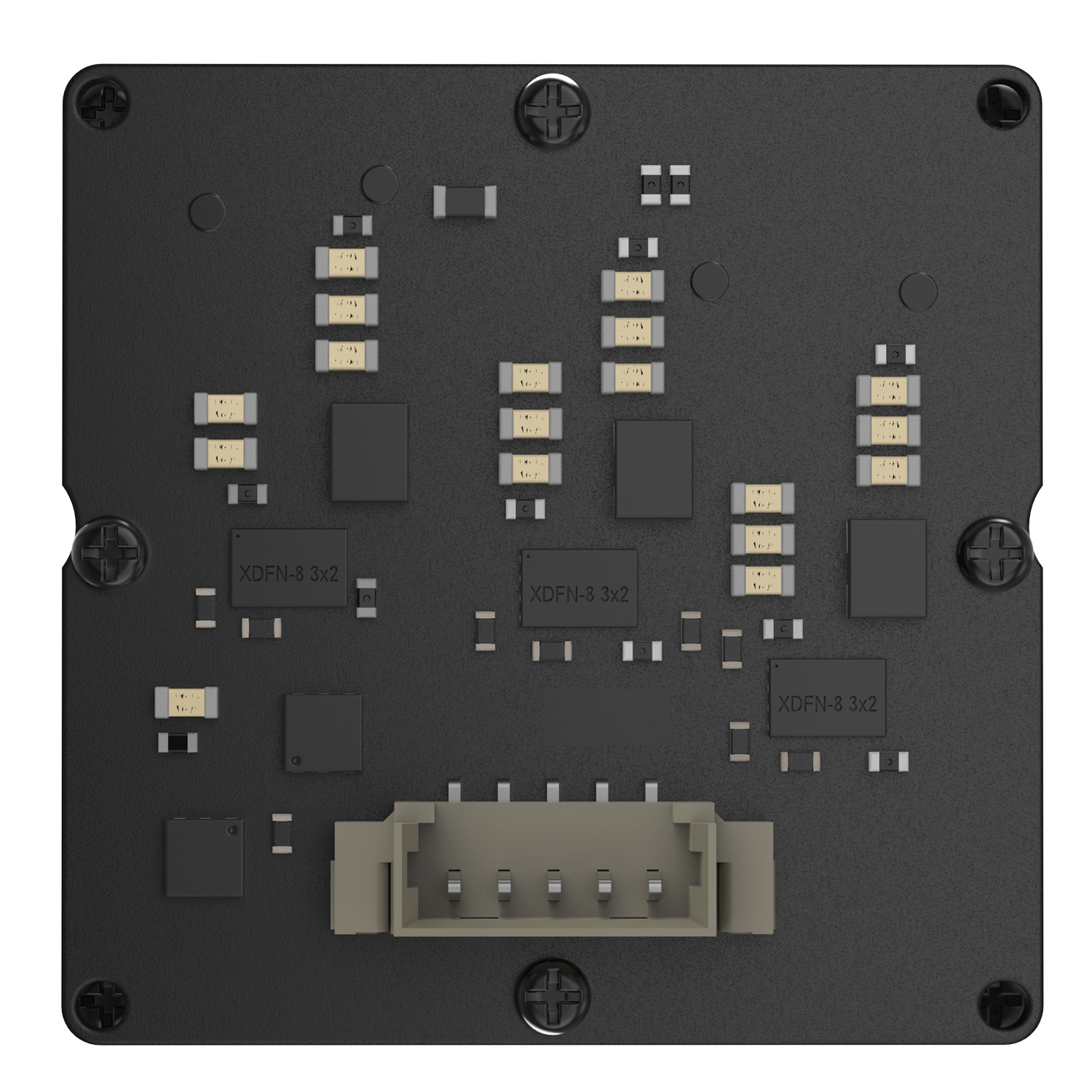

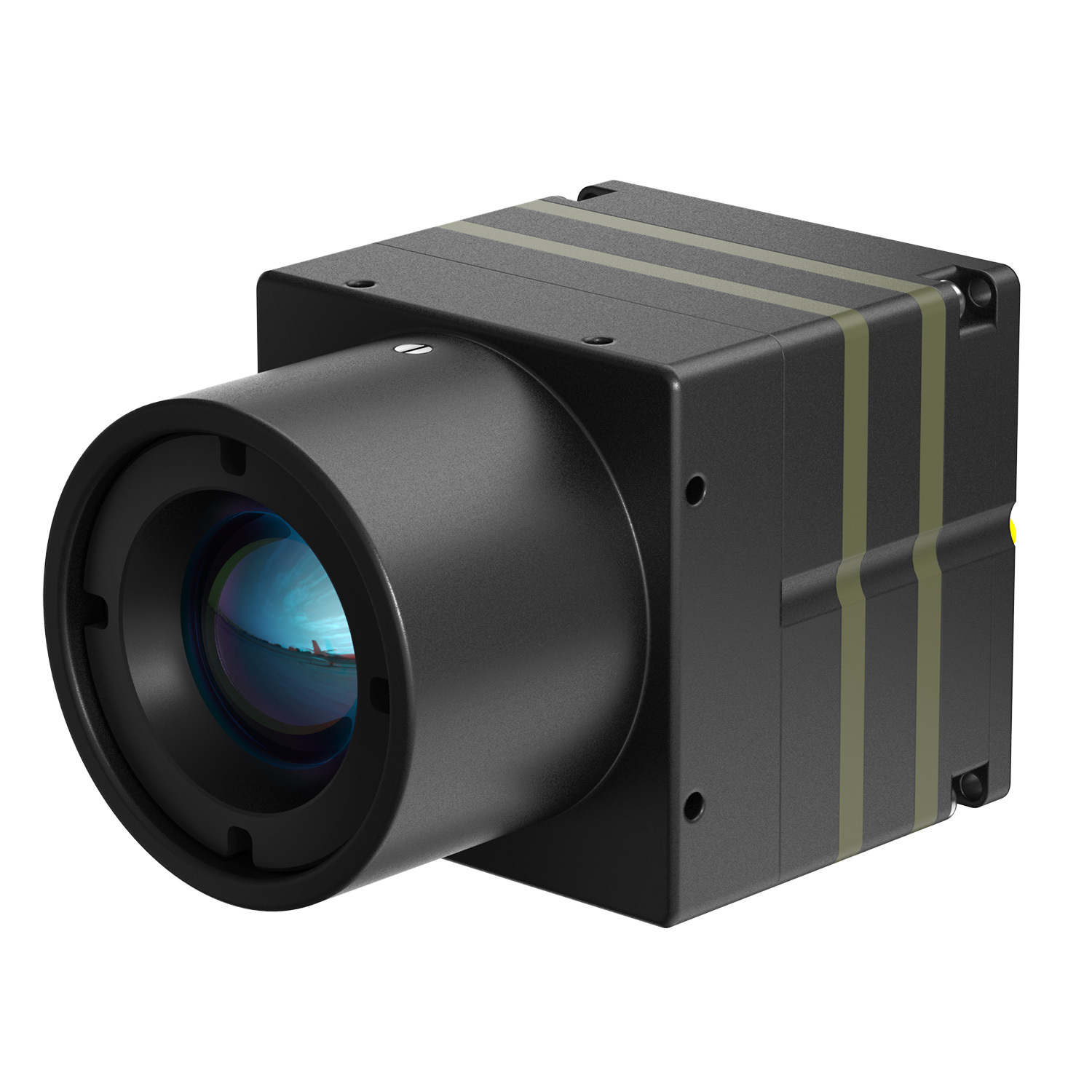

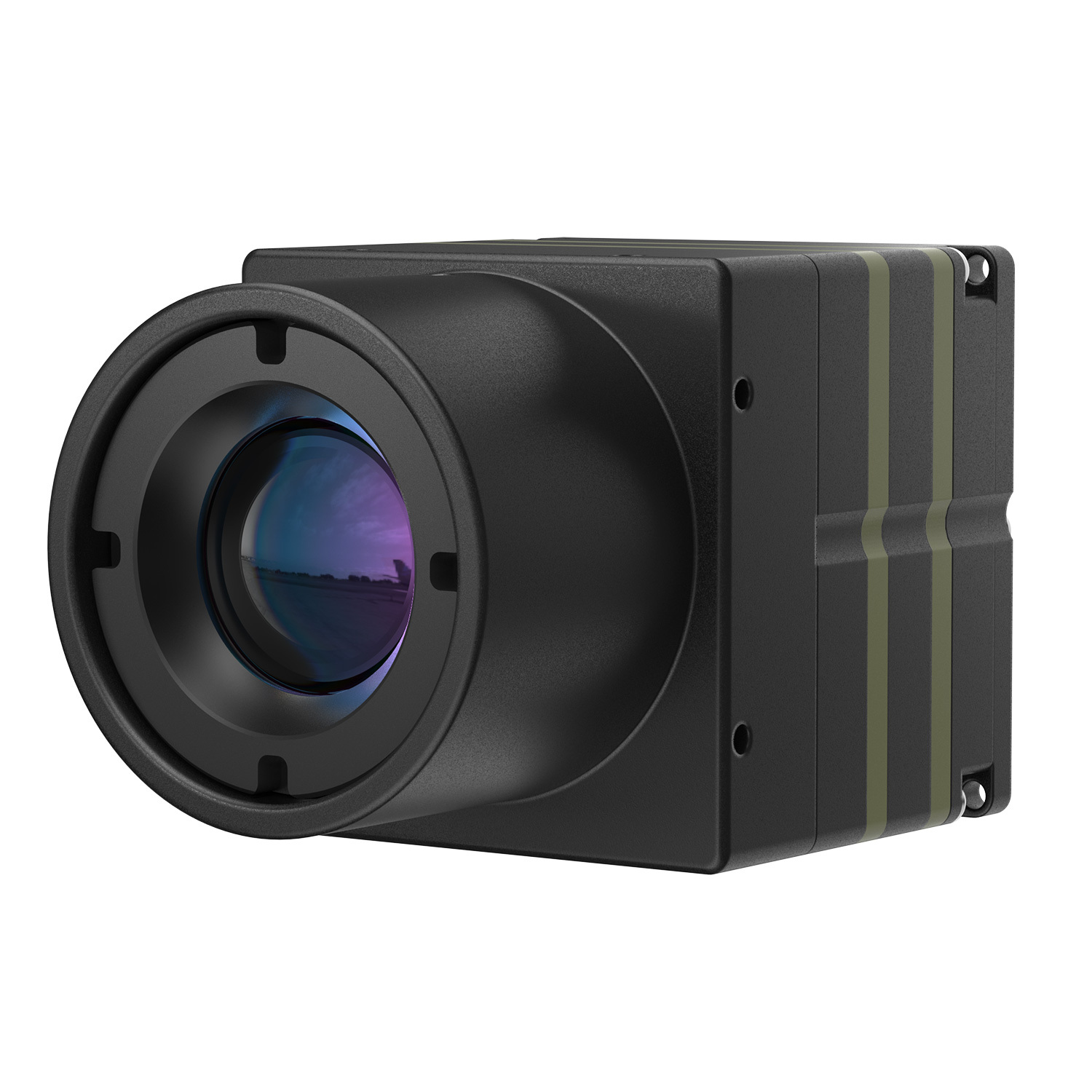

640*512 FPV Uncooled Thermal Imaging Camera Cores Mini Drone Thermal Camera Modules with 9.1mm Lens High-Sensitivity Sensor
