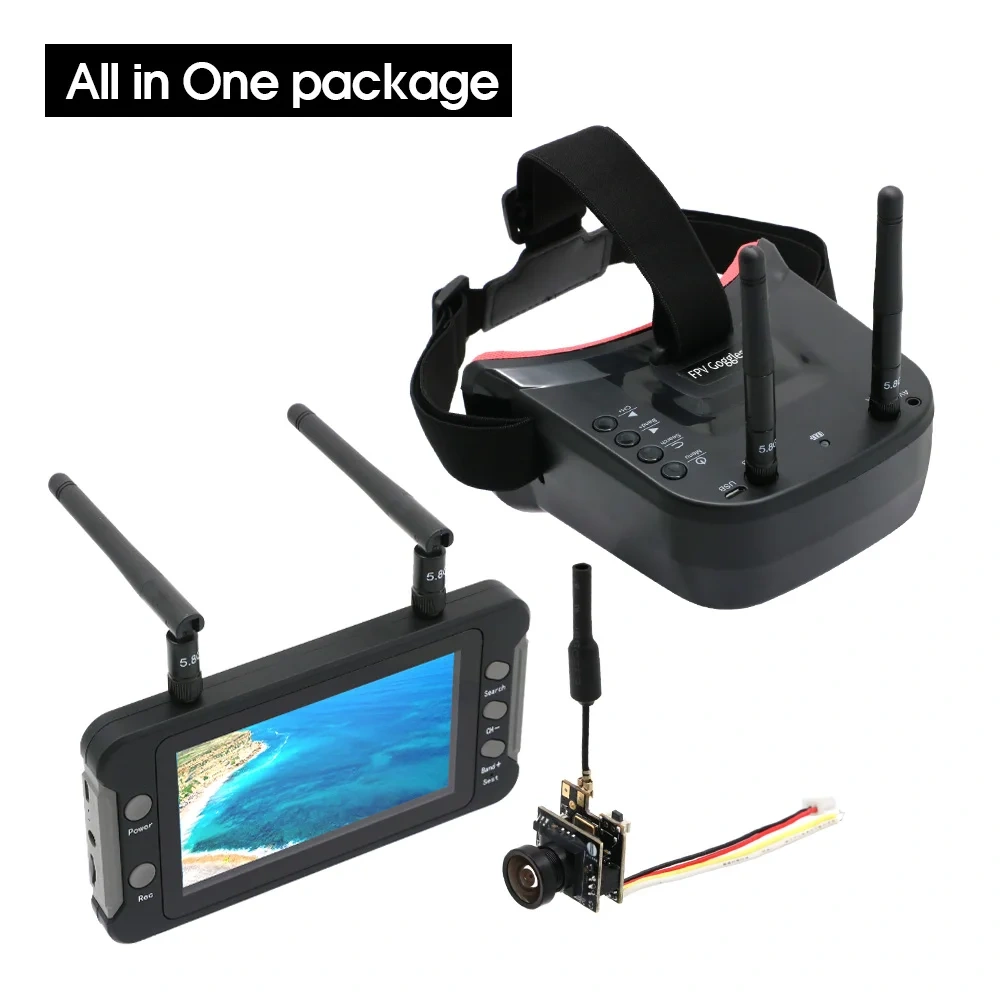

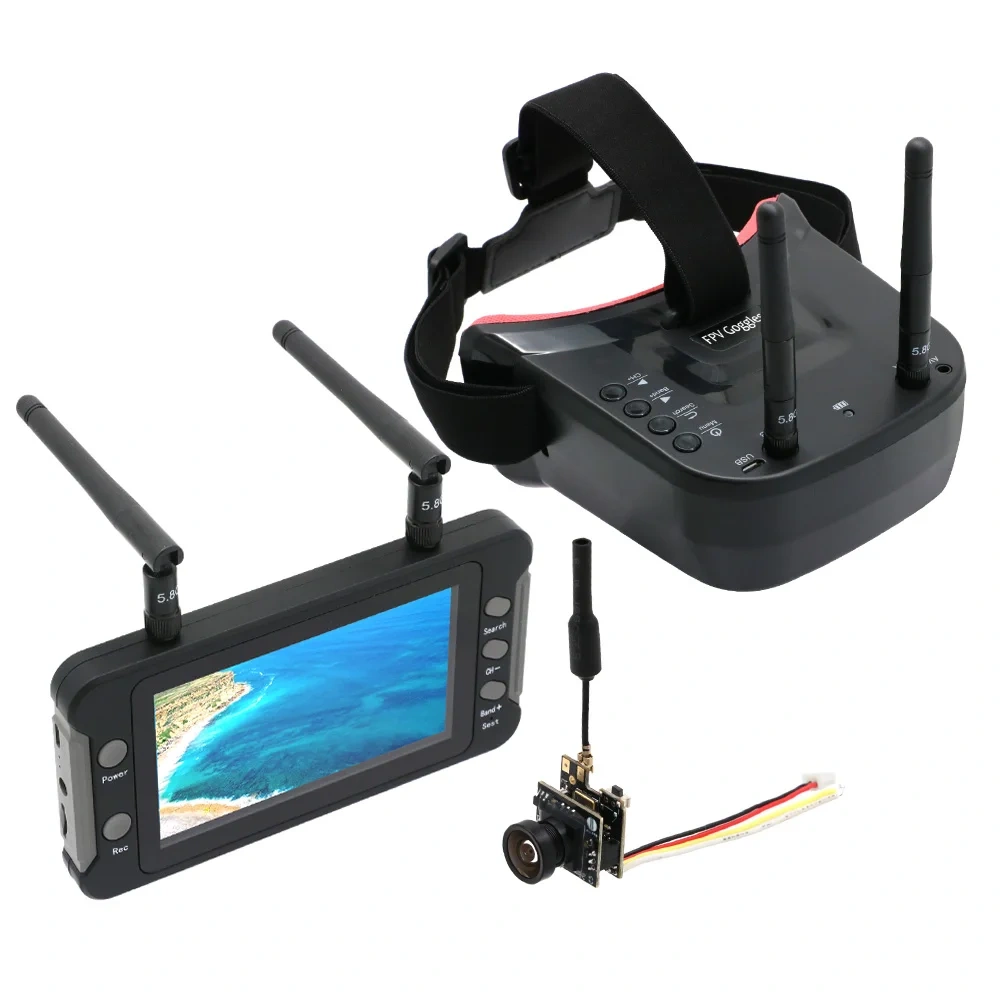

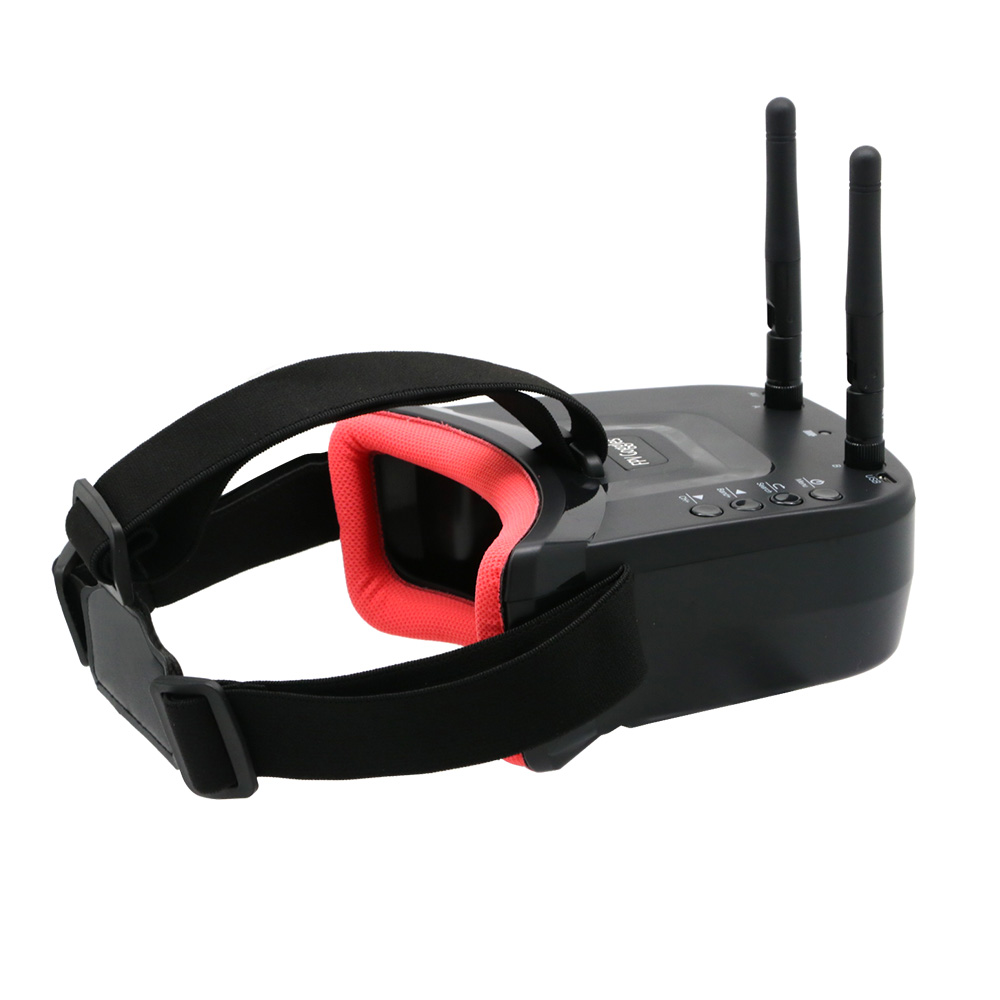

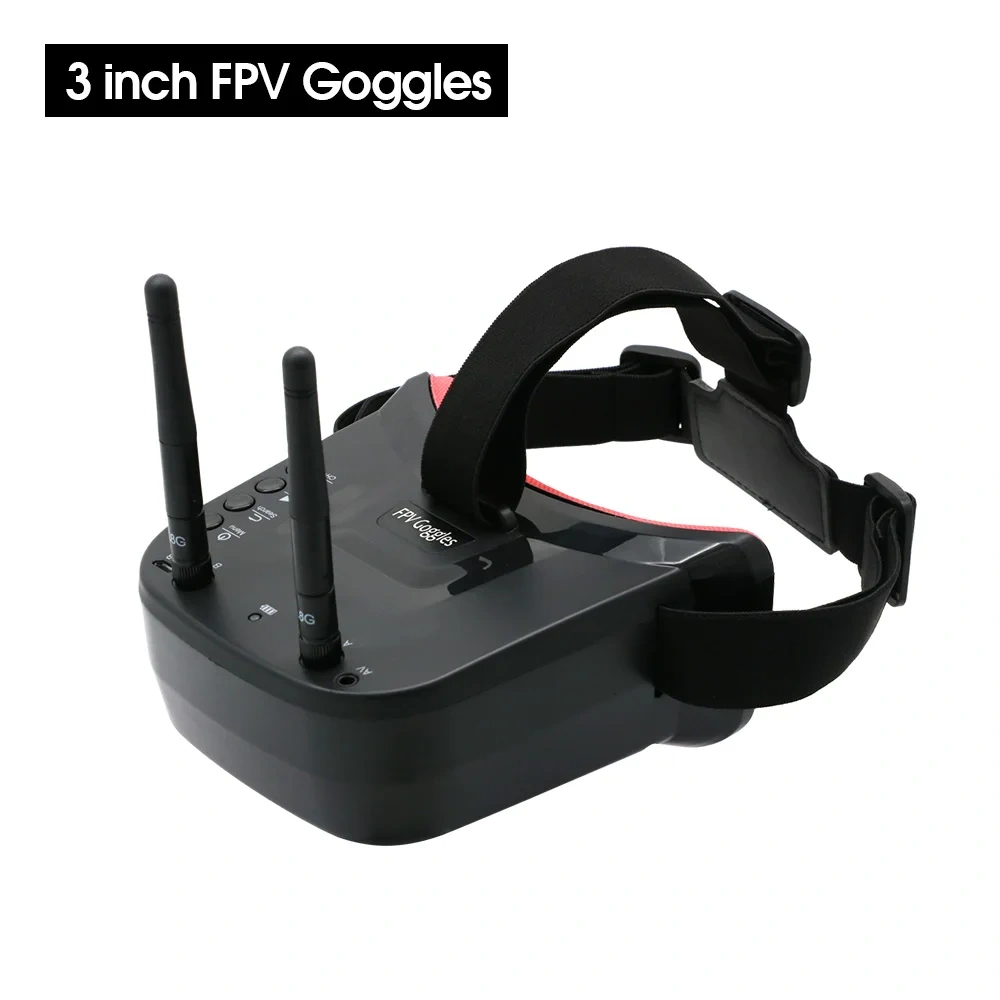

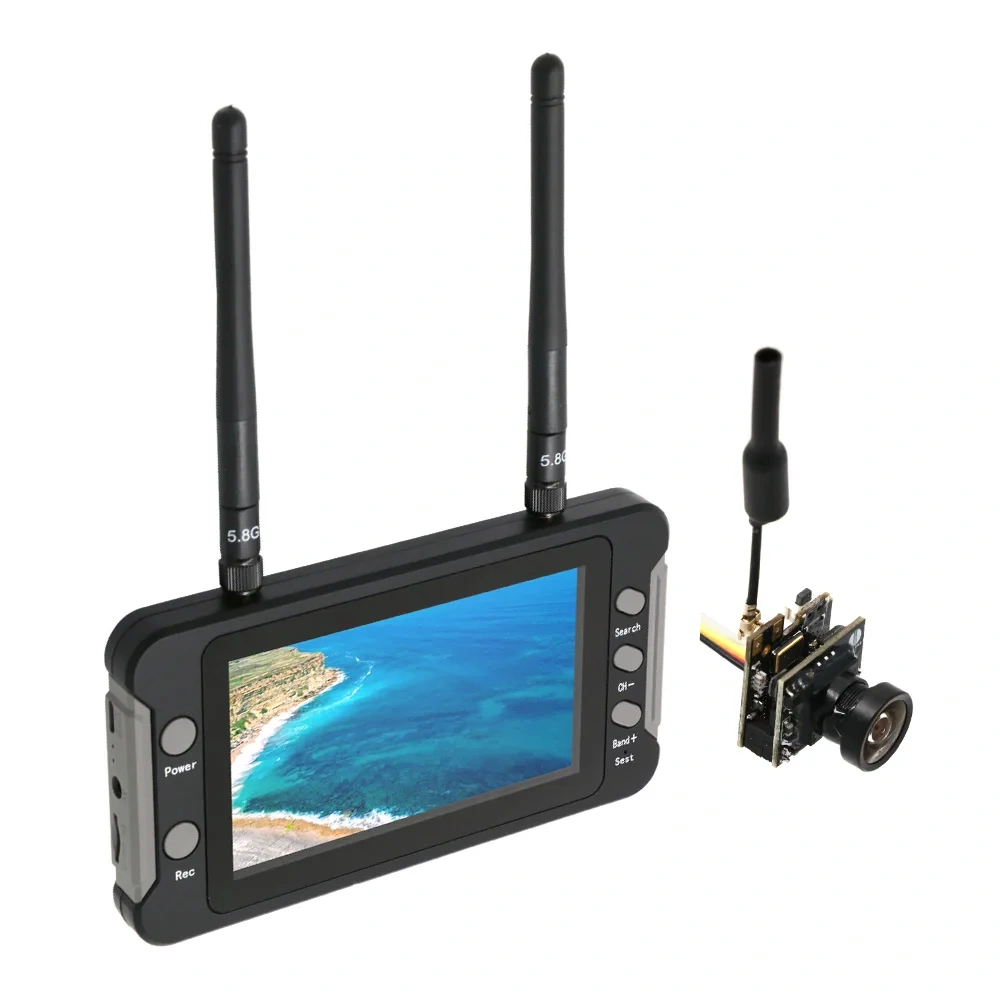

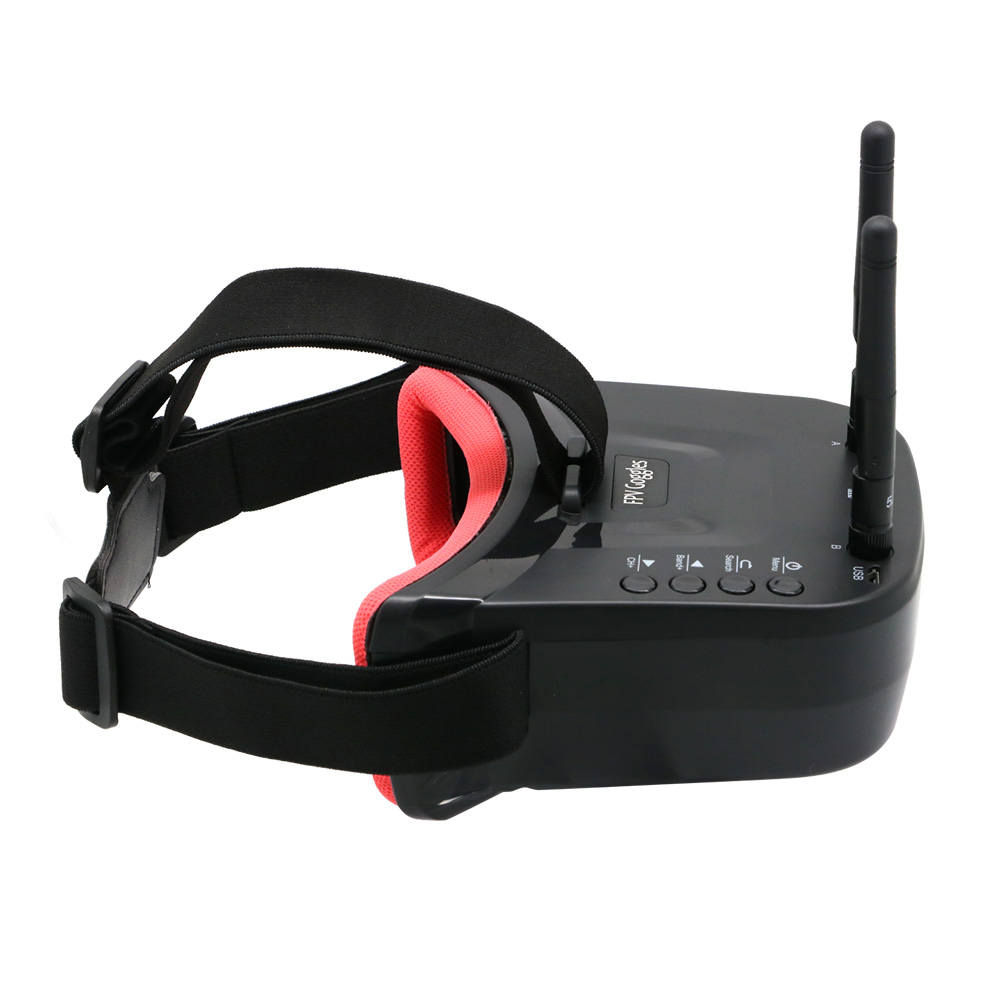

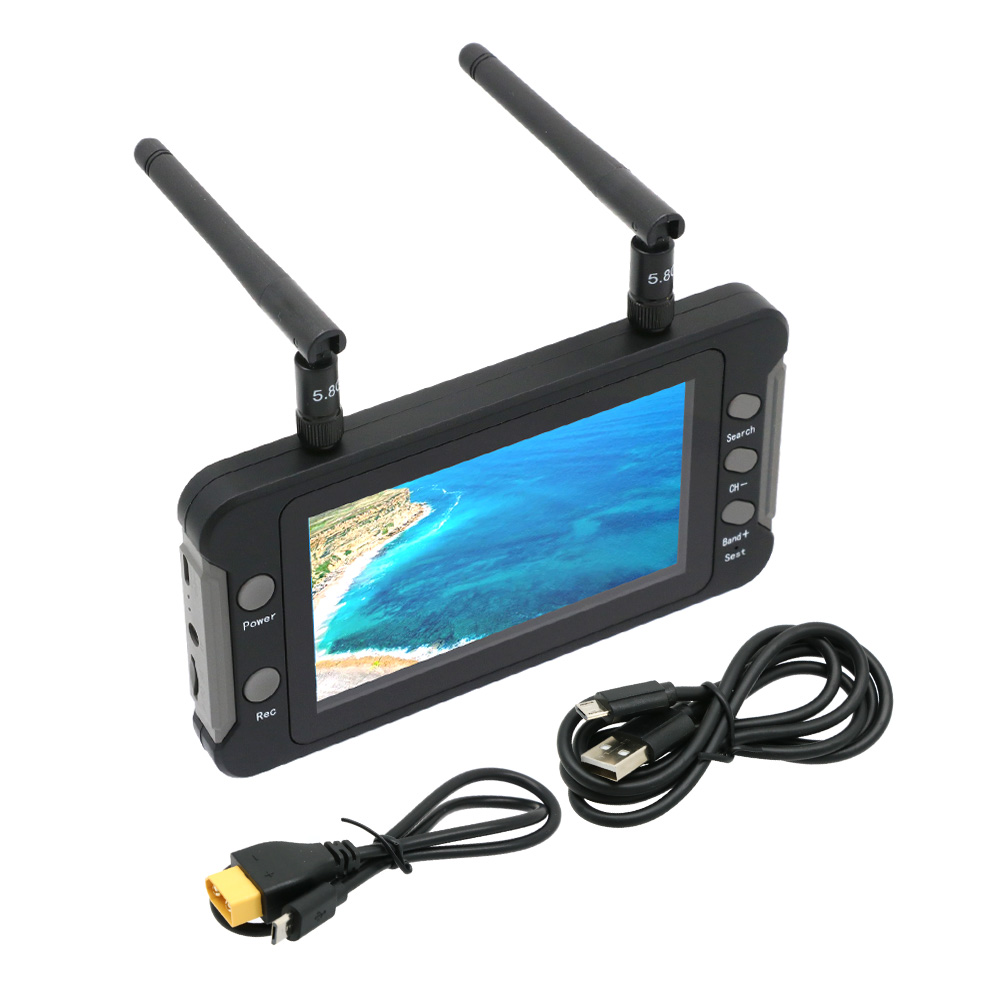

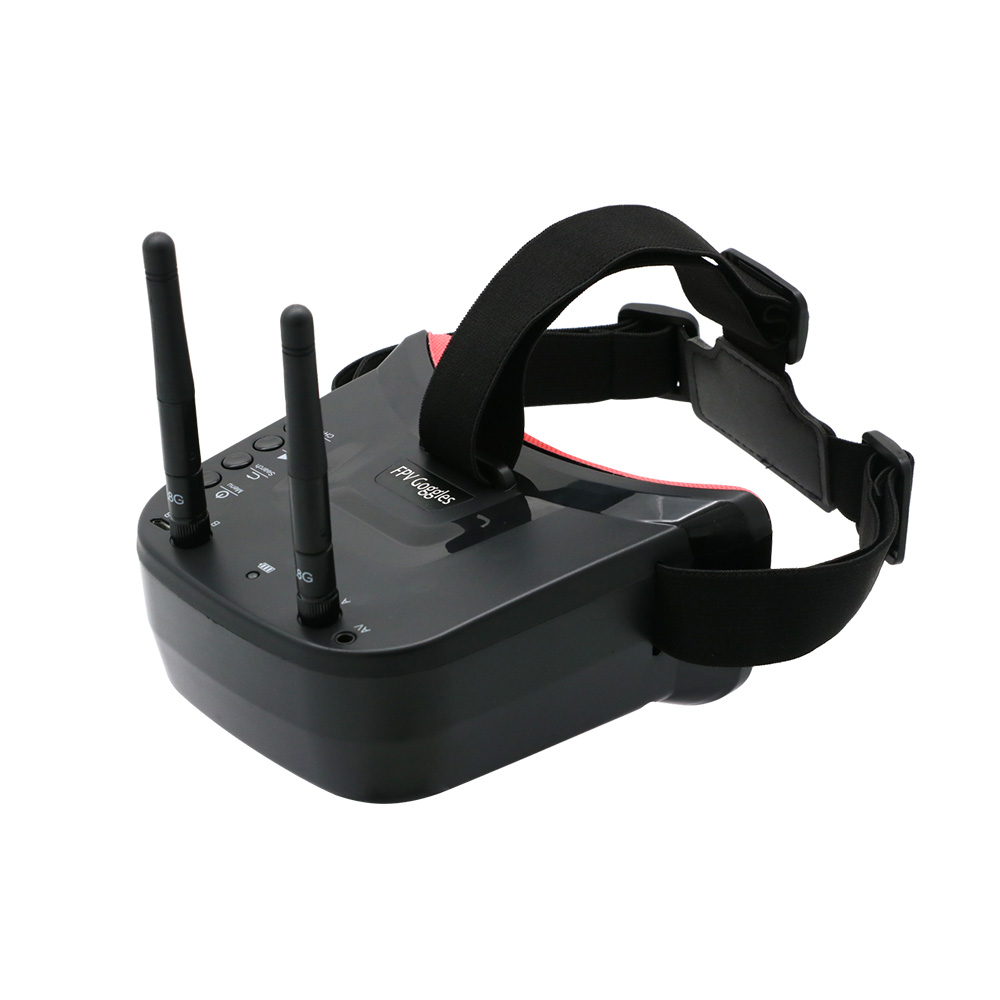

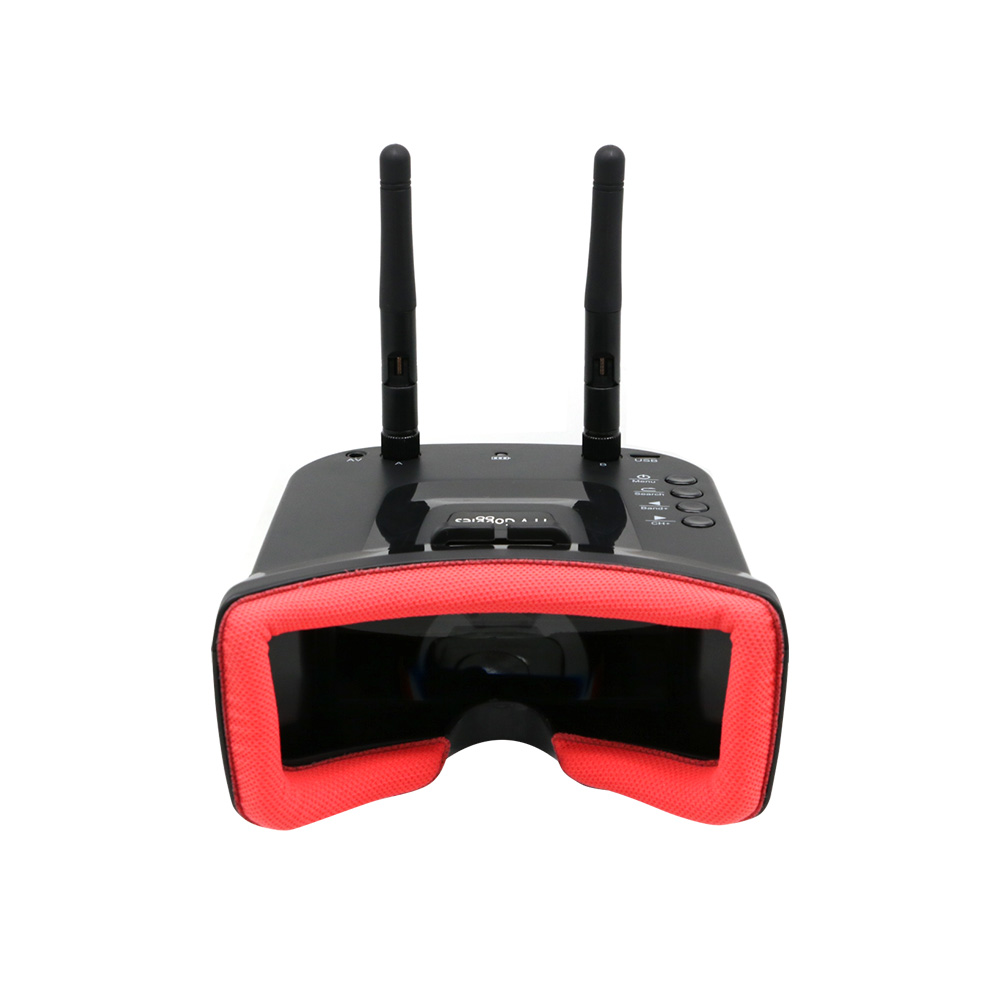

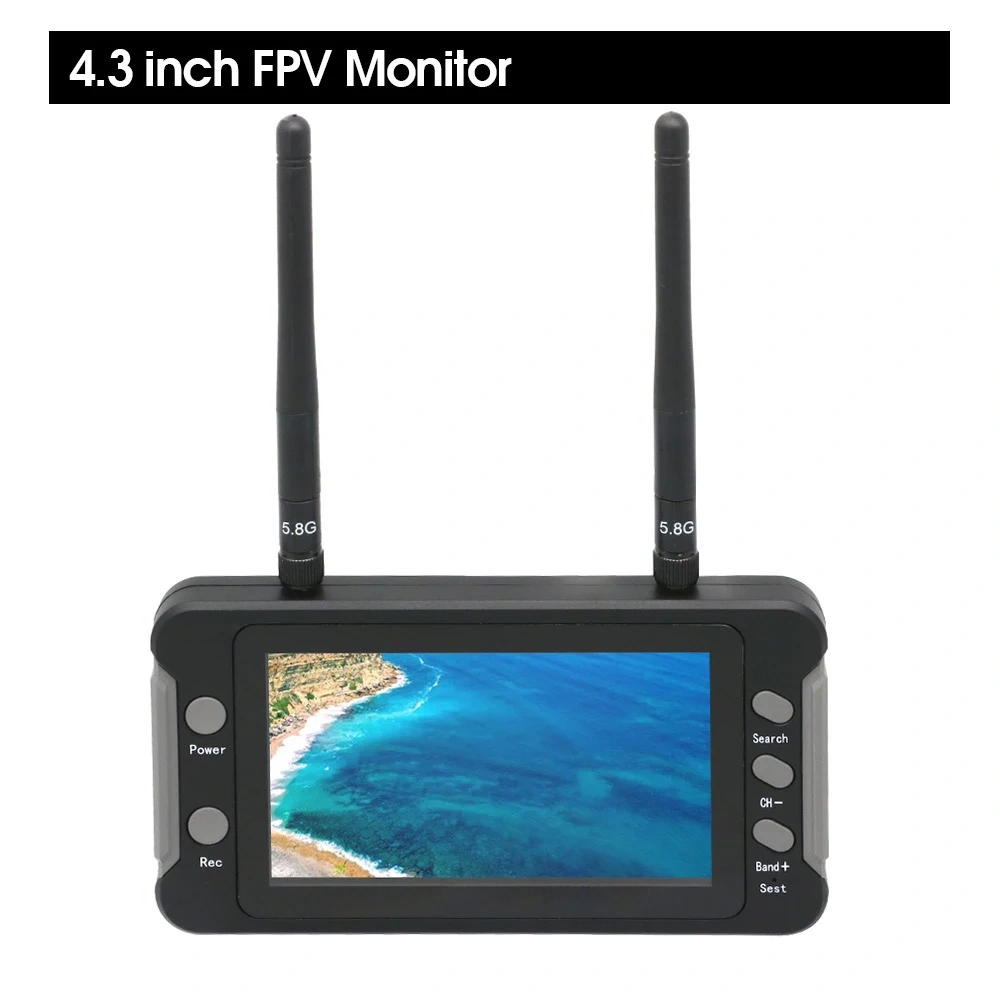

5.8G 40CH Dual Antennas FPV Goggles Video Glasses Headset With 4.3 Inch LCD Display Monitor NTSC/PAL DVR And M8 800TVL Camera

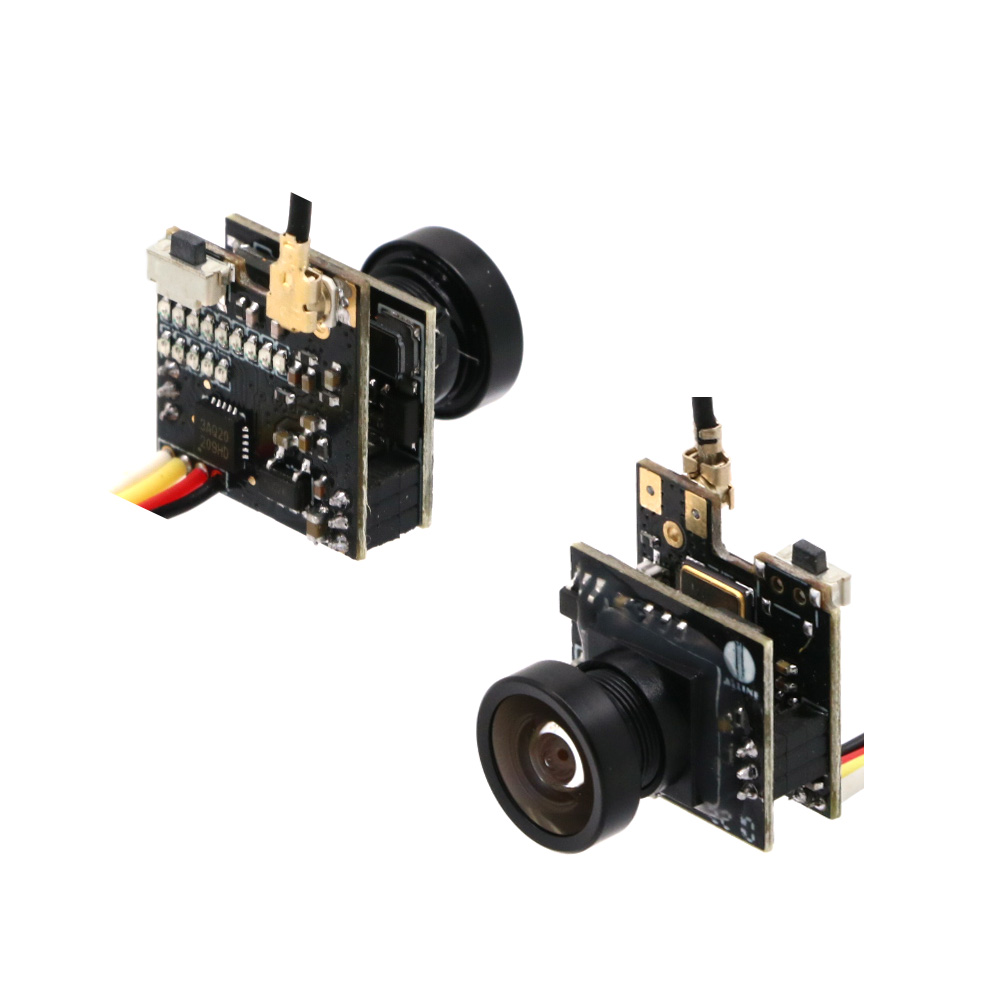

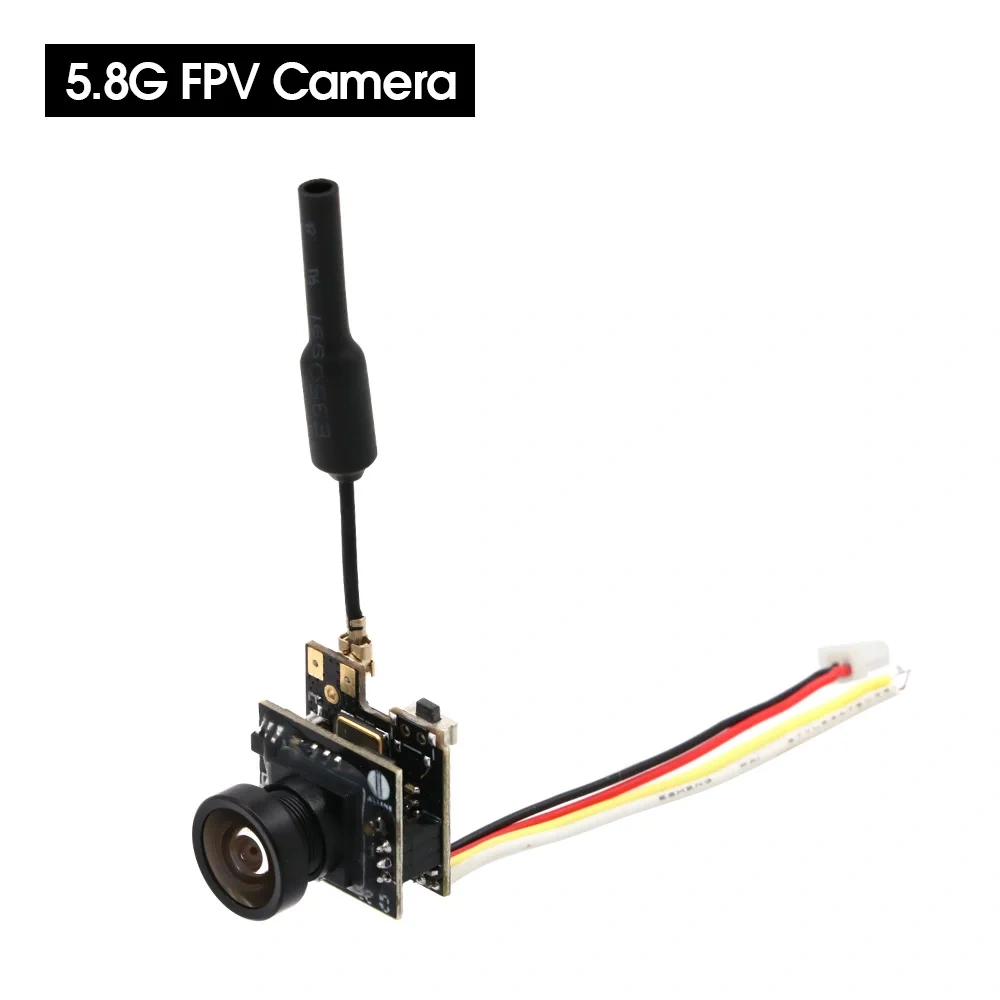

FPV Camera
-Sensor: 1/4 "CMOS;
-Lens: M8 800TVL Lens;
-Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective;
-Format: NTSC / PAL (switchable);
-Power consumption: 380mA@3.7V;
-Power: 3.6-5.5V;
-Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal);
Video Transmitter
Support video format: NTSC/PAL;
Output Impedance: 75Ω;
Output signal strength: 23~24dBm;
Output Power: 25mW;
Wireless Channel: 40CH;
Antenna: RHCP circular polarization clover leaf antenna;
Operating voltage: 3.6V~5.5V;
Current: 100mA;
Audio carrier: 6.5MHz;
Button function
Short press (Apr. 1 sec or less): Change channels 1-8;
Long press (More than 1.5 sec): Change bands A-B-E-F-R;
Long + press (More than 3 sec): Change NTSC/PAL system;
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL);
Body
Weight: 3.6g
Size: 18x16x16mm (without antenna)
Feature:
-AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight;
-150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective;
-Five bands 40 channels with Race band;
