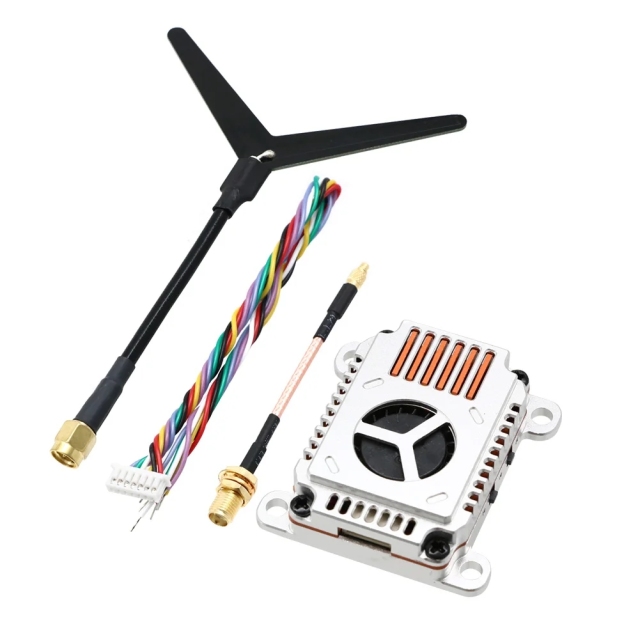

1.2G 2W VTX:
1. When installing the image transmission, it is necessary to leave space to ensure air convection around the module and ensure module heat dissipation; Otherwise, the module overheating protection will be activated, reducing power transmission and even shutting down power transmission.
2. It is recommended to ensure the correct voltage range and positive and negative poles before connecting the power supply to avoid burning out the components.
3. It is recommended to ensure that the RF output terminal has an antenna installed before connecting to the power supply, which can extend the service life of the module.
4. Please read the instruction manual before use, as this can correctly wire and extend the service life of the module.
Input Voltage: 7-36V DC;2-8S
Output Voltage: 5V 1A
12V Input Current: 235mA@Pitmode, 360mA@25mW, 880mA@2000mW,
Channels: 9CH (1060MHz-1380MHz)
Power: PIT/25/2000/mW
Antenna connector: MMCX Smart Audio: IRC-tramp Shell Material: Aluminum
Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(hole) Weight: 16g
